Description
Makita DSS611Z — lxt circular saw cut depth available at Alltools Geelong. Shop our full lxt circular saw cut depth range in Geelong.
Makita

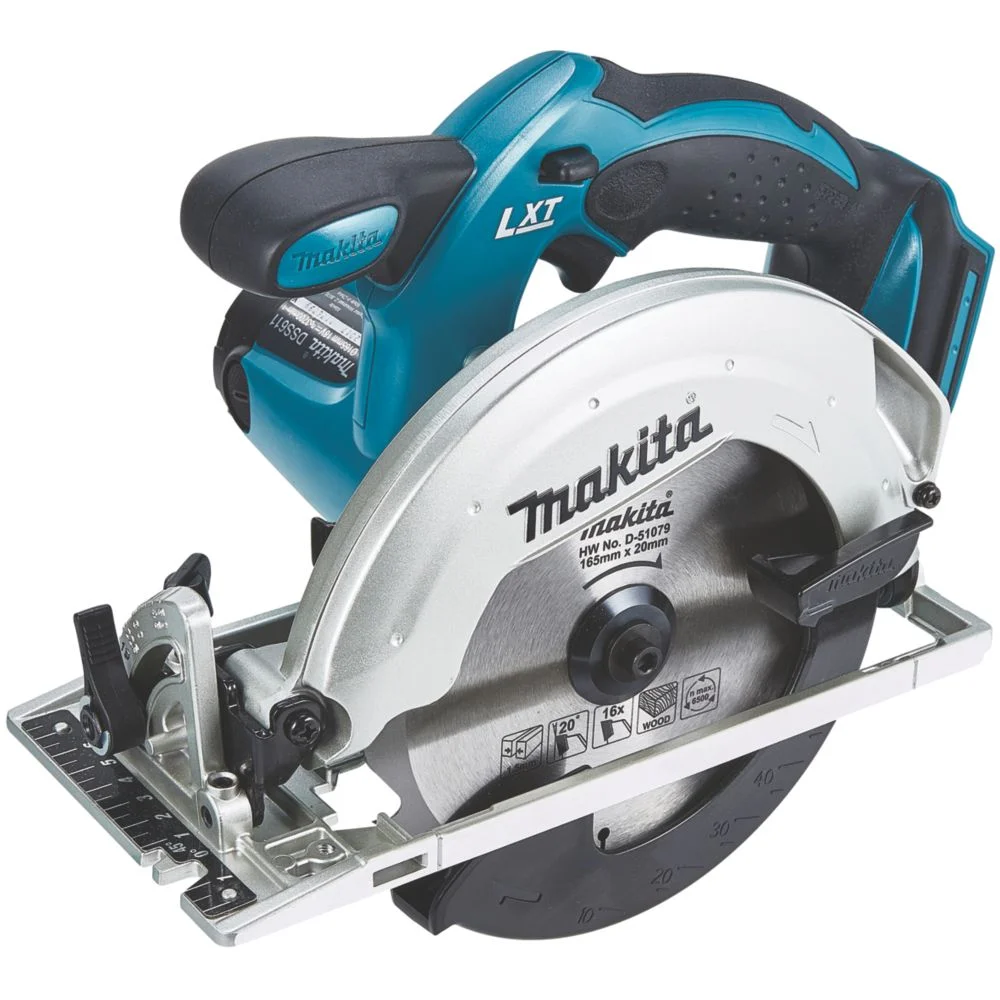

18V LXT 165 mm Circular Saw — 57 mm Cut Depth, 50° Bevel
Part No: DSS611Z | Barcode: 88381663014
Makita’s DSS611Z is an 18V LXT circular saw with a 165 mm blade, 57 mm maximum cut depth at 90°, and bevel capacity up to 50°. The 3,700 RPM motor and lightweight 3.2 kg body make it a capable cordless option for site framing, sheet goods, and general timber cutting.
165 mm Blade
57 mm Cut Depth
3,700 RPM
50° Bevel
3.2 kg
Dust Blower
18V LXT Platform
Suitable For
Timber Framing
Plywood
MDF
Particle Board
Decking
Sheet Goods
Key Features & Benefits
- 57 mm Cutting Depth at 90° — handles standard 45 mm framing timber in a single pass and cuts through 50 mm decking boards without flipping.

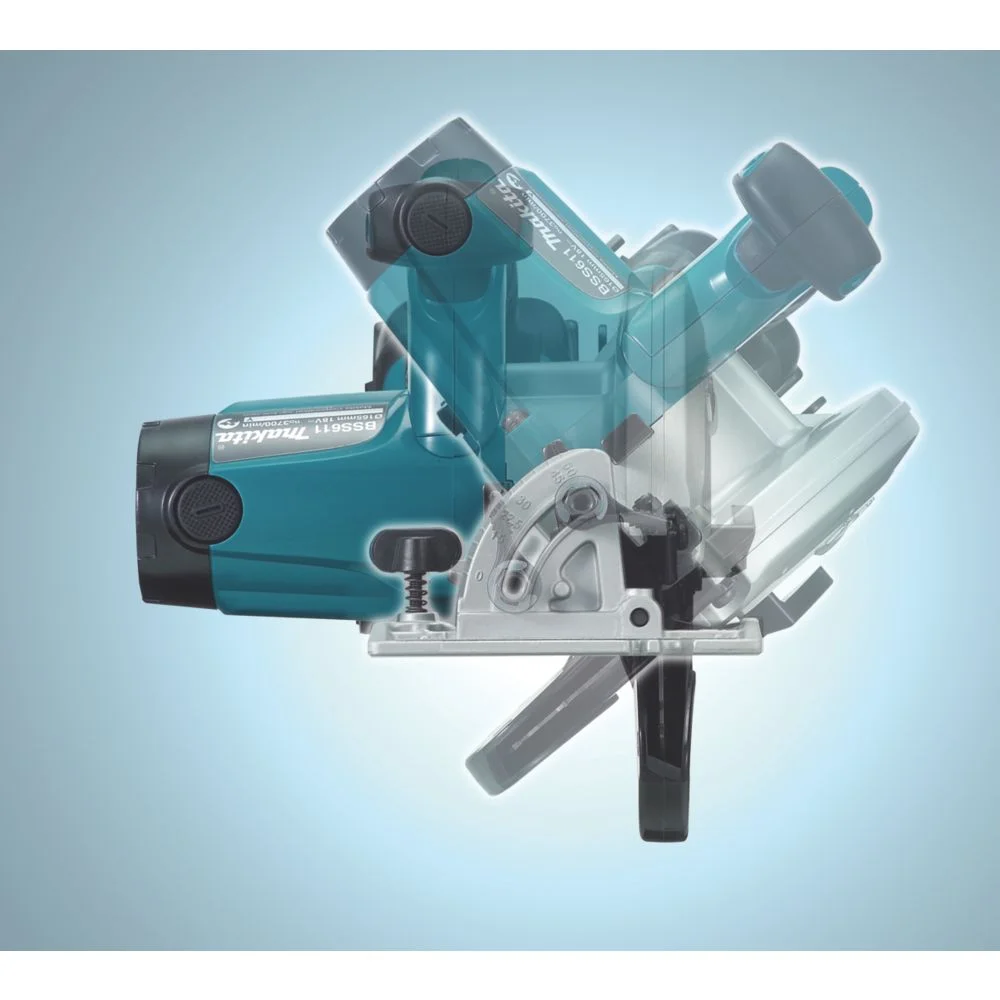

- 50° Bevel Capacity — adjustable bevel cuts beyond 45° for compound mitre work on rafters, hip beams, and custom angle cuts.
- 3,700 RPM No-Load Speed — maintains clean cut quality through hardwood and sheet goods at a speed that prevents burning and tear-out.
- Built-In Dust Blower — keeps the cut line visible by clearing sawdust ahead of the blade, improving accuracy on marked lines.
- Safety Cover with Calibration Marks — embossed markings on the blade guard help with quick depth and angle reference during setup.
- Lightweight 3.2 kg Body — comfortable for extended cutting sessions and overhead work where heavier saws cause fatigue.
When to Use This Circular Saw
The DSS611Z is a straightforward cordless circular saw for general site work — framing, decking, sheeting, and general timber cutting. It does not have the brushless motor or guide rail compatibility of premium models, but at a lower price point it is an excellent workhorse for trades who need reliable cordless cutting without the extra features. The 57 mm depth handles most common timber dimensions. For guide rail work or brushless efficiency, step up to the DHS680Z or DHS661ZU. For the Makita LXT user who already has batteries, this saw slots into the existing platform at minimal cost.
Authorised Australian Dealer — This product is sourced directly from Makita Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Voltage | 18V LXT |
| Blade Diameter | 165 mm |
| Arbor Size | 20 mm |
| Max Cut Depth at 90° | 57 mm |
| Max Cut Depth at 45° | 40 mm |
| Max Cut Depth at 50° | 36 mm |
| Bevel Range | 0–50° |
| No-Load Speed | 3,700 RPM |
| Weight (bare) | 3.2 kg |
| Motor | Brushed |
