TOOLMASTER

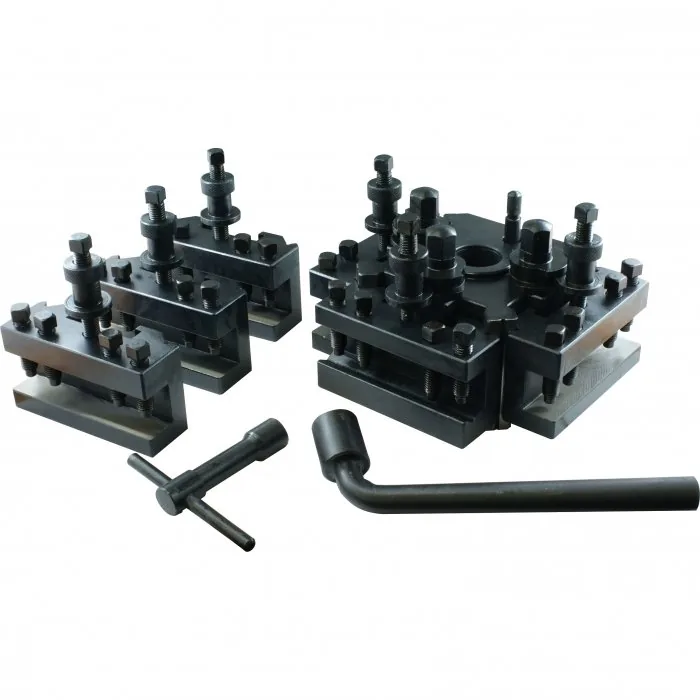

Quick Change Toolpost — BR-BP, 202mm Lathe Centre Height
Part No: L294 | Barcode: 9344195006890 | Model: BR-BP
TOOLMASTER BR-BP Quick Change Toolpost (202mm Lathe Centre Height). Manufactured from carbonized and hardened steel. Italian design style.
Model BR-BP
202mm Lathe Centre Height
Lathe Swing: 404 mm
Key Features & Benefits
- All bearing surfaces are precision ground to ensure rigidity
- Handy lathe accessory for tool rooms and general engineering shops
- Ease of operation cuts set-up time by 90%
- No shims are required to adjust tools to correct centre height
- Easily fitted to most centre lathes
- Please Note: Some machining required to suit your lathe
About This Product
Manufactured from carbonized and hardened steel. Italian design style. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L294) for collection in store.
In the Box
- 5 x Square Tool Holders – for 25mm tools
- 1 x Vee Tool Holders – for boring bars
Product Specifications
| Specification | Detail |
|---|---|
| Lathe Centre Height (mm) | 202 |
| Lathe Swing (mm) | 404 |
| A (mm) | 15 |
| B (mm) | 13 |
| C (mm) | 90 |
| D (mm) | 115 |
| H (mm) | 38 – 53 |
| h (mm) | 75 |
| S (mm) | 28 |
| T (mm) | 25 |
| Number of Sides (No.) | 3 |
| Number of Holders (No.) | 6 |
| Nett Weight (kg) | 17.5 |
