TOOLMASTER

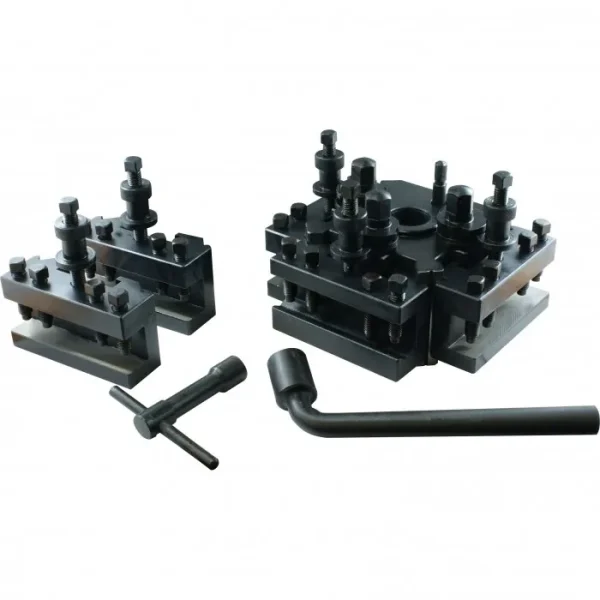

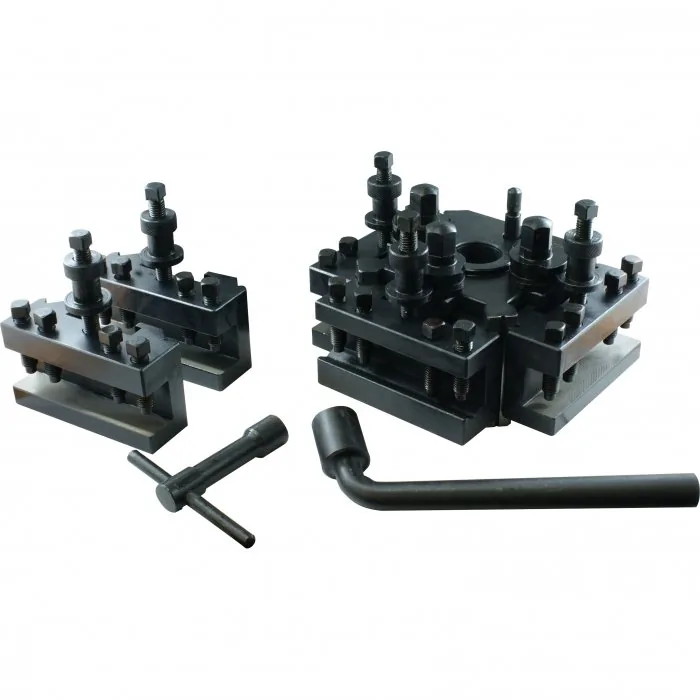

Quick Change Toolpost — Model C, 280mm Lathe Centre Height
Part No: L297 | Barcode: 9344195006937 | Model: Model C
TOOLMASTER Model C Quick Change Toolpost (280mm Lathe Centre Height). Manufactured from carbonized and hardened steel. Italian design style.
Model Model C
280mm Lathe Centre Height
Lathe Swing: 560 mm
Key Features & Benefits
- All bearing surfaces are precision ground to ensure rigidity
- Handy lathe accessory for tool rooms and general engineering shops
- Ease of operation cuts set-up time by 90%
- No shims are required to adjust tools to correct centre height
- Easily fitted to most centre lathes
- Please Note: Some machining required to suit your lathe
About This Product
Manufactured from carbonized and hardened steel. Italian design style. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L297) for collection in store.
In the Box
- 4 x Square Tool Holders – for 32mm tools
- 1 x Vee Tool Holders – for boring bars
Product Specifications
| Specification | Detail |
|---|---|
| Lathe Centre Height (mm) | 280 |
| Lathe Swing (mm) | 560 |
| A (mm) | 21 |
| B (mm) | 19 |
| C (mm) | 108 |
| D (mm) | 145 |
| H (mm) | 51 – 72 |
| h (mm) | 94 |
| S (mm) | 38 |
| T (mm) | 32 |
| Number of Sides (No.) | 3 |
| Number of Holders (No.) | 5 |
| Nett Weight (kg) | 26 |
