TOOLMASTER

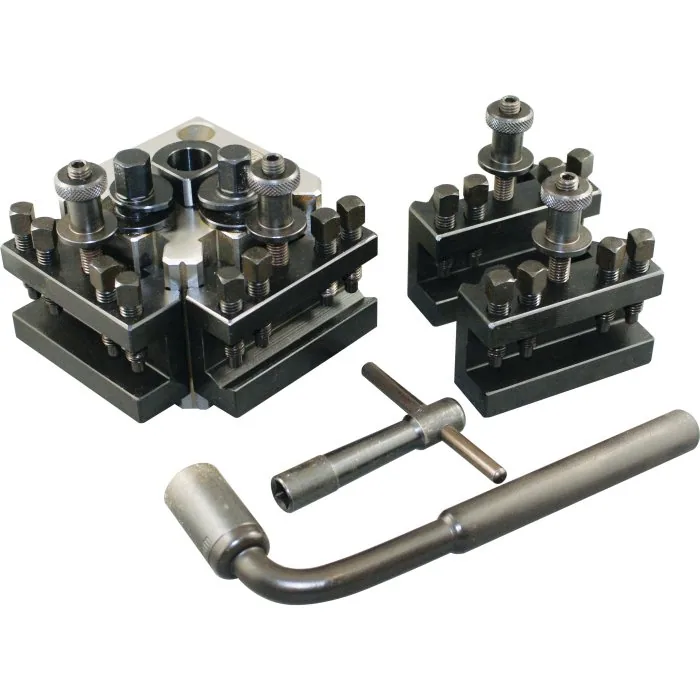

Quick Change Toolpost — QA-150, 150 – 170mm Lathe Centre Height
Part No: L295 | Barcode: 9344195013416 | Model: QA-150
TOOLMASTER QA-150 Quick Change Toolpost (150 – 170mm Lathe Centre Height). Manufactured from carbonized and hardened steel. Italian design style.
Model QA-150
150 – 170mm Lathe Centre Height
Lathe Swing: 300 – 340 mm
Key Features & Benefits
- All bearing surfaces are precision ground to ensure rigidity
- Handy lathe accessory for tool rooms and general engineering shops
- Ease of operation cuts set-up time by 90%
- No shims are required to adjust tools to correct centre height
- Easily fitted to most centre lathes
- Please Note: Some machining required to suit your lathe
About This Product
Manufactured from carbonized and hardened steel. Italian design style. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L295) for collection in store.
In the Box
- 3 x Square Tool Holders – for 16mm tools
- 1 x Vee Tool Holders – for boring bars
Product Specifications
| Specification | Detail |
|---|---|
| Lathe Centre Height (mm) | 150 – 170 |
| Lathe Swing (mm) | 300 – 340 |
| A (mm) | 15 |
| B (mm) | 20 |
| C (mm) | 60 |
| D (mm) | 74 |
| H (mm) | 28 – 41 |
| h (mm) | 60 |
| S (mm) | 24 |
| T (mm) | 16 |
| Number of Sides (No.) | 2 |
| Number of Holders (No.) | 4 |
| Nett Weight (kg) | 6.2 |
