TOOLMASTER

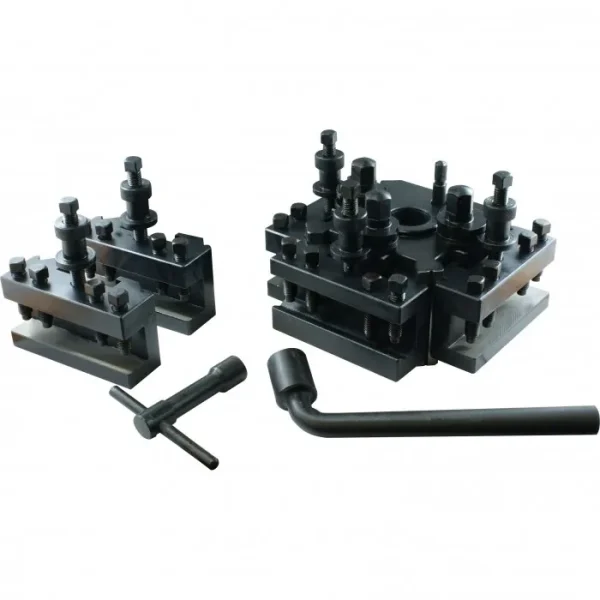

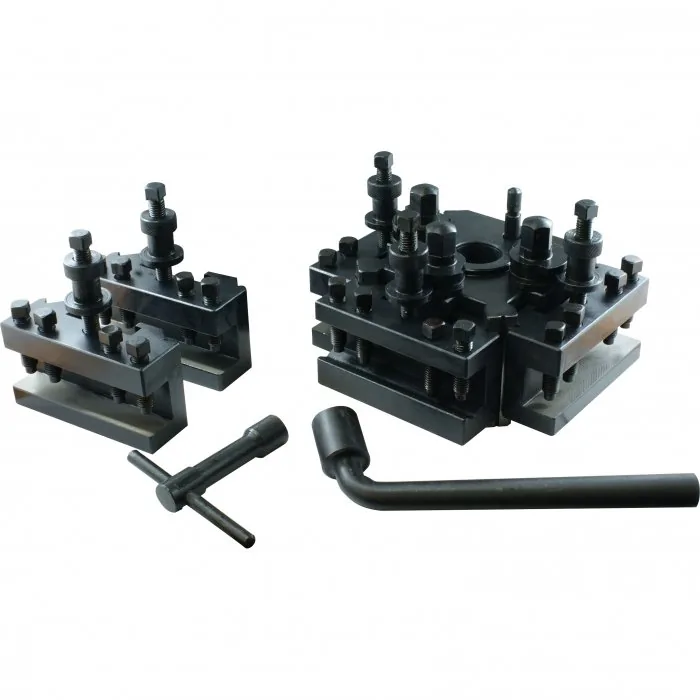

Quick Change Toolpost — Model B, 230mm Lathe Centre Height
Part No: L296 | Barcode: 9344195006913 | Model: Model B
TOOLMASTER Model B Quick Change Toolpost (230mm Lathe Centre Height). Manufactured from carbonized and hardened steel. Italian design style.
Model Model B
230mm Lathe Centre Height
Lathe Swing: 460 mm
Key Features & Benefits
- All bearing surfaces are precision ground to ensure rigidity
- Handy lathe accessory for tool rooms and general engineering shops
- Ease of operation cuts set-up time by 90%
- No shims are required to adjust tools to correct centre height
- Easily fitted to most centre lathes
- Please Note: Some machining required to suit your lathe
About This Product
Manufactured from carbonized and hardened steel. Italian design style. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L296) for collection in store.
In the Box
- 4 x Square Tool Holders – for 32mm tools
- 1 x Vee Tool Holders – for boring bars
Product Specifications
| Specification | Detail |
|---|---|
| Lathe Centre Height (mm) | 230 |
| Lathe Swing (mm) | 460 |
| A (mm) | 18 |
| B (mm) | 15 |
| C (mm) | 100 |
| D (mm) | 125 |
| H (mm) | 47 – 65 |
| h (mm) | 85 |
| S (mm) | 30 |
| T (mm) | 32 |
| Number of Sides (No.) | 3 |
| Number of Holders (No.) | 5 |
| Nett Weight (kg) | 22 |
