TOOLMASTER
Quick Change Toolpost – 40 Position — Model C3, 200 – 350mm Lathe Centre Height
Part No: L2996 | Barcode: 9344195010095 | Model: Model C3

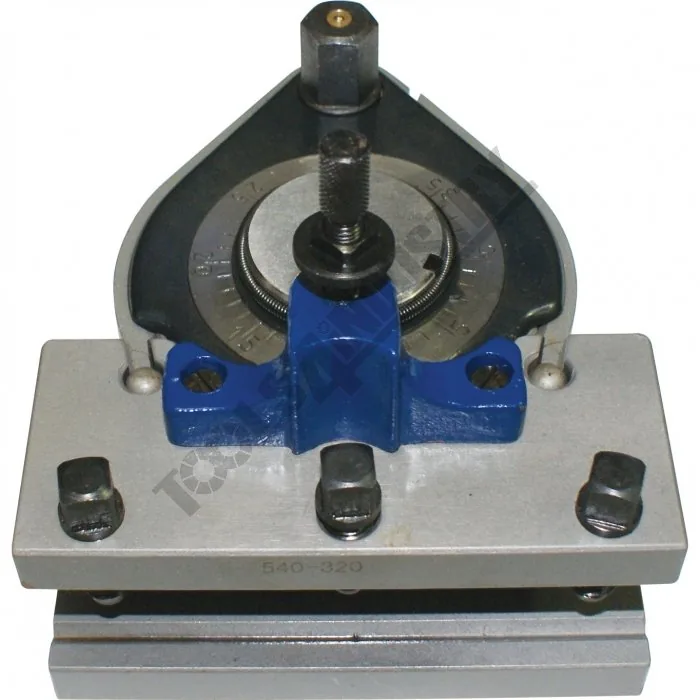

TOOLMASTER Model C3 Quick Change Toolpost – 40 Position (200 – 350mm Lathe Centre Height). 40 Position European style quick change toolpost. Basic body and tool holders are made of high quality steel which is hardened and ground.
Model Model C3
200 – 350mm Lathe Centre Height
Lathe Swing: 400 – 700 mm
Key Features & Benefits

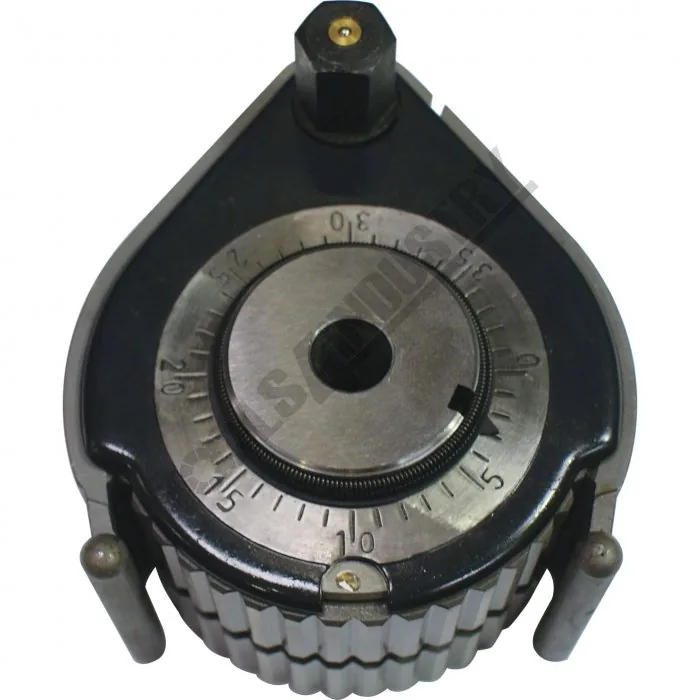

- The system allows a repeat accuracy of 0.01mm with 40 possible angular positions of the tool holder
- Body and tool holder are both made of high quality steel which is hardened and ground
- Tool holder is clamped against the body by an eccentric bolt
- Supplied with 3 square tool holders and one vee tool
- Please Note: Some machining required to suit your lathe holder
About This Product
40 Position European style quick change toolpost. Basic body and tool holders are made of high quality steel which is hardened and ground. The tool holders are clamped against the body with an eccentric bolt. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L2996) for collection in store.
In the Box
- 3 x square tool holders
- 1 x Vee tool holder
Product Specifications
| Specification | Detail |
|---|---|
| Lathe Centre Height (mm) | 200 – 350 |
| Lathe Swing (mm) | 400 – 700 |
| B (mm) | 16 |
| C (mm) | 73-103 |
| D (mm) | 192-202 |
| H (mm) | 47-91 |
| h (mm) | 107 |
| S (mm) | 40 |
| T (mm) | 32 |
| Number of Holders (No.) | 4 |
| Nett Weight (kg) | 14.3 |
