Milwaukee M12FIR38LR-O — fuel extended reach ratchet 3/8in available at Alltools Geelong.
Milwaukee

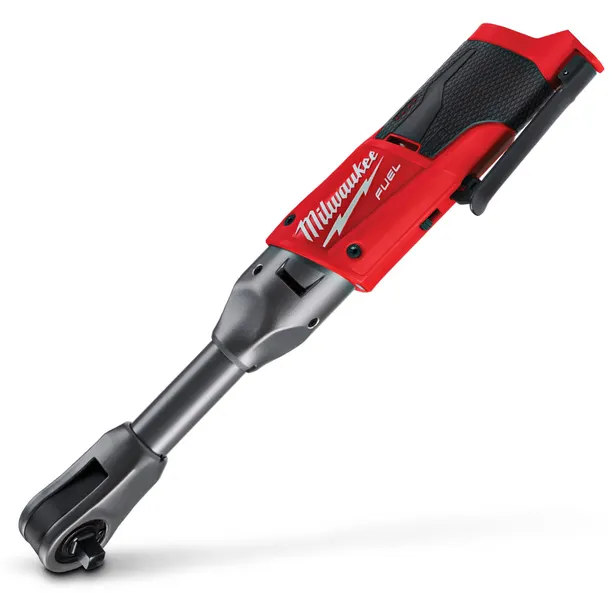

M12FIR38LR-O FUEL Extended Reach Ratchet 3/8in 12V
Part No: M12FIR38LR-O | Barcode: 4892210183538
M12 FUEL brushless 3/8-inch extended reach ratchet delivering 75Nm of torque at 200 RPM. At 363mm overall length — 82mm longer than the standard M12FIR38-0 — it reaches deeper into engine bays and behind panels. The 19.3mm low-profile head fits into tight spaces, and the included 1/4-inch adaptor adds socket versatility.
M12 FUEL
Brushless
3/8″ Drive
75 Nm
Extended Reach
19.3 mm Head
Suitable For
Automotive
Engine Bays
Deep Recesses
Panel Work
Key Features & Benefits
- 82mm longer reach — the extended neck gets past engine covers, intake manifolds, and body panels that the standard-length ratchet cannot reach without removing surrounding components.
- 75Nm FUEL brushless motor — delivers the same high torque as the standard model despite the longer body, maintaining full break-free capability on corroded fasteners.
- 19.3mm low-profile head — fits into gaps as narrow as 20mm between components, hose runs, and wiring looms where a conventional ratchet head would not clear.
- Included 1/4-inch adaptor — drop down to 1/4-inch sockets for smaller fasteners without carrying a second tool, covering trim screws through to engine bolts.
- 200 RPM no-load speed — fast enough for efficient run-down on long-thread fasteners while remaining controllable for precise torque-sensitive work.
- Compact M12 battery — the smaller battery keeps the grip diameter manageable even with the extended body, reducing hand fatigue during long service sessions.
When Standard Reach Falls Short

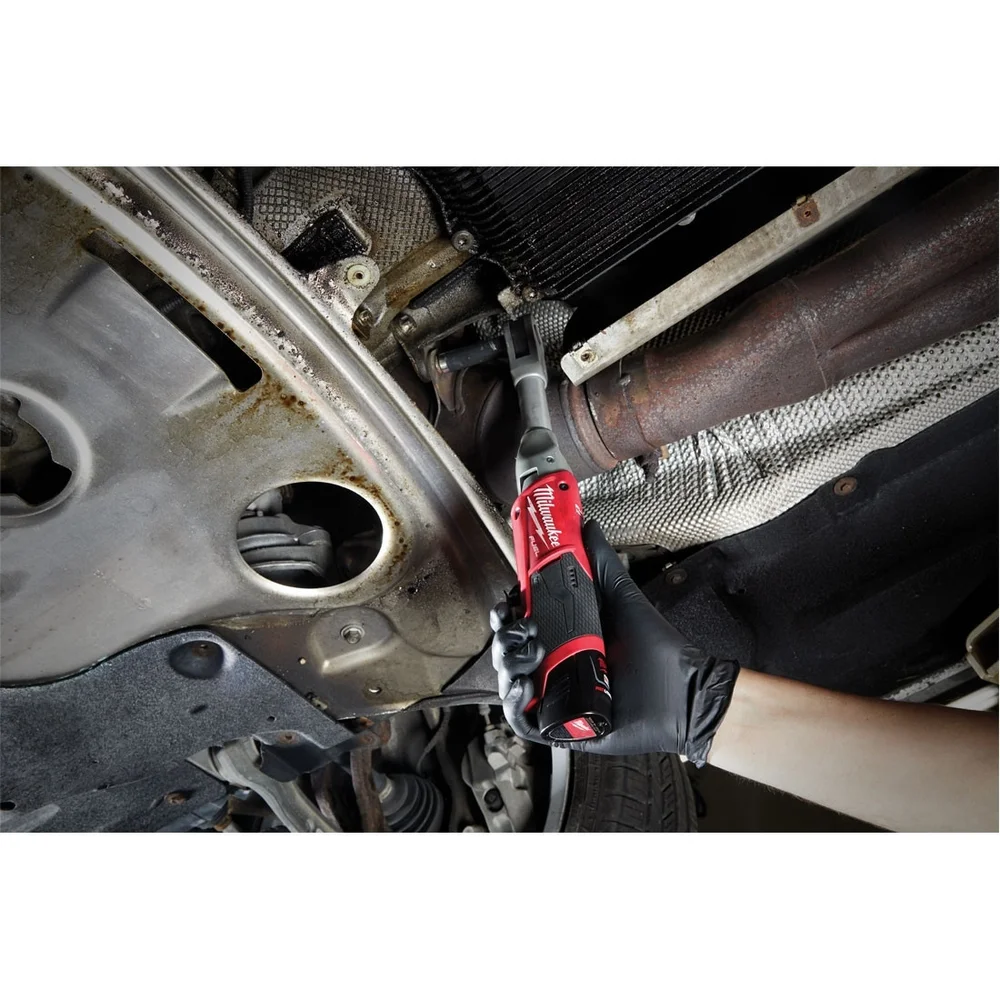

The extended reach version solves the single biggest limitation of compact cordless ratchets — getting to fasteners that sit 80mm or more behind an obstruction. If you regularly work on modern vehicles with tightly packed engine bays, or service industrial equipment behind panels, the extra 82mm eliminates the need for extension bars that add wobble and reduce torque transfer.
Authorised Australian Dealer — This product is sourced directly from Milwaukee Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Type | Drive | Torque | Speed | Head Profile | Length |
|---|---|---|---|---|---|---|
| M12IR-0 | Impact Ratchet | 3/8″ | 47 Nm | 250 RPM | — | Standard |
| M12FIR12-0 | FUEL Impact Ratchet | 1/2″ | 81 Nm | 200 RPM | — | Standard |
| M12FIR38-0 | FUEL Impact Ratchet | 3/8″ | 75 Nm | 200 RPM | 19 mm | 281 mm |
| M12FIR38LR-O ★ | FUEL Extended Ratchet | 3/8″ | 75 Nm | 200 RPM | 19.3 mm | 363 mm |
| M12FHIR38LR0 | FUEL High Speed Ext. | 3/8″ | 47.5 Nm | 450 RPM | 19 mm | Extended |
| M12FPTR-0 | FUEL Pass-Through | 3/8″ + 1/2″ + 1/4″ | 81 Nm | 350 RPM | 21.45 mm | 386 mm |
