Description
TOOLMASTER

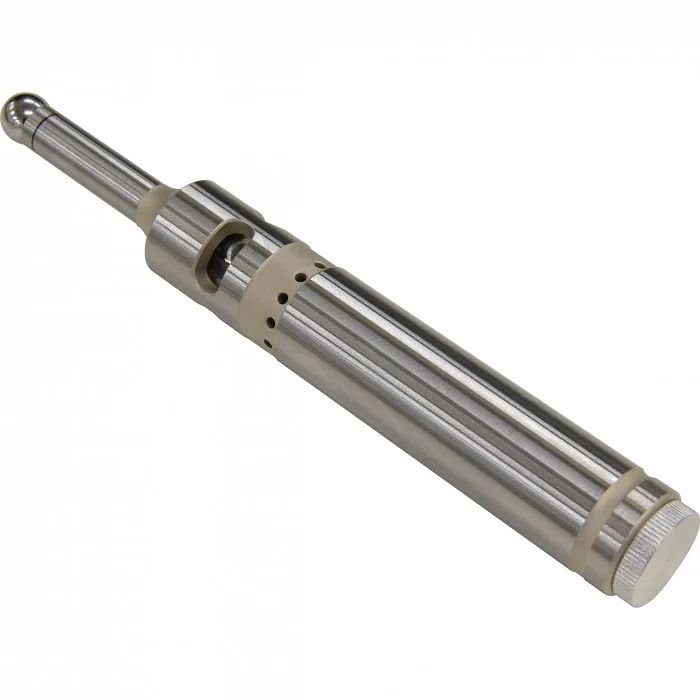

Touch Point Sensor — TPS-20, 156mm Long LED Light & Beeper Sensor
Part No: M690 | Barcode: 9344195006753 | Model: TPS-20

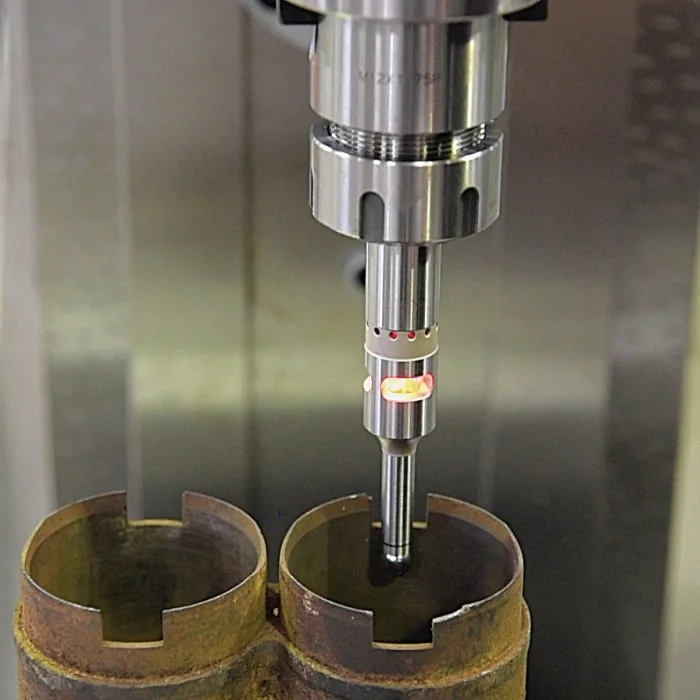

TOOLMASTER TPS-20 Touch Point Sensor (156mm Long LED Light & Beeper Sensor). A valuable setting up tool for all machine shops and is excellent for quickly locating work edges accurately on milling machines alike.
Model TPS-20
156mm Long
LED Light & Beeper Sensor
Key Features & Benefits
- Accuracy within 0.005mm

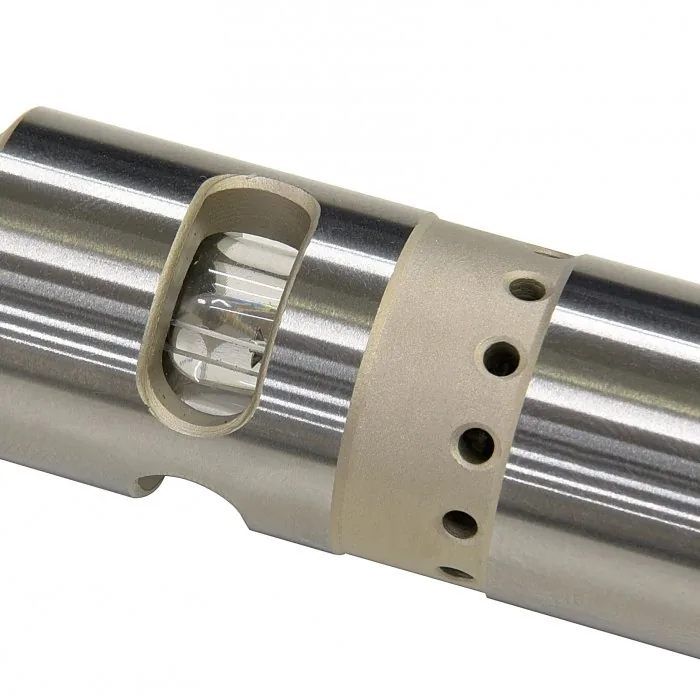

- Bright red LED light illuminates in conjunction with a loud audible beep sound when prob touches conductive work piece

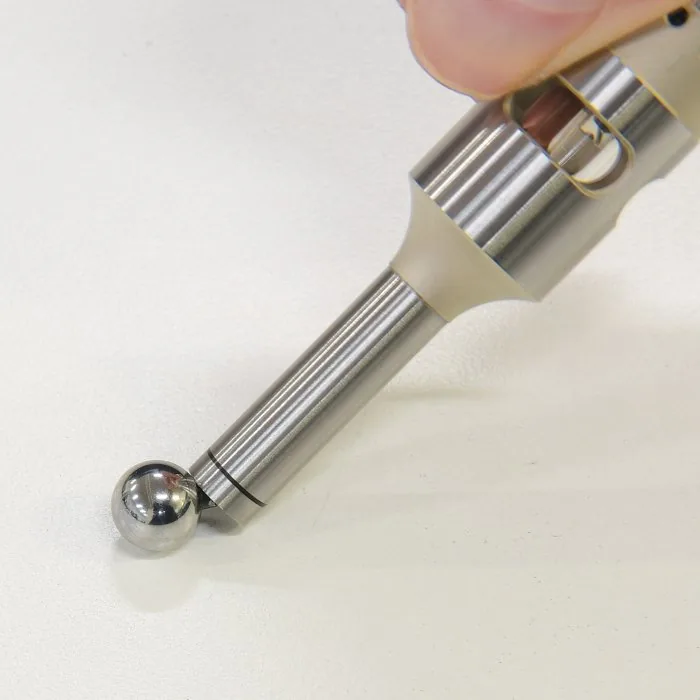

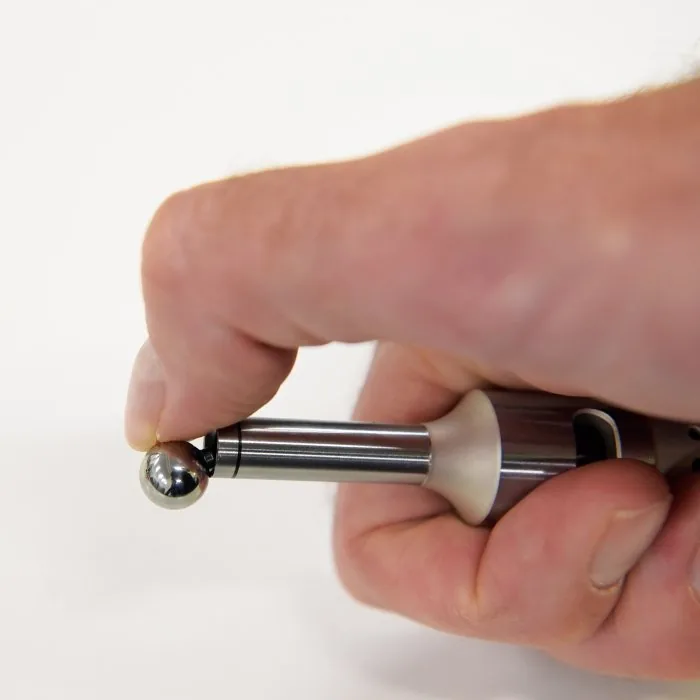

- Spring-loaded safety ball end that returns precisely back to the position when ball breaks away from ball seat
- Ø10mm hardened & ground ball end probe for continuous accuracy
- No need to rotate while measuring or finding edges
About This Product
A valuable setting up tool for all machine shops and is excellent for quickly locating work edges accurately on milling machines alike. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code M690) for collection in store.
In the Box

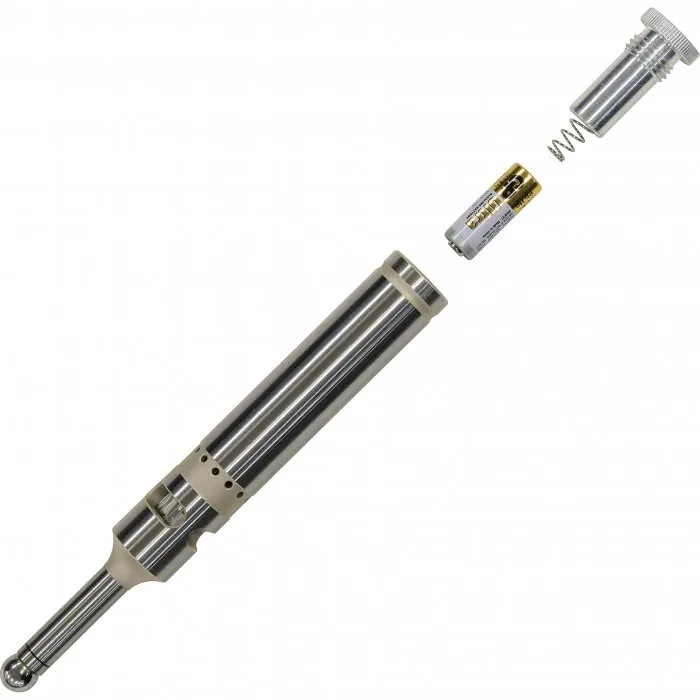

- 1 x A23 battery
Product Specifications
| Specification | Detail |
|---|---|
| Type | Touch Point Sensor |
| Accuracy (mm) | 0.005 |
| D (mm) | 20 |
| d2 (mm) | 10 |
| L (mm) | 156 |
| l1 (mm) | 76 |
| l2 (mm) | 32 |
| Battery | A23 |
| Nett Weight (kg) | 0.3kg |
