METALMASTER

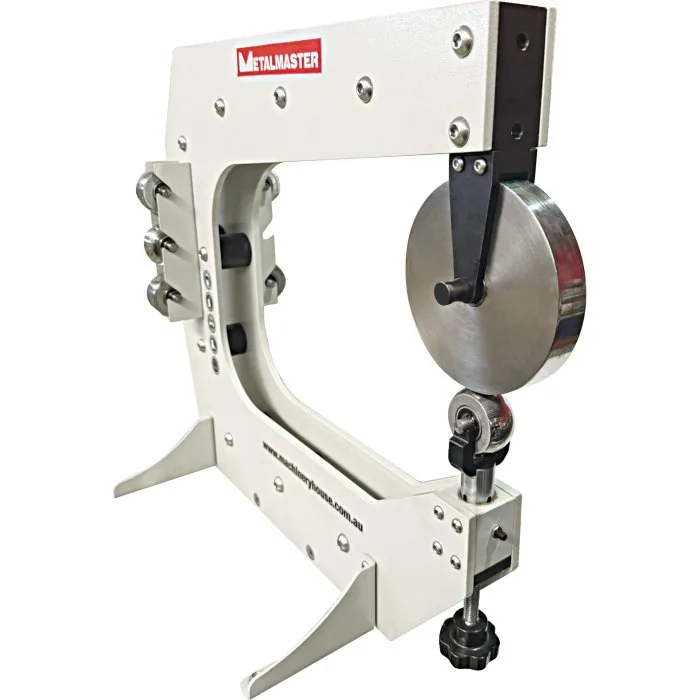

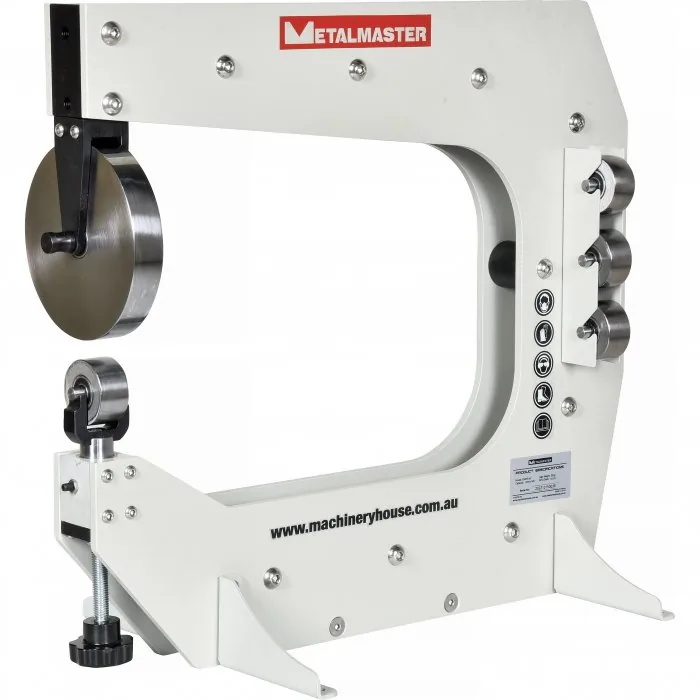

English Wheel — EWBT-40, 1.0mm Mild Steel Capacity 400mm Throat Depth
Part No: S2245 | Barcode: 9344195074868 | Model: EWBT-40

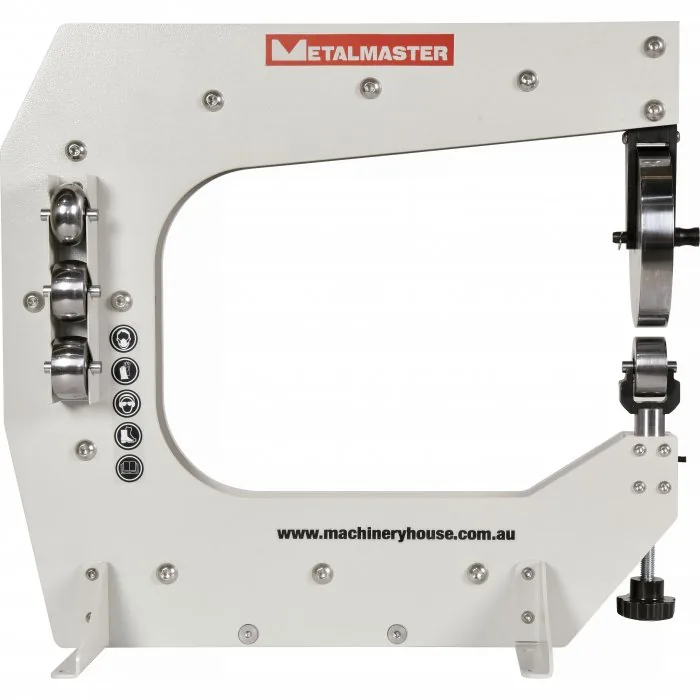

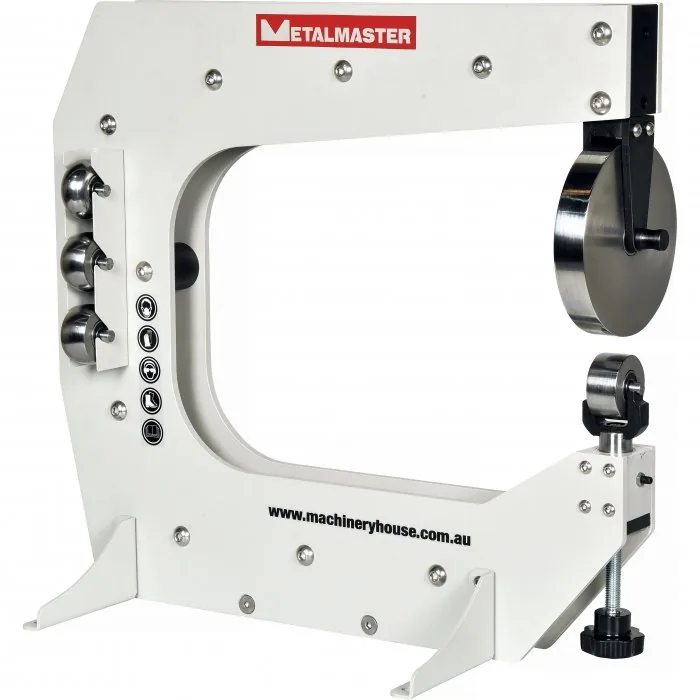

METALMASTER EWBT-40 English Wheel (1.0mm Mild Steel Capacity 400mm Throat Depth). The new Metalmaster EWBT-40 is the perfect addition to any metal shaper’s workshop, ideal for small or narrow jobs where a larger English wheel can’t reach right to the edge. Built with 8 mm thick steel side frames, it’s a solid and…
Model EWBT-40
1.0mm Mild Steel Capacity
400mm Throat Depth
Mild Steel – Capacity: 1.0
Throat Capacity: 400 mm
Key Features & Benefits
- 400mm throat depth
- Heavy duty 8mm thick plate steel side plates

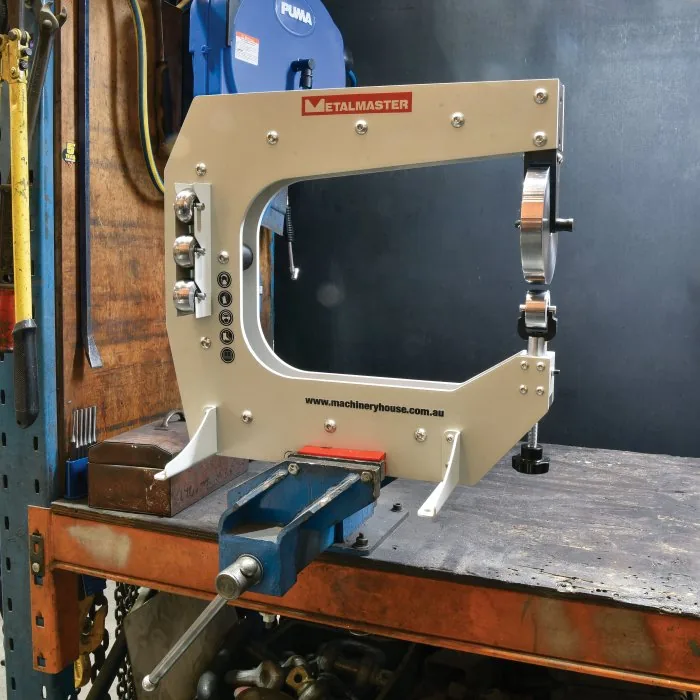

- Heavy steel frame spacer at the base for vice mounting
- 1.0mm mild steel capacity

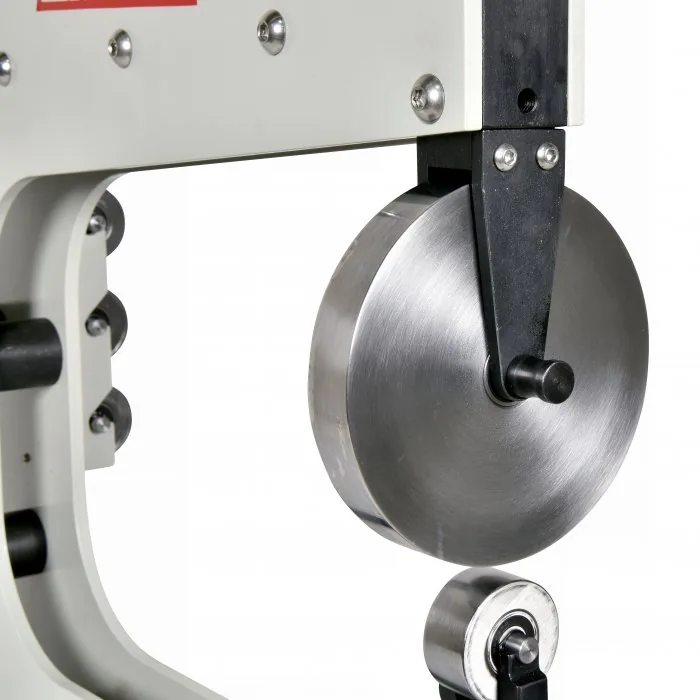

- Upper wheel Ø146 x 25.4mm wide

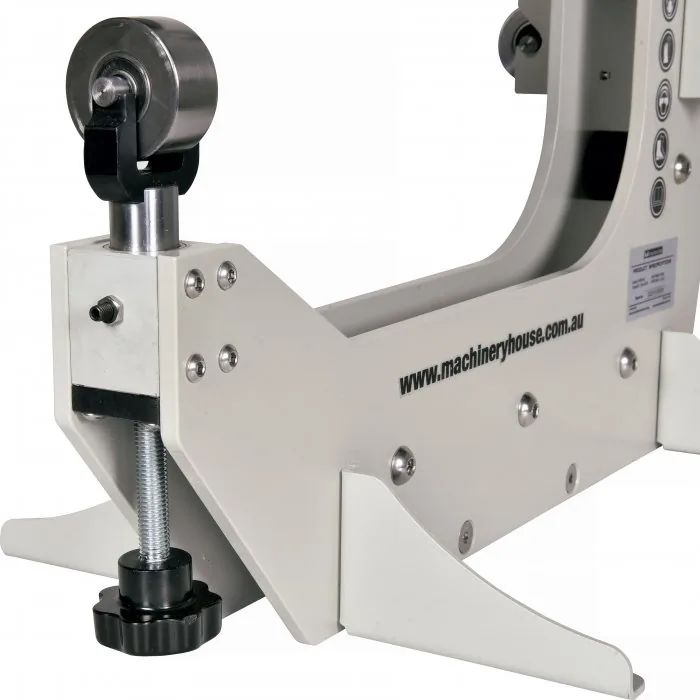

- Wheels pivot 90° to align parallel with the frame, providing easier handling for extended projects.
- Wheel & anvils hardened to 45-50HRC
About This Product

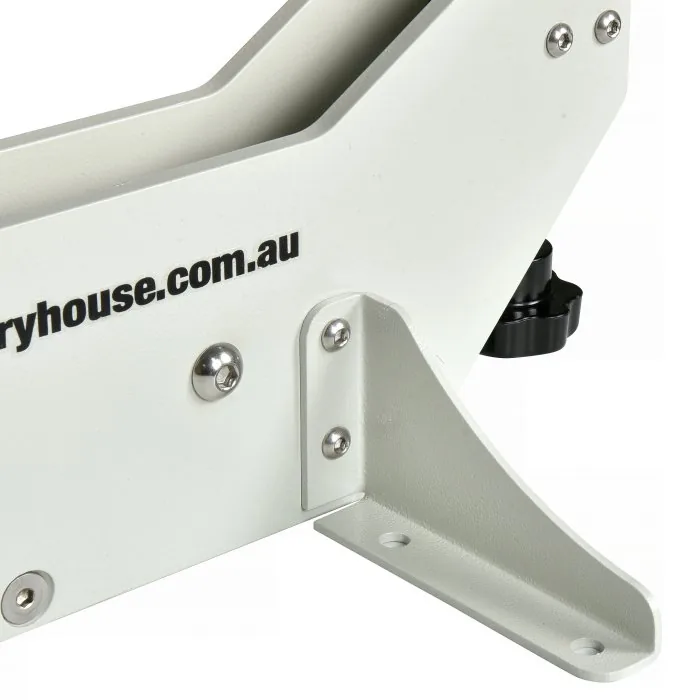

The new Metalmaster EWBT-40 is the perfect addition to any metal shaper’s workshop, ideal for small or narrow jobs where a larger English wheel can’t reach right to the edge. Built with 8 mm thick steel side frames, it’s a solid and reliable performer. The frame can be bench-mounted using the base feet or clamped in a vice, giving you the flexibility to set it up quickly and store it away when not in use. With a 400 mm throat, it provides ample working room while remaining compact and easy to handle. Capable of shaping mild steel up to 1.0 mm (20 gauge), it’s a versatile machine that punches above its weight. The upper wheel and seven lower anvils are hardened to 45–50 HRC, ensuring durability and a long service life. A standout feature of this model is the pivoting wheels, which rotate 90° to sit parallel with the frame—making it much easier to handle longer projects. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code S2245) for collection in store.
In the Box

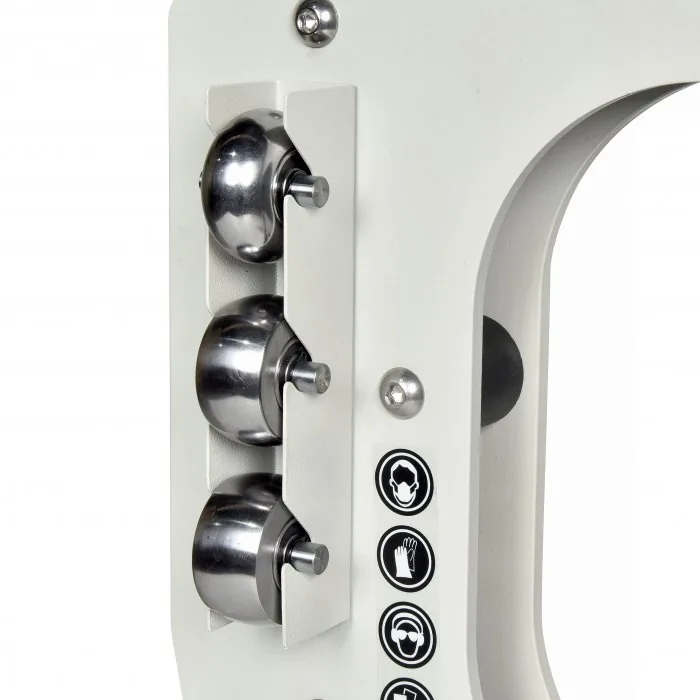

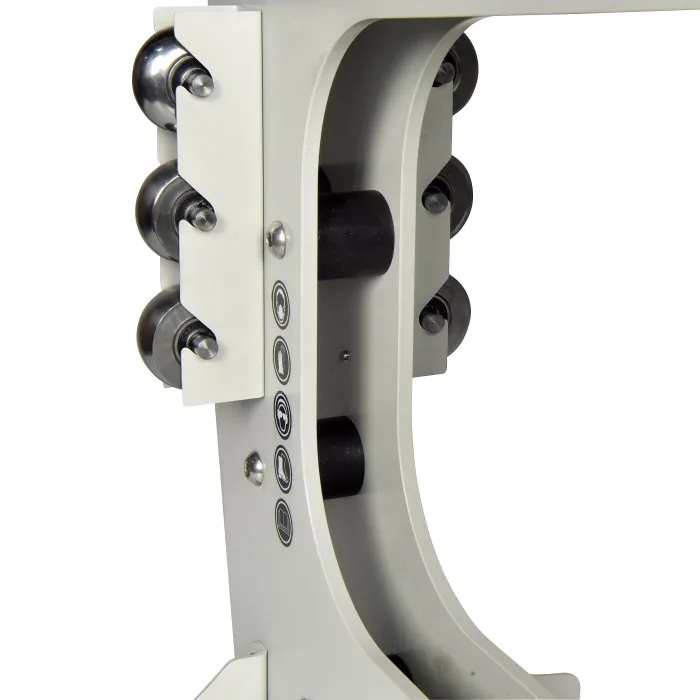

- 7 lower anvils (all 24.5mm wide) in the following radius:
- 12.7mm (1/2″)
- 25.4mm (1″)
- 38.1mm (1-1/2″)
- 63.5mm (2-1/2″)
- 127.0mm (5″)
- 228.6mm (9″)
- 304.8mm (12″)
Product Specifications
English Wheel — Specifications
| Specification |
Detail |
| Mild Steel – Capacity (mm / Gauge) |
1.0 |
| Throat Capacity (mm) |
400 |
| Upper Wheel (Ø x W mm) |
Ø145 x 25.4 |
| Lower Anvils – Radius (mm) |
24.5mm Wide- 12.7, 25.4, 38.1, 63.5, 127, 228.6, 304.8 |
| Nett Weight (kg) |
34 |
Brand: METALMASTERModel: EWBT-40Order Code: S2245Barcode: 9344195074868Availability: Special order — collect in store
