Description
METALMASTER
Manual Ring Rolling Machine — RR-6, 40 x 6mm Mild Steel Flat Bar Capacity Bench Mount
Part No: S6805 | Barcode: 9344195298622 | Model: RR-6
METALMASTER RR-6 Manual Ring Rolling Machine (40 x 6mm Mild Steel Flat Bar Capacity Bench Mount). The RR-6 heavy duty manual section rolling machine offers an economical solution for rolling round, square & flat material. The machine frame is laser cut from 10mm steel plate to resist torsional stresses caused…
Model RR-6
40 x 6mm Mild Steel Flat Bar Capacity
Bench Mount
Powered Driven Rolls: 2 x Manual Qty
Key Features & Benefits
- Heavy machine frame laser cut manufactured from 10mm steel plate

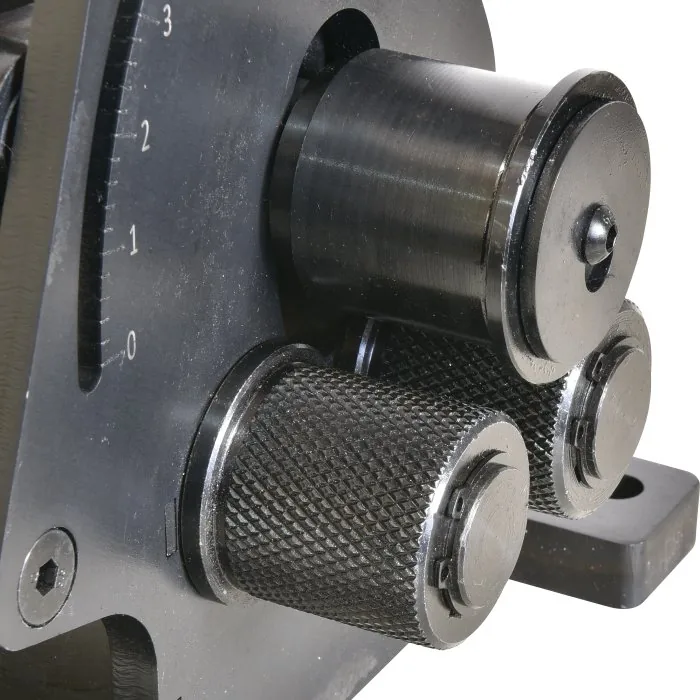

- Precision machined heat-treated and hardened rolls
- All shafts include bronze bushes

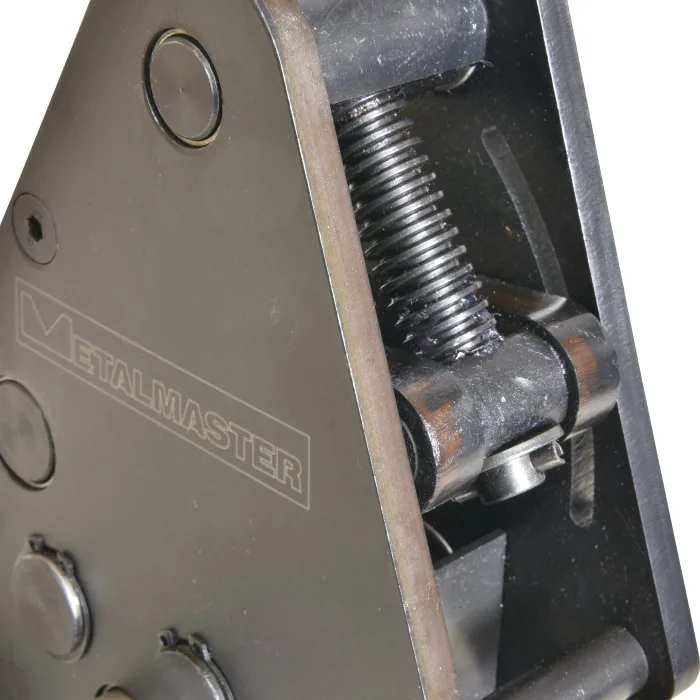

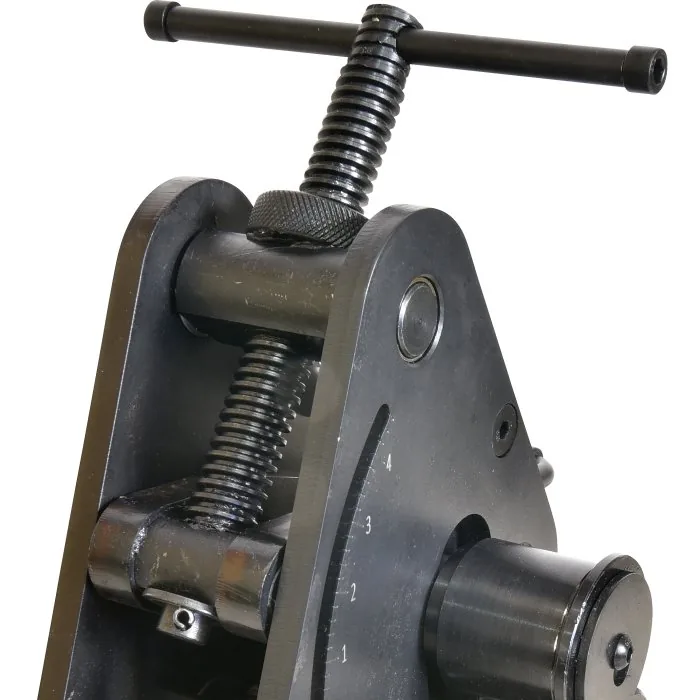

- Acme thread adjustment leadscrew with locking nut

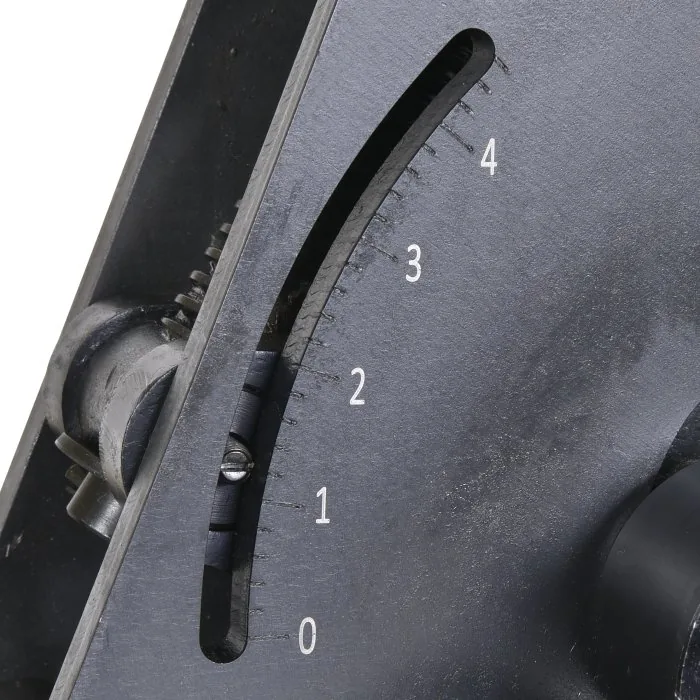

- Position indicator laser engraved into the main frame
- 40 x 6mm mild steel flat bar capacity
- 10mm mild steel round & square bar capacity
About This Product

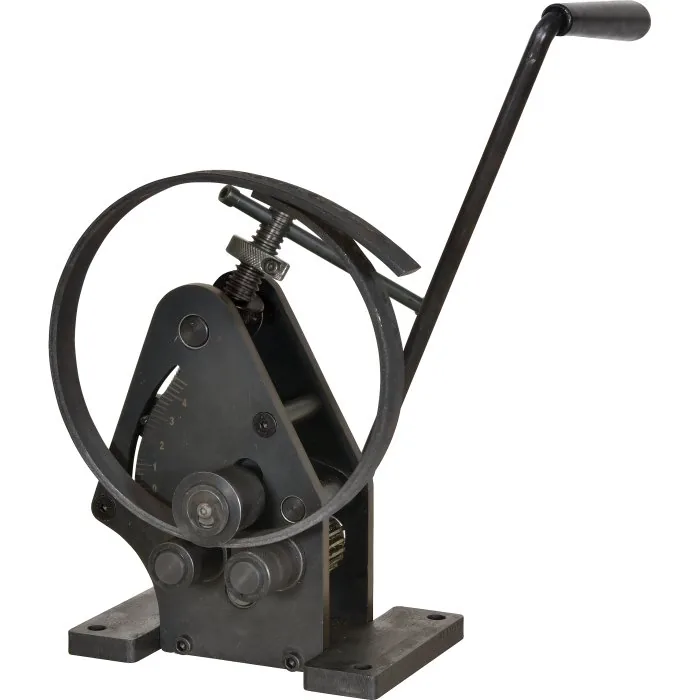

The RR-6 heavy duty manual section rolling machine offers an economical solution for rolling round, square & flat material. The machine frame is laser cut from 10mm steel plate to resist torsional stresses caused during rolling. The bronze bushes ensure smooth operation & the gearing is low enough to roll shapes with ease. The base has holes to conveniently mount to a stand or onto a bench top. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code S6805) for collection in store.

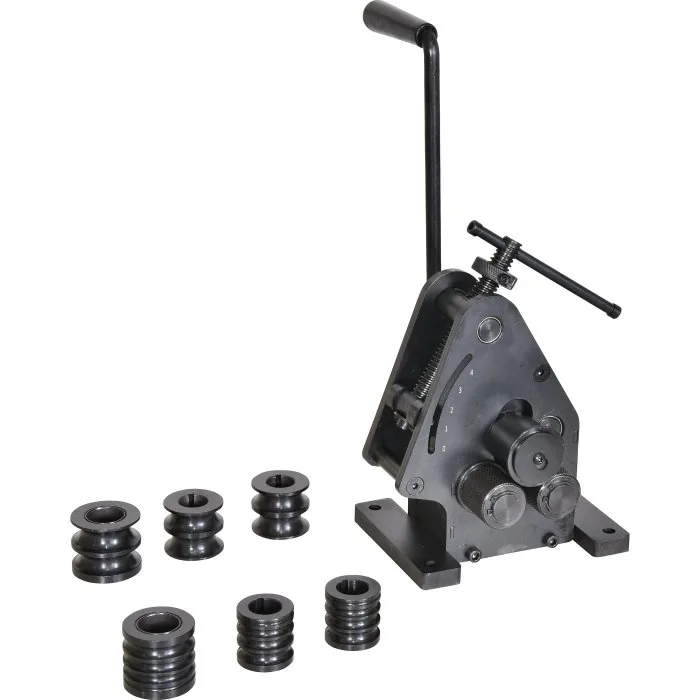

In the Box
- Knurled flat bar dies
- 1 set of wiring dies to suit 3.2mm, 6.5mm, 8mm & 10mm
- 1 set of tube rolling dies to suit 5/8″ & 3/4″ OD tube
- 400mm Crank handle
Product Specifications
| Specification | Detail |
|---|---|
| Powered Driven Rolls (Qty) | 2 x Manual |
| Bending Rolls (Type) | Manual Bottom Right |
| Flat Bar Capacity – MS (size / Ø) (mm) | 40 x 6 / |
| Round Bar Solid Capacity – MS (size / Ø) (mm) | Ø10 |
| Dimensions (L x W x H) (mm) | 200 x 200 x 310 (without handle) |
| Note: Requires Additional Tooling (No / Yes*) | No |
| Nett Weight (kg) | 15.2 |
