Description
Carbitool T1406M — 2 Flute Solid Carbide Straight Router Bit Shank available at Alltools Geelong. Shop our full 2 Flute Solid Carbide Straight Router Bit Shank range in Geelong.
Carbitool

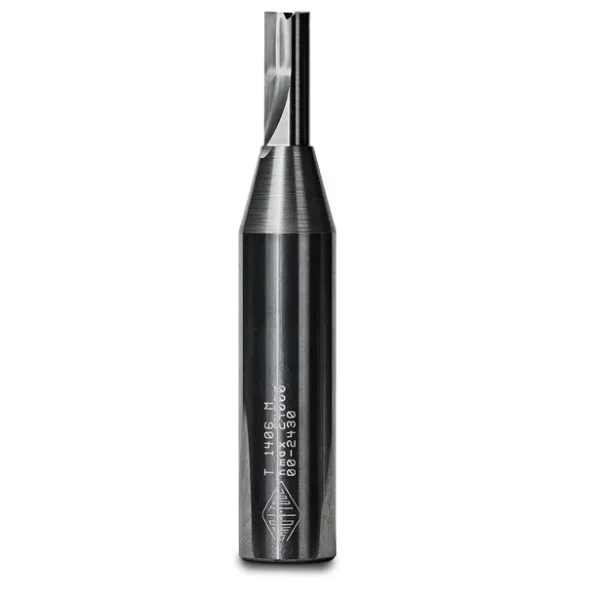

2 Flute Straight Router Bit — Solid Carbide, 6.00mm Cutting Diameter, 1/2″ Shank
Part No: T 1406 M | Barcode: 9314350003668 | Product Group: R508
A 2-flute solid carbide straight router bit with 1/2″ shank for general purpose routing, grooving and rebating. Solid carbide provides longer service life in abrasive materials compared to carbide-tipped alternatives.
Solid Carbide
2 Flute
Straight Flute
1/2″ Shank
6.00mm Cutting Dia.
Suitable For
Hardwood
Softwood
MDF
Laminates
Key Features & Benefits
- Solid carbide construction — full solid carbide provides superior edge retention and longer service life than carbide-tipped alternatives in abrasive MDF and laminates.
- 1/2″ shank rigidity — heavy shank minimises deflection for accurate groove dimensions and clean wall finish.
When to Use This Bit
Use the T 1406 M for dadoes, housings, rebates and through-cuts in hardwood and sheet goods where the rigidity of a 1/2″ shank is preferred. The TX variant provides an extended cut length for deeper operations.
Product Specifications
| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|
| T 1406 M ★ | – | 6.00 | 5/8 | 15.88 | 2-3/4 | 69.85 | 1/2 | 12.70 | 9314350003668 |
| TX 1406 M | – | 6.00 | 1.00 | 25.40 | 3.00 | 76.20 | 1/2 | 12.70 | 9314657028647 |
| T 1408 | 1/4 | 6.35 | 5/8 | 15.88 | 2-3/4 | 69.85 | 1/2 | 12.70 | 9314350003675 |
| T 1410 | 5/16 | 7.94 | 3/4 | 19.05 | 2-7/8 | 73.03 | 1/2 | 12.70 | 9314350003682 |
| T 1408 M | – | 8.00 | 3/4 | 19.05 | 2-7/8 | 73.03 | 1/2 | 12.70 | 9314350003699 |
| TX 1408 M | 0.315 | 8.00 | 1.00 | 25.40 | 3.00 | 76.20 | 1/2 | 12.70 | 9314350046313 |
★ You are viewing the highlighted variant.
