Carbitool
TSL 12 3/8 Down Cut Spiral Router Bit — Aluminium & Non-Ferrous Metals, Solid Carbide
Part No: TSL 12 3/8 | Barcode: 9314350000599 | Product Group: R808
Solid carbide 2-flute down cut spiral router bit, 3/8″ cutting diameter and 3/8″ shank, for aluminium and non-ferrous metal routing. The down cut helix keeps the top surface clean and burr-free — the preferred geometry for laminate trimming, ACP through-cutting, and aluminium profile routing.
Solid Carbide
Down Cut
2-Flute
3/8″ (9.53mm) Dia.
3/8″ Shank
↓
Down Cut
Chips pushed below the workpiece — clean, burr-free top edge on aluminium and laminate.
Suitable For
Aluminium
Aluminium Composite
Laminates
Non-Ferrous Metals
Key Features & Benefits
- 3/8″ diameter and matching 3/8″ shank — larger shank provides increased rigidity for clean, vibration-free cuts at higher feed rates in aluminium profiles and sheet.
- Down cut spiral — directs chips down, preventing burring on the top surface of aluminium workpieces.
- Solid carbide — hard enough to resist aluminium’s abrasive oxide layer through sustained cutting operations.
When to Use This Bit
Choose the TSL 12 3/8 where a 3/8″ diameter groove or through-cut is required in aluminium or laminate, and top-face finish quality is important. The 3/8″ shank gives more stability than the 1/4″ shanked TSL 8 for longer cuts in harder aluminium alloys. Always use cutting fluid with aluminium routing.

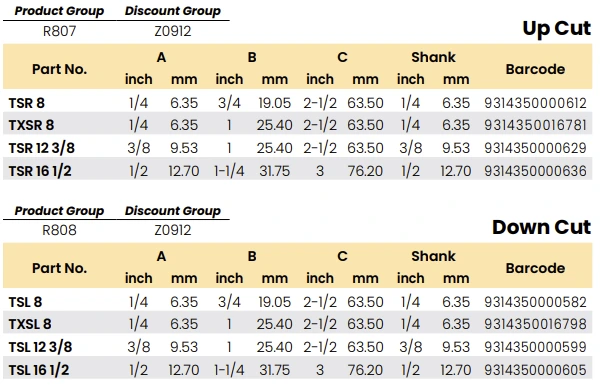

Product Specifications
| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|
| TSL 8 | 1/4 | 6.35 | 3/4 | 19.05 | 2-1/2 | 63.50 | 1/4 | 6.35 | 9314350000582 |
| TXSL 8 | 1/4 | 6.35 | 1 | 25.40 | 2-1/2 | 63.50 | 1/4 | 6.35 | 9314350016798 |
| TSL 12 3/8 ★ | 3/8 | 9.53 | 1 | 25.40 | 2-1/2 | 63.50 | 3/8 | 9.53 | 9314350000599 |
| TSL 16 1/2 | 1/2 | 12.70 | 1-1/4 | 31.75 | 3 | 76.20 | 1/2 | 12.70 | 9314350000605 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
