Carbitool
TSL 8 Down Cut Spiral Router Bit — Aluminium & Non-Ferrous Metals, Solid Carbide
Part No: TSL 8 | Barcode: 9314350000582 | Product Group: R808
Solid carbide 2-flute down cut spiral router bit for aluminium and non-ferrous metal trimming. The down cut pushes chips below the workpiece rather than ejecting them upward, producing a clean, burr-free top edge — the preferred choice for laminate trimming and through-cutting applications where top surface finish matters.
Solid Carbide
Down Cut
2-Flute
1/4″ (6.35mm) Dia.
1/4″ Shank
↓
Down Cut
Flute helix pushes chips downward — produces a clean, burr-free top edge on the workpiece, ideal for laminate trimming.
Suitable For
Aluminium
Aluminium Composite
Laminates
Non-Ferrous Metals
Key Features & Benefits
- Down cut spiral geometry — pushes chips below the workpiece, preventing burr formation on the top surface and producing a clean top edge on aluminium laminates and sheet metal.
- Solid carbide construction — resists wear from aluminium’s abrasive oxide layer, maintaining edge quality through extended trimming operations.
- 2-flute design — appropriate chip load for aluminium alloys without clogging the flutes.
When to Use This Bit
Use the TSL 8 (down cut) when trimming aluminium laminates or routing through aluminium composite where the finished face is on top. The downward chip push keeps the top edge clean and burr-free. For blind grooves in aluminium where chip clearance upward is important, use the up cut version TSR 8 instead. Always use cutting fluid with aluminium — dry routing causes rapid chip welding on the carbide edge.
Product Specifications

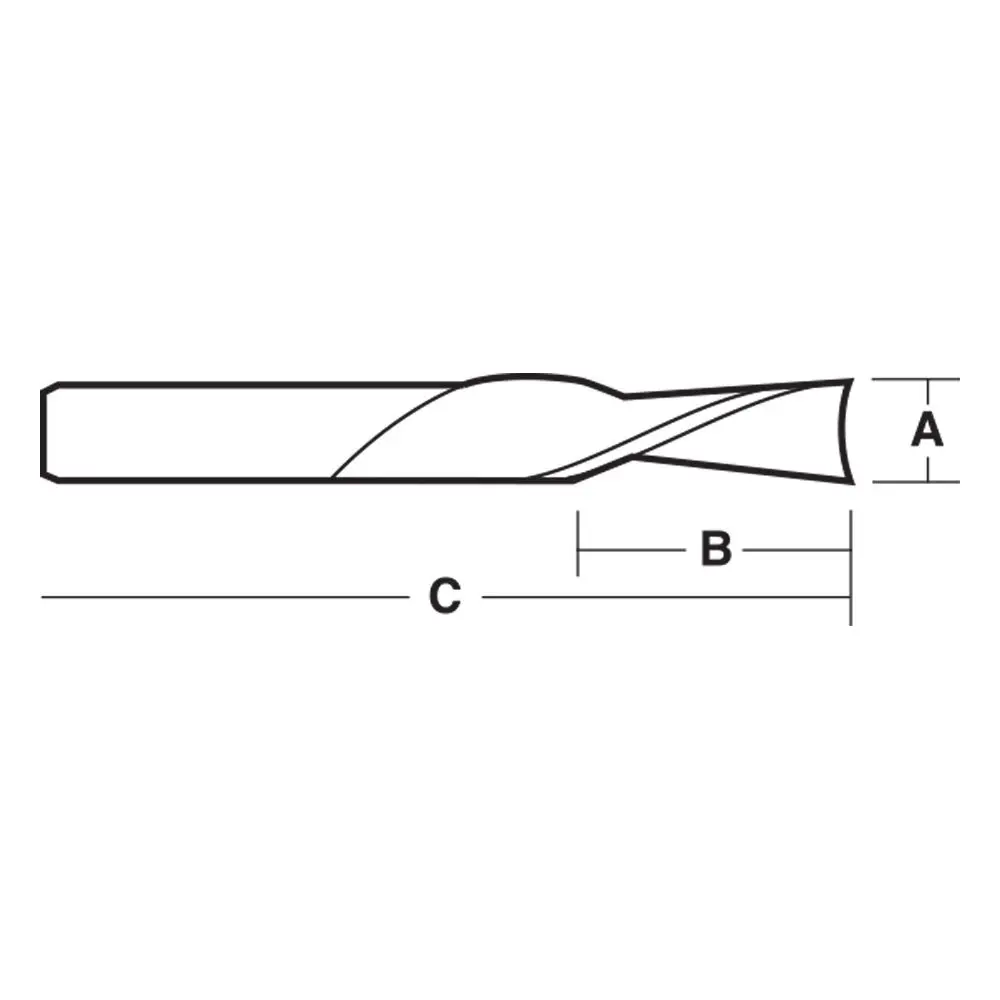

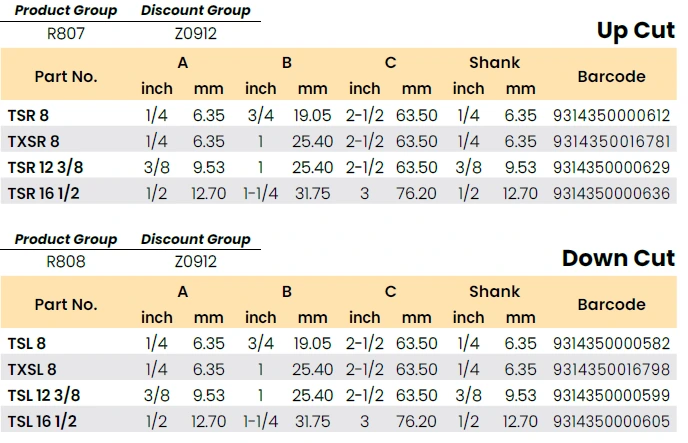

| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|
| TSL 8 ★ | 1/4 | 6.35 | 3/4 | 19.05 | 2-1/2 | 63.50 | 1/4 | 6.35 | 9314350000582 |
| TXSL 8 | 1/4 | 6.35 | 1 | 25.40 | 2-1/2 | 63.50 | 1/4 | 6.35 | 9314350016798 |
| TSL 12 3/8 | 3/8 | 9.53 | 1 | 25.40 | 2-1/2 | 63.50 | 3/8 | 9.53 | 9314350000599 |
| TSL 16 1/2 | 1/2 | 12.70 | 1-1/4 | 31.75 | 3 | 76.20 | 1/2 | 12.70 | 9314350000605 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
