Carbitool
T448 1/2 Core Box Router Bit — 1-1/2″ Cutting Diameter, 3/4″ Radius
Part No: T 448 1/2 | Barcode: 9314350008434 | Product Group: R587 | Discount Group: Z0904

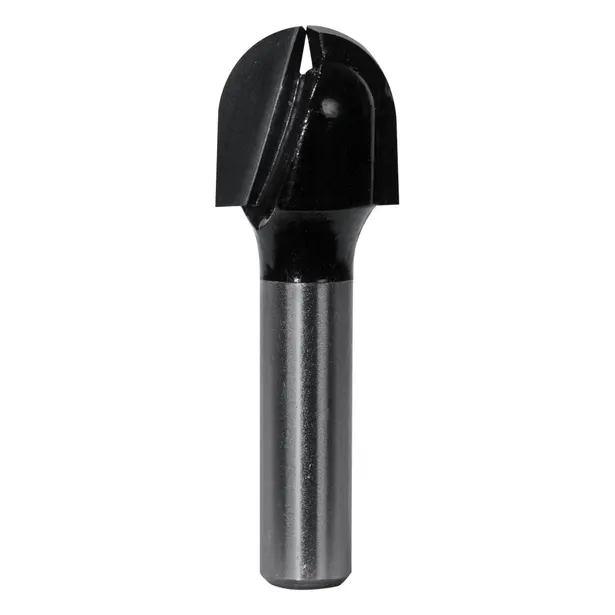

The Carbitool T 448 1/2 is a 2-flute carbide-tipped core box router bit with a 3/4″ (19.05mm) radius and 1-1/2″ (38.10mm) cutting diameter. The largest in the carbide-tipped core box series, it is designed for wide, deep coves, fluted mantles, façade panels, and large-scale signage lettering.
2 Flute
Carbide Tipped
1-1/2″ Cutting Dia
3/4″ Radius
1/2″ Shank
Cove & Fluting
Suitable For
Hardwood
Softwood
MDF
Mantles & Façades
Signage Lettering
Key Features & Benefits
- 3/4″ (19.05mm) radius — produces a wide, sweeping semicircular cove profile suited to large architectural timber elements including mantle surrounds, pilasters, and façade panels.
- 1-1/2″ (38.10mm) cutting diameter — the largest in the Carbitool carbide-tipped core box range, covering cove work that smaller bits cannot reach in a single pass.
- 2-flute carbide-tipped construction — provides a good balance of cutting speed and finish quality; longer lasting than HSS in abrasive timbers and MDF.
- 1/2″ shank — the mass and cut forces generated by a 1-1/2″ cutter demand a 1/2″ collet for adequate rigidity; do not use in a 1/4″ shank router.
- Used with template or fence — no bearing is fitted; use the router table fence for straight fluting runs, or a template guide for curved profiles.
When to Use This Bit
Reach for the T 448 1/2 when your project calls for full-width cove profiles on architectural timber: mantle surrounds, pilaster fluting, decorative facade panels, or deep-set signage lettering where smaller radii would require multiple passes to approximate the same curve. For smaller cove work, the series steps down through T 440 1/2 (5/8″ radius), T 432 1/2 (1/2″ radius), T 424 1/2 (3/8″ radius), and smaller. A solid-carbide option (T 408) is also available in the series for the smallest radius work.
Pro Tip: At this diameter, take multiple shallow passes (3–4mm depth increment) rather than one full-depth plunge. Large-diameter core box bits generate significant lateral force; a router speed of 12,000–16,000 RPM with a moderate feed rate will minimise burning and chatter.

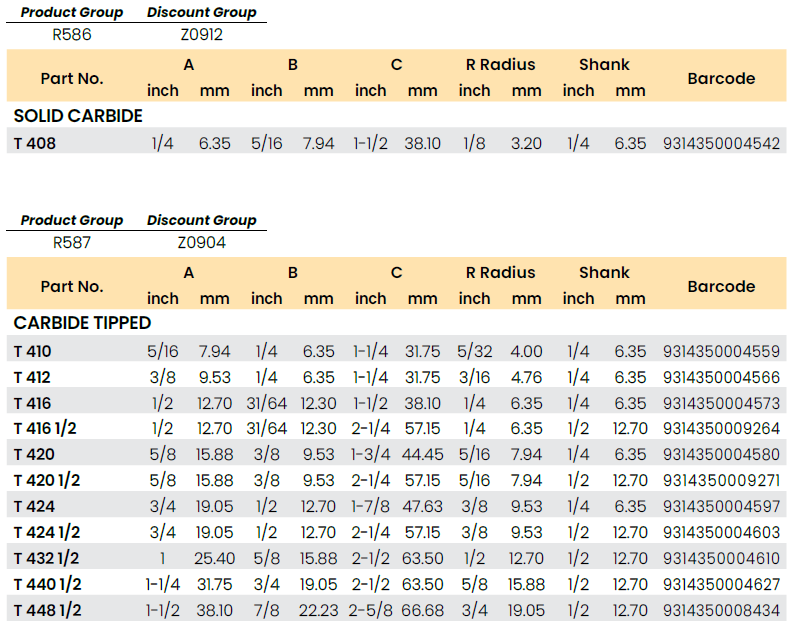

Product Specifications

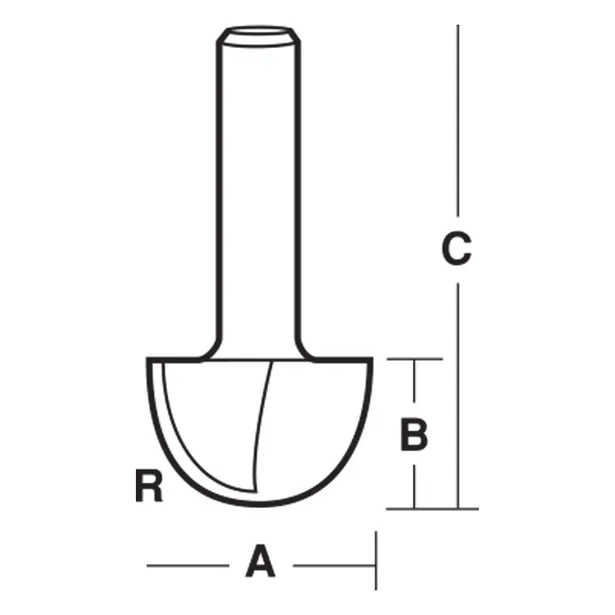

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | R Radius inch | R mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|

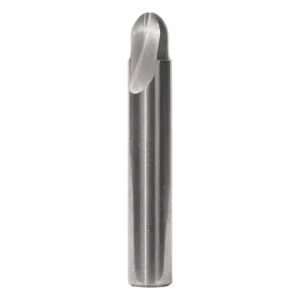

| T 408 (SC) | 1/4 | 6.35 | 5/16 | 7.94 | 1-1/2 | 38.10 | 1/8 | 3.20 | 1/4 | 6.35 | 9314350004542 |
| T 410 | 5/16 | 7.94 | 1/4 | 6.35 | 1-1/4 | 31.75 | 5/32 | 4.00 | 1/4 | 6.35 | 9314350004559 |
| T 412 | 3/8 | 9.53 | 1/4 | 6.35 | 1-1/4 | 31.75 | 3/16 | 4.76 | 1/4 | 6.35 | 9314350004566 |
| T 416 | 1/2 | 12.70 | 31/64 | 12.30 | 1-1/2 | 38.10 | 1/4 | 6.35 | 1/4 | 6.35 | 9314350004573 |
| T 416 1/2 | 1/2 | 12.70 | 31/64 | 12.30 | 2-1/4 | 57.15 | 1/4 | 6.35 | 1/2 | 12.70 | 9314350009264 |
| T 420 | 5/8 | 15.88 | 3/8 | 9.53 | 1-3/4 | 44.45 | 5/16 | 7.94 | 1/4 | 6.35 | 9314350004580 |
| T 420 1/2 | 5/8 | 15.88 | 3/8 | 9.53 | 2-1/4 | 57.15 | 5/16 | 7.94 | 1/2 | 12.70 | 9314350009271 |
| T 424 | 3/4 | 19.05 | 1/2 | 12.70 | 1-7/8 | 47.63 | 3/8 | 9.53 | 1/4 | 6.35 | 9314350004597 |
| T 424 1/2 | 3/4 | 19.05 | 1/2 | 12.70 | 2-1/4 | 57.15 | 3/8 | 9.53 | 1/2 | 12.70 | 9314350004603 |
| T 432 1/2 | 1 | 25.40 | 5/8 | 15.88 | 2-1/2 | 63.50 | 1/2 | 12.70 | 1/2 | 12.70 | 9314350004610 |
| T 440 1/2 | 1-1/4 | 31.75 | 3/4 | 19.05 | 2-1/2 | 63.50 | 5/8 | 15.88 | 1/2 | 12.70 | 9314350004627 |
| T 448 1/2 ★ | 1-1/2 | 38.10 | 7/8 | 22.23 | 2-5/8 | 66.68 | 3/4 | 19.05 | 1/2 | 12.70 | 9314350008434 |
★ You are viewing the highlighted variant. Other sizes in this series are also available. (SC) = Solid Carbide; all others Carbide Tipped.
