T7506B 1/2 Ogee Router Bit with Ball Bearing Guide Carbitool
Part No: T7506B 1/2 | Barcode: 9314350006775 | Product Group: R662–R664

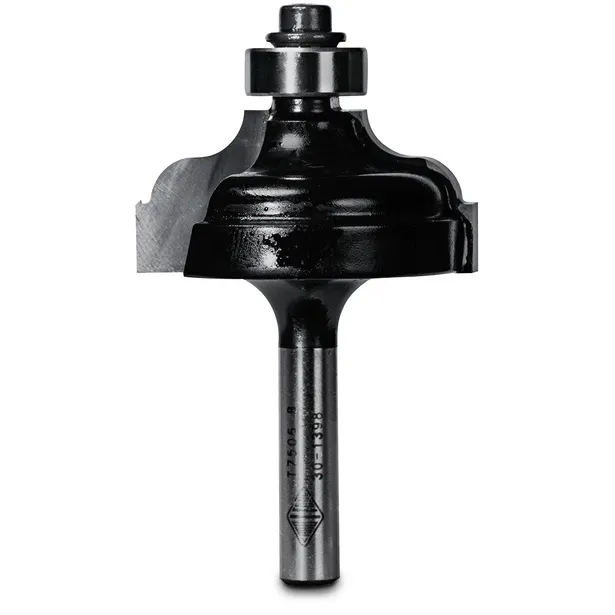

The Carbitool T7506B 1/2 is a 2-flute carbide-tipped ogee bit with ball bearing guide. Produces a classic S-curve ogee edge profile widely used on table and mantle edges, cabinet doors and furniture moulding. 3/16" radius. 1/2" shank. Fit TB9 bearing to add a 1/16" edge bead.
2 Flute
Carbide Tipped
3/16" Radius
1/2" Shank
Ball Bearing Guide

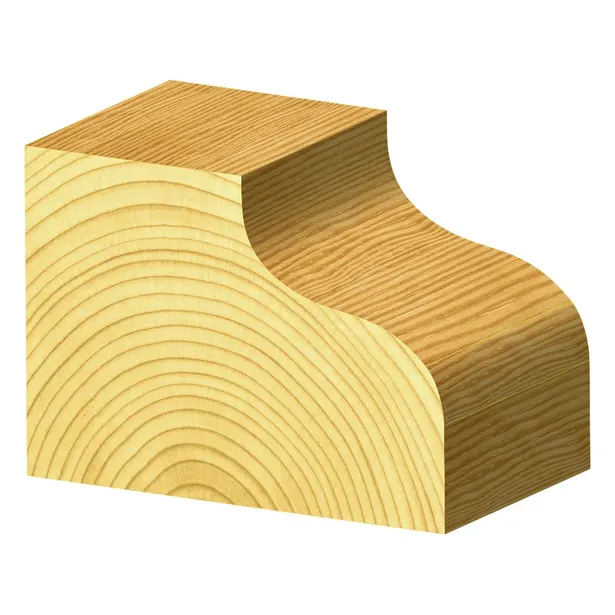

S-Curve Ogee Profile
Compatible Materials
Hardwood
Softwood
MDF
Laminates
Key Features & Benefits
- Classic S-curve ogee profile — produces the traditional ogee edge form used across furniture, cabinet doors, table tops and architectural mouldings.
- Ball bearing guide — tracks against the workpiece for consistent depth without a fence; handles curved and irregular edges.
- Convertible to beading — replace the standard TB11 bearing with a TB9 to expose the bottom corner and add a 1/16" edge bead to the profile.
- Height-adjustable profile — raise or lower the bit to include or exclude the top bead for profile variety without a bit change.
- 2-flute carbide-tipped construction — consistent finish and long tool life across hardwoods and softwoods.
When to Use This Bit
The T7506B 1/2 delivers the classic ogee S-curve form used widely on table edges, mantle pieces, cabinet door stiles, and furniture moulding. Use the height adjuster to selectively include or exclude the top bead; fit a TB9 bearing to add a 1/16" lower bead. The R662–R664 series offers three cutting diameters to suit different moulding scales.
Pro Tip: Run two passes at different heights to build up a compound moulding profile combining the ogee with a shoulder — no second bit needed.

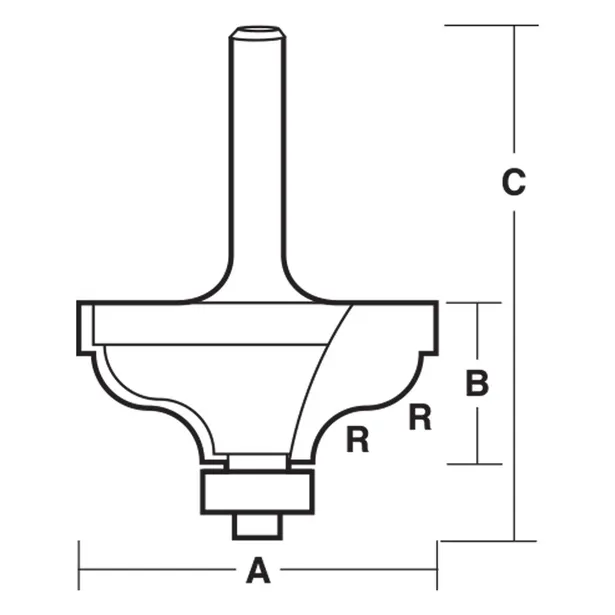

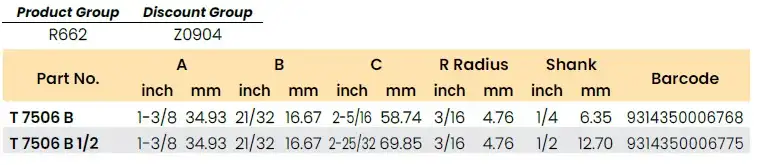

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | R Radius inch | R mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T7506B | 1-3/8 | 34.93 | 21/32 | 16.67 | 2-5/16 | 58.74 | 3/16 | 4.76 | 1/4 | 6.35 | 9314350006768 |
| T7506B 1/2 ★ | 1-3/8 | 34.93 | 21/32 | 16.67 | 2-25/32 | 69.85 | 3/16 | 4.76 | 1/2 | 12.70 | 9314350006775 |
| T7508B | 1-5/8 | 41.28 | — | 18.00 | 2-5/32 | 54.80 | 1/4 | 6.35 | 1/4 | 6.35 | 9314350006782 |
| T7508B 1/2 | 1-5/8 | 41.28 | — | 18.00 | 2-3/4 | 69.85 | 1/4 | 6.35 | 1/2 | 12.70 | 9314350006799 |
| T7512B 1/2 | 2-1/8 | 53.98 | 1 | 25.40 | 3-3/8 | 85.73 | 3/8 | 9.53 | 1/2 | 12.70 | 9314350006805 |
★ You are viewing the highlighted variant. Other sizes in this series are also available. Fit TB9 bearing to produce a 1/16" edge bead.
