T 7504 Ogee Router Bit — 2 Flute Carbide Tipped
Part No: T 7504 | Barcode: 9314350004863 | Product Group: R592 | Discount Group: Z0904

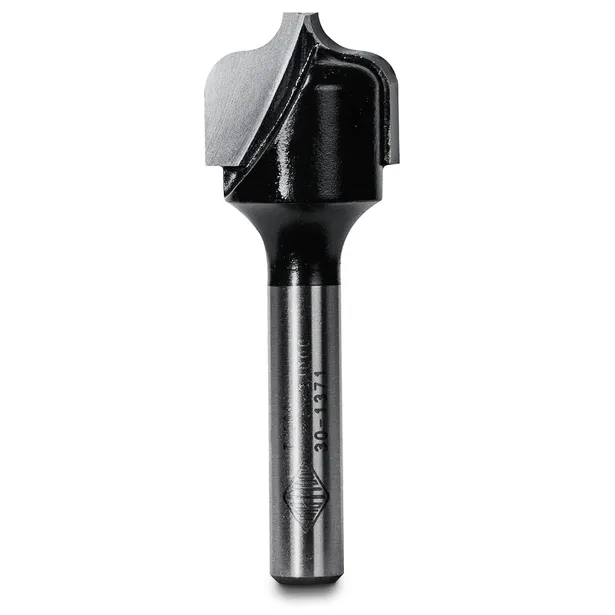

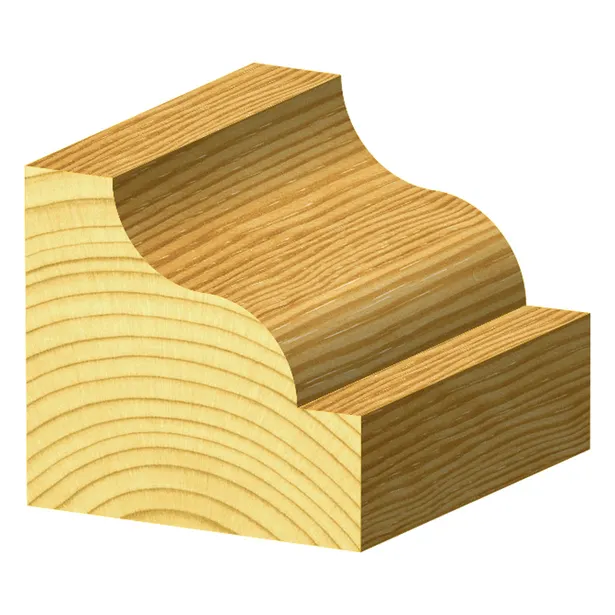

The Carbitool T 7504 is a 2-flute carbide-tipped Ogee router bit. It produces the classic S-curve ogee profile (A1 16.20mm, R3.18mm) used widely on table edges, mantle edges, and furniture mouldings. Use with a fence or template guide. 1/4″ shank.
2 Flute
Carbide Tipped
1/4″ Shank
Standard Ogee Profile
R3.18mm Radius
Suitable For
Hardwood
Softwood
MDF
Furniture Edges
Table Tops
Key Features & Benefits
- Classic Ogee Profile — the S-curve ogee is one of the most widely used decorative profiles in furniture and cabinet making; the T7504 produces a compact, refined version suited to smaller-scale work.

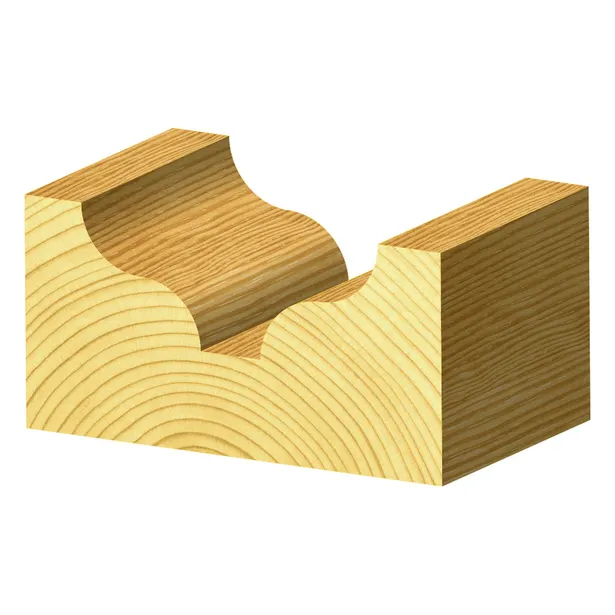

- Use with Fence or Template — no bearing; set depth and position precisely with a router table fence for consistent moulding along straight edges. Use with a template for face forming.
- 2-Flute Carbide-Tipped — handles hardwood, softwood, and MDF with extended service life.
- Compact Size (A1 16.20mm) — the smaller profile is proportionally correct for narrower boards, small table edges, and fine furniture work.
When to Use This Bit
Use the T 7504 for standard ogee edge profiles on furniture, table tops, and cabinet moulding where a compact S-curve profile is needed. For a larger, more prominent ogee, step up to T 7506 or T 7509. For a fine-point variation, see TF 7506. For face forming or template work, clamp a guide to the workpiece and run the bit against it. For an ogee with ball bearing guide, see the T 7506 B and T 7508 B with bearing versions.
Pro Tip: Ogee profiles look best when run in one smooth, consistent pass. Avoid stopping mid-cut as this can leave a witness mark in the timber that is difficult to sand out.

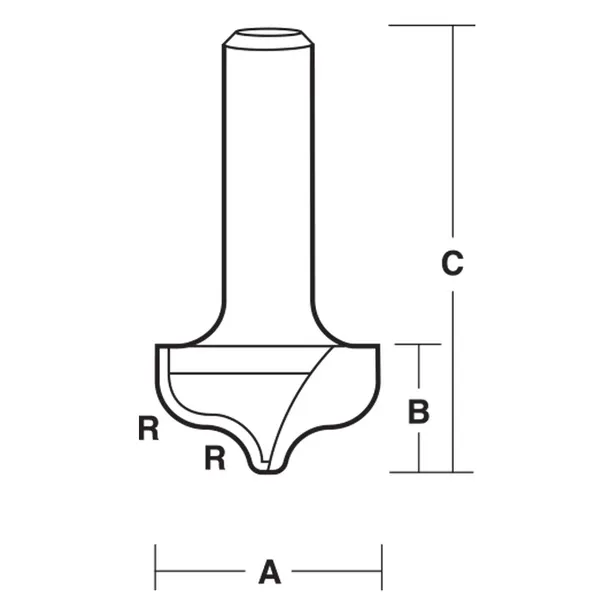

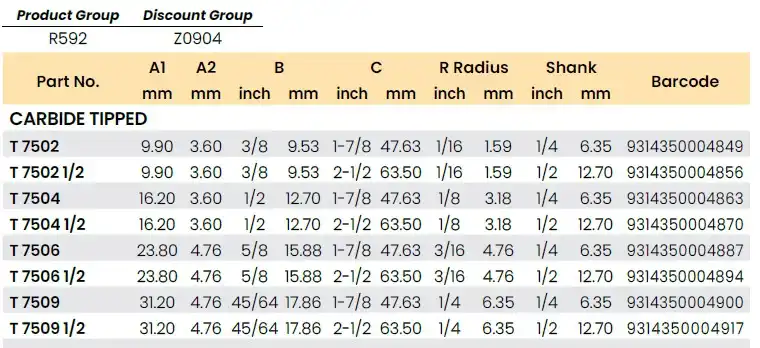

| Part No. | A1 mm | A2 mm | B inch | B mm | C inch | C mm | R Radius inch | R mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T 7502 | 9.90 | 3.60 | 3/8 | 9.53 | 1-7/8 | 47.63 | 1/16 | 1.59 | 1/4 | 6.35 | 9314350004849 |
| T 7502 1/2 | 9.90 | 3.60 | 3/8 | 9.53 | 2-1/2 | 63.50 | 1/16 | 1.59 | 1/2 | 12.70 | 9314350004856 |
| T 7504 ★ | 16.20 | 3.60 | 1/2 | 12.70 | 1-7/8 | 47.63 | 1/8 | 3.18 | 1/4 | 6.35 | 9314350004863 |
| T 7504 1/2 | 16.20 | 3.60 | 1/2 | 12.70 | 2-1/2 | 63.50 | 1/8 | 3.18 | 1/2 | 12.70 | 9314350004870 |
| T 7506 | 23.80 | 4.76 | 5/8 | 15.88 | 1-7/8 | 47.63 | 3/16 | 4.76 | 1/4 | 6.35 | 9314350004887 |
| T 7506 1/2 | 23.80 | 4.76 | 5/8 | 15.88 | 2-1/2 | 63.50 | 3/16 | 4.76 | 1/2 | 12.70 | 9314350004894 |
| T 7509 | 31.20 | 4.76 | 45/64 | 17.86 | 1-7/8 | 47.63 | 1/4 | 6.35 | 1/4 | 6.35 | 9314350004900 |
| T 7509 1/2 | 31.20 | 4.76 | 45/64 | 17.86 | 2-1/2 | 63.50 | 1/4 | 6.35 | 1/2 | 12.70 | 9314350004917 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
