Carbitool
TBF 8 Beading Fine Point Router Bit — 2 Flute Carbide Tipped
Part No: TBF 8 | Barcode: 9314350004658 | Product Group: R602 | Discount Group: Z0904

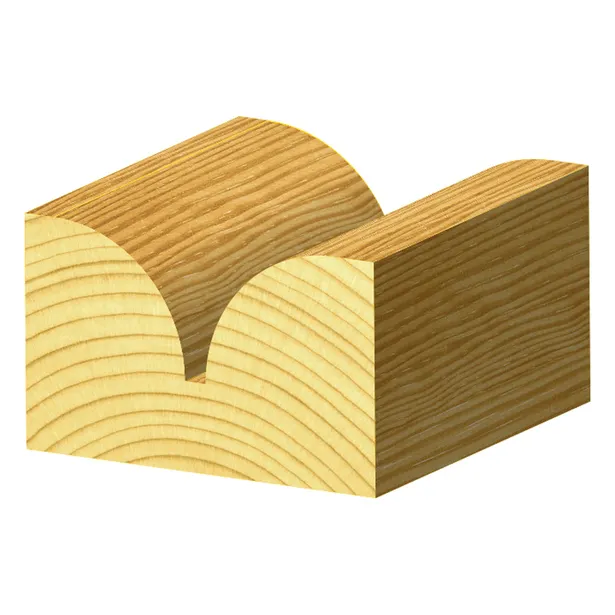

The Carbitool TBF 8 is a 2-flute carbide-tipped Beading Fine Point router bit with a 1/4″ R6.35mm radius, producing a medium-scale fine-point bead groove. Suited to panel door face grooving, surface beading, and decorative pattern work. 1/4″ shank.
2 Flute
Carbide Tipped
1/4″ Shank
Fine Point Bead
R6.35mm Radius
Suitable For
Hardwood
Softwood
MDF
Panel Doors
Decorative Grooving
Key Features & Benefits
- Medium-Scale Fine Point Profile — the 13.70mm A dimension and R6.35mm radius produce a more prominent bead groove than the TBF 4, suited to standard cabinet and panel door face work.
- Fine Point Base — the sharp point at the base gives a crisp, refined profile finish, preferred over flat-base beading when a delicate detail appearance is important.
- No Bearing — Fence or Template — use with a router table fence for consistent, repeatable groove placement.
- 2-Flute Carbide-Tipped — handles long production runs in hardwood and MDF.
When to Use This Bit
Use the TBF 8 for panel door face grooving and surface beading where a medium-scale fine point profile is needed. Larger and more prominent than the TBF 4 but still with the crisp fine-point base. For a flat-base version at the same size, use TBB 8. For edge beading with a ball bearing guide, see the TB series beading bits.
Pro Tip: Mark your fence position clearly before starting a batch run of panel doors — consistent fence distance from the bit guarantees matching grooves across all components without re-measuring.

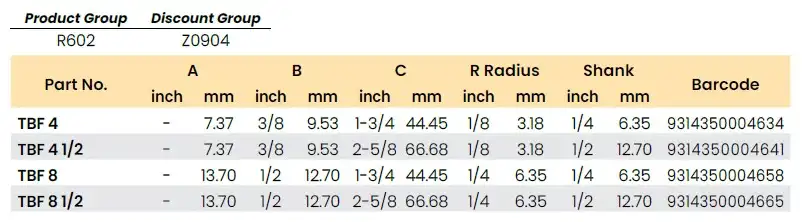

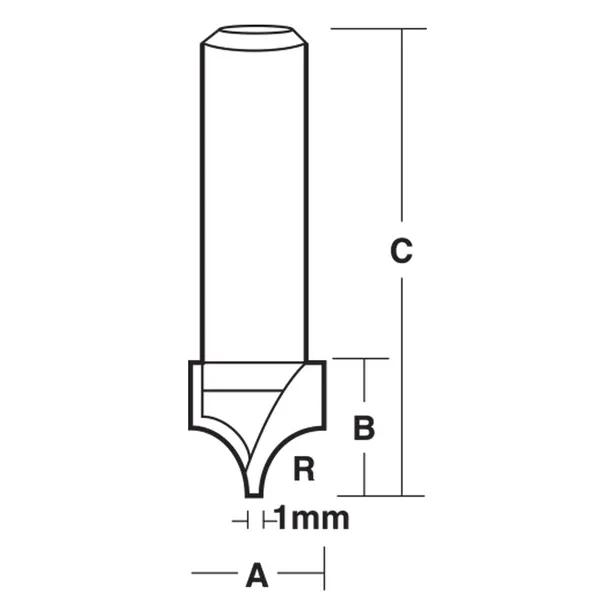

| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | R Radius inch | R mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TBF 4 | — | 7.37 | 3/8 | 9.53 | 1-3/4 | 44.45 | 1/8 | 3.18 | 1/4 | 6.35 | 9314350004634 |
| TBF 4 1/2 | — | 7.37 | 3/8 | 9.53 | 2-5/8 | 66.68 | 1/8 | 3.18 | 1/2 | 12.70 | 9314350004641 |
| TBF 8 ★ | — | 13.70 | 1/2 | 12.70 | 1-3/4 | 44.45 | 1/4 | 6.35 | 1/4 | 6.35 | 9314350004658 |
| TBF 8 1/2 | — | 13.70 | 1/2 | 12.70 | 2-5/8 | 66.68 | 1/4 | 6.35 | 1/2 | 12.70 | 9314350004665 |
| TBB 4 | 3/8 | 9.53 | 3/8 | 9.53 | 1-3/4 | 44.45 | 1/8 | 3.18 | 1/4 | 6.35 | 9314350004672 |
| TBB 4 1/2 | 3/8 | 9.53 | 3/8 | 9.53 | 2-1/4 | 57.15 | 1/8 | 3.18 | 1/2 | 12.70 | 9314350004689 |
| TBB 8 | 5/8 | 15.88 | 1/2 | 12.70 | 1-3/4 | 44.45 | 1/4 | 6.35 | 1/4 | 6.35 | 9314350004696 |
| TBB 8 1/2 | 5/8 | 15.88 | 1/2 | 12.70 | 2-1/4 | 57.15 | 1/4 | 6.35 | 1/2 | 12.70 | 9314350004702 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
