Carbitool

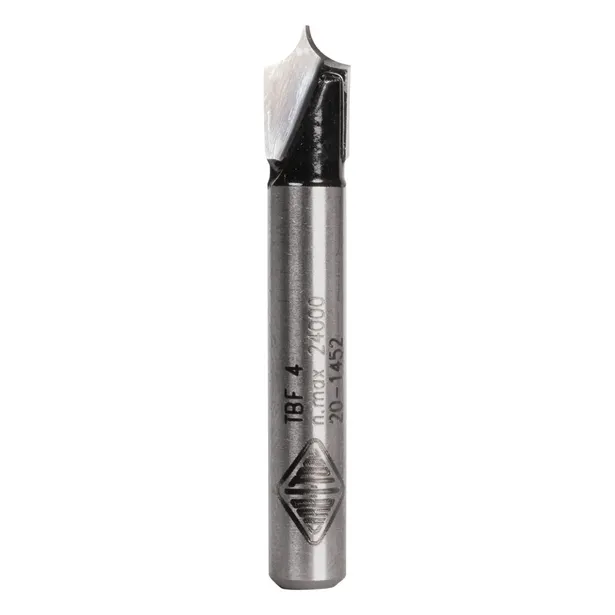

TBF 4 Beading Fine Point Router Bit — 2 Flute Carbide Tipped
Part No: TBF 4 | Barcode: 9314350004634 | Product Group: R602 | Discount Group: Z0904

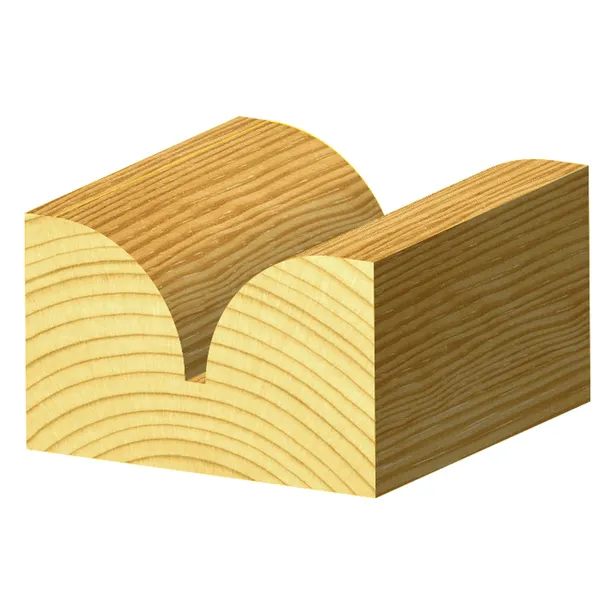

The Carbitool TBF 4 is a 2-flute carbide-tipped Beading Fine Point router bit. It produces a compact bead groove with a 1mm fine point base (R3.18mm), ideal for panel door grooving, decorative surface beading, and fine inlay detail work. 1/4″ shank. Use with fence or template.
2 Flute
Carbide Tipped
1/4″ Shank
Fine Point Bead
R3.18mm Radius
Suitable For
Hardwood
Softwood
MDF
Panel Doors
Decorative Grooving
Key Features & Benefits
- Fine Point Bead Profile — the sharp 1mm base point creates a crisp, precise groove suited to fine detail work where a flat bottom would look too heavy.
- Compact Size (A 7.37mm) — the small cutting diameter produces a delicate bead line, proportionally correct for narrow grooves on small panel door inserts and decorative inlay work.
- No Bearing — Fence or Template Use — position precisely against a router table fence for straight runs, or use with a clamped template guide for face forming.
- 2-Flute Carbide-Tipped — long service life in hardwood and MDF.
When to Use This Bit
Use the TBF 4 for fine bead grooves on panel door faces, cabinet drawer fronts, and decorative surface patterns where a crisp, narrow point profile is required. For a larger fine-point bead, choose TBF 8. For a standard (flat-base) bead profile, use the TBB 4 or TBB 8 instead.
Pro Tip: Fine point bits are most vulnerable at the tip. Always run at full router speed (18,000–22,000 RPM) with a steady, even feed rate. Avoid dwelling in the cut, as this generates heat at the point and can cause tip chipping.

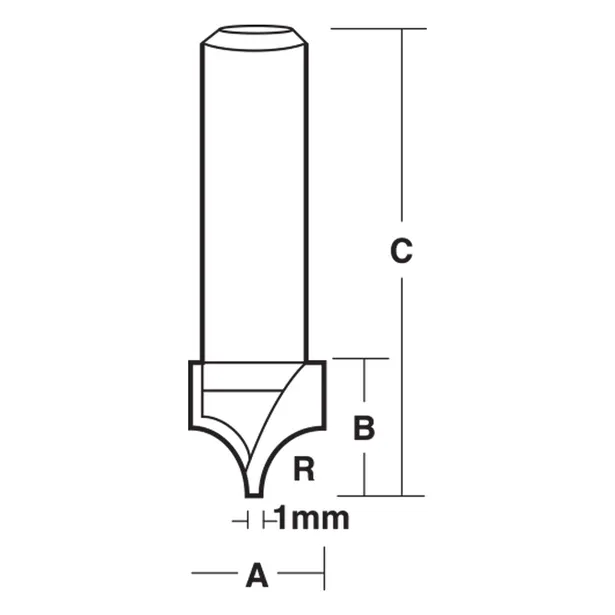

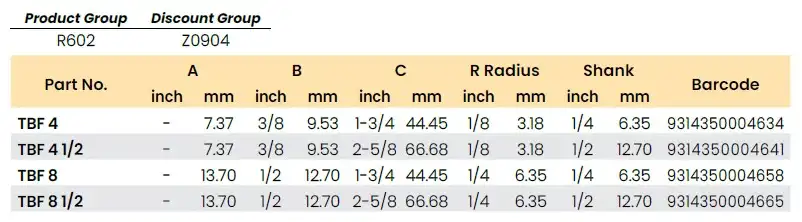

| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | R Radius inch | R mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TBF 4 ★ | — | 7.37 | 3/8 | 9.53 | 1-3/4 | 44.45 | 1/8 | 3.18 | 1/4 | 6.35 | 9314350004634 |
| TBF 4 1/2 | — | 7.37 | 3/8 | 9.53 | 2-5/8 | 66.68 | 1/8 | 3.18 | 1/2 | 12.70 | 9314350004641 |
| TBF 8 | — | 13.70 | 1/2 | 12.70 | 1-3/4 | 44.45 | 1/4 | 6.35 | 1/4 | 6.35 | 9314350004658 |
| TBF 8 1/2 | — | 13.70 | 1/2 | 12.70 | 2-5/8 | 66.68 | 1/4 | 6.35 | 1/2 | 12.70 | 9314350004665 |
| TBB 4 | 3/8 | 9.53 | 3/8 | 9.53 | 1-3/4 | 44.45 | 1/8 | 3.18 | 1/4 | 6.35 | 9314350004672 |
| TBB 4 1/2 | 3/8 | 9.53 | 3/8 | 9.53 | 2-1/4 | 57.15 | 1/8 | 3.18 | 1/2 | 12.70 | 9314350004689 |
| TBB 8 | 5/8 | 15.88 | 1/2 | 12.70 | 1-3/4 | 44.45 | 1/4 | 6.35 | 1/4 | 6.35 | 9314350004696 |
| TBB 8 1/2 | 5/8 | 15.88 | 1/2 | 12.70 | 2-1/4 | 57.15 | 1/4 | 6.35 | 1/2 | 12.70 | 9314350004702 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
