Description
Carbitool T6128 — V-Groove Router Bit available at Alltools Geelong.
Carbitool
T6128 60° V-Groove Router Bit for Sign and Lettering Carbitool
Part No: T6128 | Barcode: 9314350004412 | Product Group: R576
The Carbitool T6128 is a 2-flute carbide-tipped 60° V-groove bit designed specifically for sign and lettering work. Cuts a clean 60° included-angle vee groove. Note: not guaranteed against tip breakage due to thin carbide section at the point. 1/4" shank.
2 Flute
Carbide Tipped
60° Included Angle
1/4" Shank
Sign & Lettering
Compatible Materials
Hardwood
Softwood
MDF
Sign Blanks
Key Features & Benefits
- 60° included angle — the standard angle for sign lettering and decorative V-groove work; produces crisp, sharp-edged letter forms and groove patterns.
- Designed for sign work — the narrow 60° angle gives clean, well-defined characters and logos when used with a CNC router or guided template.
- 2-flute carbide-tipped — durable construction for production sign-making runs.
- Note on tip fragility — the fine carbide point is not guaranteed against breakage; avoid interrupted cuts, hard knots or abrupt entry angles.
When to Use This Bit
Choose the T6128 for V-groove lettering, sign carving and decorative groove work where a 60° angle is specified. Use in a CNC router or with a guide template for consistent results. For general-purpose chamfering and decorative vee grooves, the Carbitool chamfer series (T916B range) may be better suited.

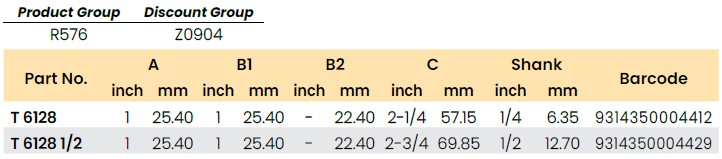

| Part No. | A (Cutting Dia.) inch | A mm | B1 inch | B1 mm | B2 mm | C (Overall Length) inch | C mm | Shank inch | Shank mm | Barcode | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T6128 ★ | 1 | 25.40 | 1 | 25.40 | — | 22.40 | 2-1/4 | 57.15 | 1/4 | 6.35 | 9314350004412 |
| T6128 1/2 | 1 | 25.40 | 1 | 25.40 | — | 22.40 | 2-3/4 | 69.85 | 1/2 | 12.70 | 9314350004429 |
★ You are viewing the highlighted variant. Note: these bits are not guaranteed against tip breakage due to thin section of carbide at the point.
