Carbitool T916 — Chamfering Router Bit available at Alltools Geelong.
Carbitool
Chamfering Router Bit with Pilot — 45° Chamfer, 1/4″ Shank
Part No: T 916 | Barcode: 9314350006966 | Product Group: R636

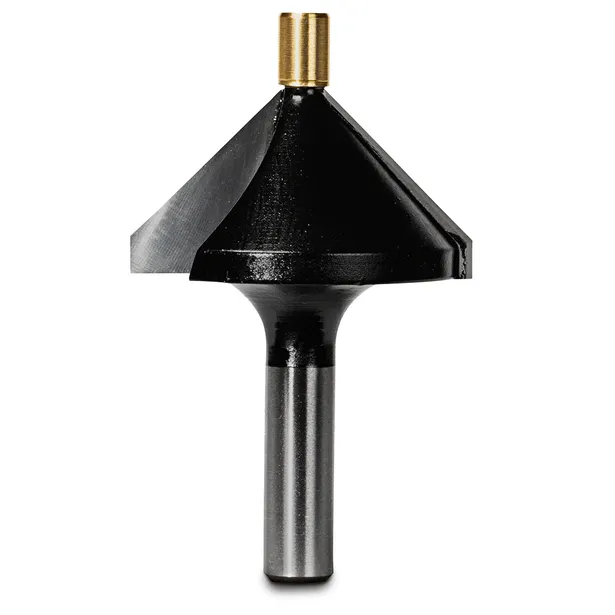

The Carbitool T 916 is a 2-flute carbide-tipped chamfering bit with pilot that cuts a 45° chamfer on edges and joints to help produce near-invisible joints and clean decorative edges. The built-in pilot eliminates the need for a fence or guide assembly.
2 Flute
Carbide Tipped
45° Chamfer
Built-In Pilot
1-3/16″ Cutting Dia.
1/4″ Shank
Suitable For
Hardwood
Softwood
MDF
Laminates
Edge Chamfering
Joint Preparation
Key Features & Benefits

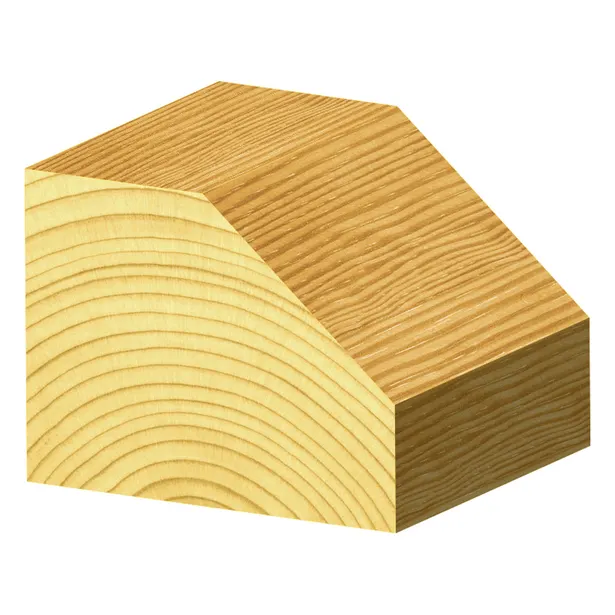

- 45° Chamfer Geometry — produces clean 45° chamfered edges ideal for mating joints, decorative edge work, and reducing sharp corners on furniture and cabinetry.
- Built-In Pilot — the integral pilot pin guides the bit along the workpiece edge without requiring a fence or guide bearing, making it quick to set up for freehand and handheld router work.
- 2-Flute Carbide-Tipped Construction — delivers a clean, smooth chamfer on timber, MDF, and laminates with long service life between sharpenings.
- 1/4″ Shank — suits standard 1/4″ trim routers and full-size routers, making this a versatile bit for both bench-top and handheld routing tasks.
When to Use This Bit
Choose the T 916 when you need a simple 45° chamfer on edges — for nearly invisible glue joints, softening sharp corners on furniture, or decorative chamfered edges on panels and frames. The built-in pilot makes it a good choice for handheld router work where setting up a fence would be time-consuming. For chamfering with a ball bearing guide (which gives greater precision and suits harder timbers), see the T 916 B (R641) and the broader chamfering range (R637–R644) which covers angles from 5° to 80° from vertical.
Pro Tip: For near-invisible mitre joints, chamfer both mating edges at 45° and apply glue to both faces — the long-grain glue surfaces created by the chamfer give a stronger bond than a standard butt joint.

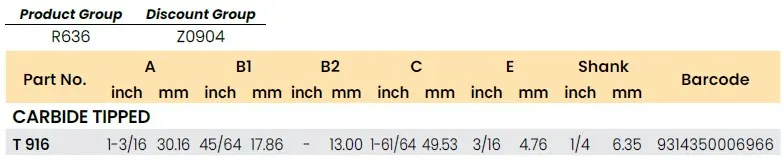

Product Specifications
| Part No. | A (Cutting Dia.) inch | A mm | B1 inch | B1 mm | B2 mm | C (Overall Length) inch | C mm | E mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T 916 ★ | 1-3/16 | 30.16 | 45/64 | 17.86 | 13.00 | 1-61/64 | 49.53 | 4.76 | 1/4 | 6.35 | 9314350006966 |
★ You are viewing this product. For ball bearing chamfer bits across a full range of angles (5°–80°), see the R637–R644 series.
