TB11 Ball Bearing for Router Bits — 1/2″ OD x 3/16″ ID
Part No: TB11 | Barcode: 9314350007666 | Product Group: TB

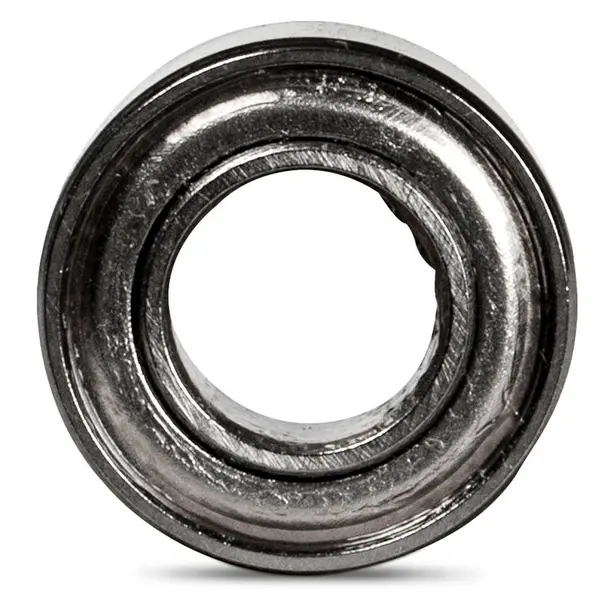

The Carbitool TB11 is a precision ball bearing designed as a replacement or upgrade guide bearing for router bit profiles. With a 1/2" OD, 3/16" ID and 3/16" width, it suits a range of profile and flush trim bits where accurate bearing guidance is critical to a clean, consistent edge.

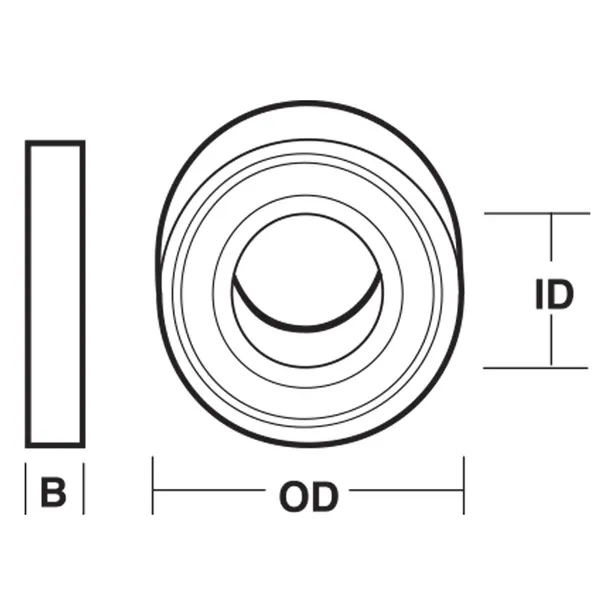

1/2" OD (12.70mm)
3/16" ID (4.76mm)
3/16" Width (4.76mm)
Sealed Bearing
Replacement Part
Key Features & Benefits
- Precision-ground sealed bearing — smooth, consistent rotation keeps profile bits tracking true against the workpiece edge without chatter or drift.
- 1/2" OD suits a wide range of profile bits — check your bit's bearing seat diameter before ordering to confirm fit.
- 3/16" ID bore — fits the standard 3/16" pilot pin used on many Carbitool and compatible profile router bits.
- Easy field replacement — when a bearing wears or seizes, swap it out rather than replacing the whole bit.
- Keep bearings clean and lightly oiled — after use, clean in glue solvent and apply a light oil to maximise service life.
When to Use This Bearing
The TB11 is a direct replacement bearing for Carbitool profile and trim bits that use a 1/2" OD x 3/16" ID bearing. If your existing bearing is seized, worn, or running rough, replacing the bearing with a TB11 will restore accurate, chatter-free cuts at a fraction of the cost of a new bit. Always clean the bearing seat and check the retaining hardware before fitting a replacement.
Pro Tip: After routing in resin-heavy timbers or materials with adhesive, clean bearings immediately in acetone or glue solvent — dried glue in the bearing race is the most common cause of premature failure. A drop of light machine oil after cleaning will keep the bearing spinning freely.
Product Specifications
| Part No. | OD inch | OD mm | ID inch | ID mm | Width inch | Width mm | Barcode |
|---|---|---|---|---|---|---|---|
| TB6 | 1/4" | 6.35 | 7/64" | 2.78 | 7/64" | 2.78 | 9314350009585 |
| TB7 | 1/2" | 12.70 | 1/4" | 6.35 | 1/4" | 6.35 | 9314350009479 |
| TB8 | 5/8" | 15.88 | 3/16" | 4.76 | 3/16" | 4.76 | 9314350007635 |
| TB9 | 3/8" | 9.53 | 1/8" | 3.18 | 3/16" | 4.76 | 9314350007642 |
| TB10 | 3/8" | 9.53 | 5/32" | 3.97 | 3/16" | 4.76 | 9314350007659 |
| TB11 ★ | 1/2" | 12.70 | 3/16" | 4.76 | 3/16" | 4.76 | 9314350007666 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
