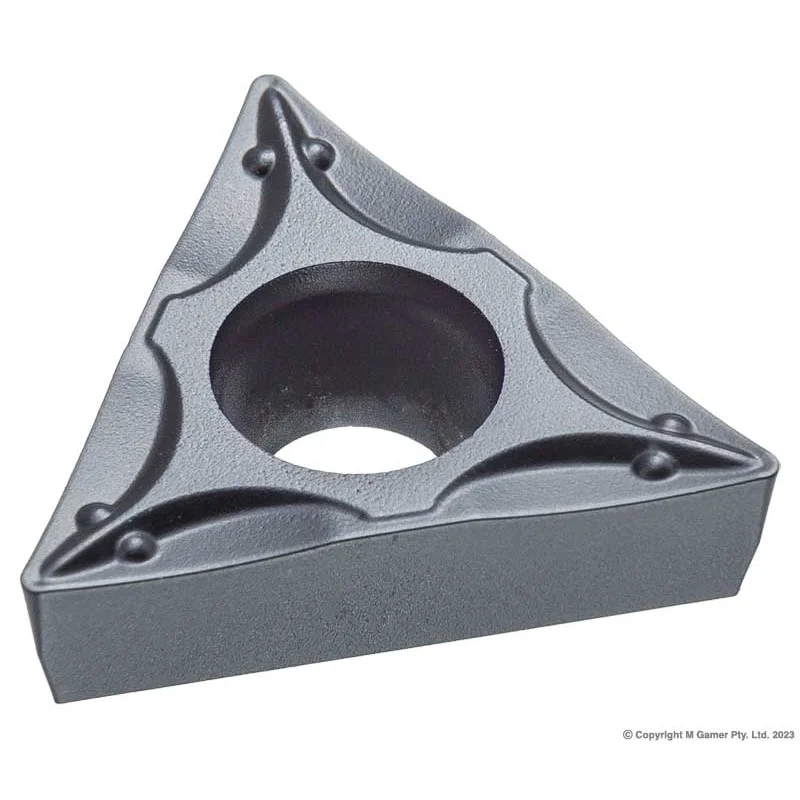

Harlingen TCMT16T308 Triangle Turning Insert — Pack of 10
Part No: TCMT16T308 | Barcode: 9346967026143 | Brand: Harlingen
Through-hole positive-rake triangle turning insert with a 0.8mm corner radius. The TCMT geometry suits semi-finishing of general purpose steel and pairs with positive-rake STGC and S-CR style holders.
Triangle Insert
16mm IC
0.8mm Radius
Positive Rake
Pack of 10
Through-hole
Suited For
General Purpose Steel
Stainless Steel
Aluminium
Key Features & Benefits
- ISO TCMT16T308 designation — Standard 60° triangle, 16mm inscribed circle, 3.97mm thick, 0.8mm corner radius — fits any TCMT-pocket holder.
- Positive-rake clearance angle — 7° clearance gives a sharp, free-cutting edge that suits softer materials and lighter lathes.
- Through-hole screw retention — Centre hole takes a clamping screw — tighter location than top-clamp on the same holder geometry.
- Three indexable corners — Three working tips per insert — 30 cutting edges per pack of ten.
- Designed for semi-finishing — Typical depth-of-cut 0.5-2.5mm with feed 0.05-0.25mm/rev on steel.
When to Use This Insert
Choose TCMT16T308 for finishing and semi-finishing turning in steel, stainless and aluminium where your holder accepts TCMT-style positive-rake triangles. The sharp positive geometry is ideal for lighter benchtop lathes that lack the rigidity for negative-rake roughing.
Authorised Australian Distributor — This product is sourced via Australia’s Harlingen distributor Gamer Industries and is backed by full Australian warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Shape | Triangle (60°) |
| Inscribed Circle | 16 mm |
| Thickness | 3.97 mm |
| Corner Radius | 0.8 mm |
| Clearance Angle | 7° (positive) |
| Retention | Through-hole |
| Tolerance | +0.002 / −0.004 |
| Pack Qty | 10 |
