Carbitool TEB15B 1/2 — Table Edge Router Bit with Return & Ball Bearing available at Alltools Geelong. Shop our full Table Edge Router Bit with Return & Ball Bearing range in Geelong.
Carbitool
Table Edge Router Bit with Return & Ball Bearing Guide — 2″ Profile, 1/2″ Shank
Part No: TEB 15 B 1/2 | Barcode: 9314350007147 | Product Group: R669
The Carbitool TEB 15 B 1/2 is a 2-flute carbide-tipped table edge bit that profiles the top edge and returns underneath the table in a single pass, producing a complete, finished edge without repositioning. The integrated ball bearing guide runs smoothly along the workpiece face for consistent, mar-free results.
2 Flute
Carbide Tipped
Ball Bearing Guide
Return Profile
2″ Cutting Dia.
1/2″ Shank
R1 6.35mm Radius
R2 16.00mm Radius
Suitable For
Hardwood
Softwood
MDF
Table Tops
Bench Tops
Furniture Edges
Key Features & Benefits
- Return Profile — the bit profiles the top edge and wraps underneath the board in one pass, saving time and eliminating the need to reposition or use a second bit.
- Ball Bearing Guide — the integrated bearing runs against the workpiece face, keeping the cut consistent and protecting the timber surface from burn or marking.
- 2-Flute Carbide-Tipped Construction — delivers a smooth, chatter-free finish at production feed rates with long edge life between sharpenings.
- Dual Radius Profile (R1 6.35mm, R2 16.00mm) — combines a tight top radius with a generous sweeping return, producing a classic table-top profile that suits both contemporary and traditional furniture styles.
- 1/2″ Shank — the heavy 1/2″ shank minimises vibration on this large-diameter cutter, ensuring a clean finish and reducing stress on the router.
When to Use This Bit
Choose the TEB 15 B 1/2 when you need a complete, finished table or bench-top edge in a single router-table pass. The return profile is ideal for dining tables, workbenches, kitchen islands, and any flat-panel furniture where a rounded-over top with a corresponding bottom return is required. If you need the same profile without the bottom return, consider a standard rounding-over bit from the R613 series. Use the TEB 16 B 1/2 variant for a slightly different R1/R2 radius combination. Always run this bit in a table-mounted router — the 2″ cutting diameter and 1/2″ shank demand a full-size router (minimum 2 HP recommended).
Pro Tip: Take two passes — a light climb cut first to score the fibres, then a full-depth finishing pass in the correct feed direction. This virtually eliminates tearout on figured or reversing-grain timbers.
Product Specifications

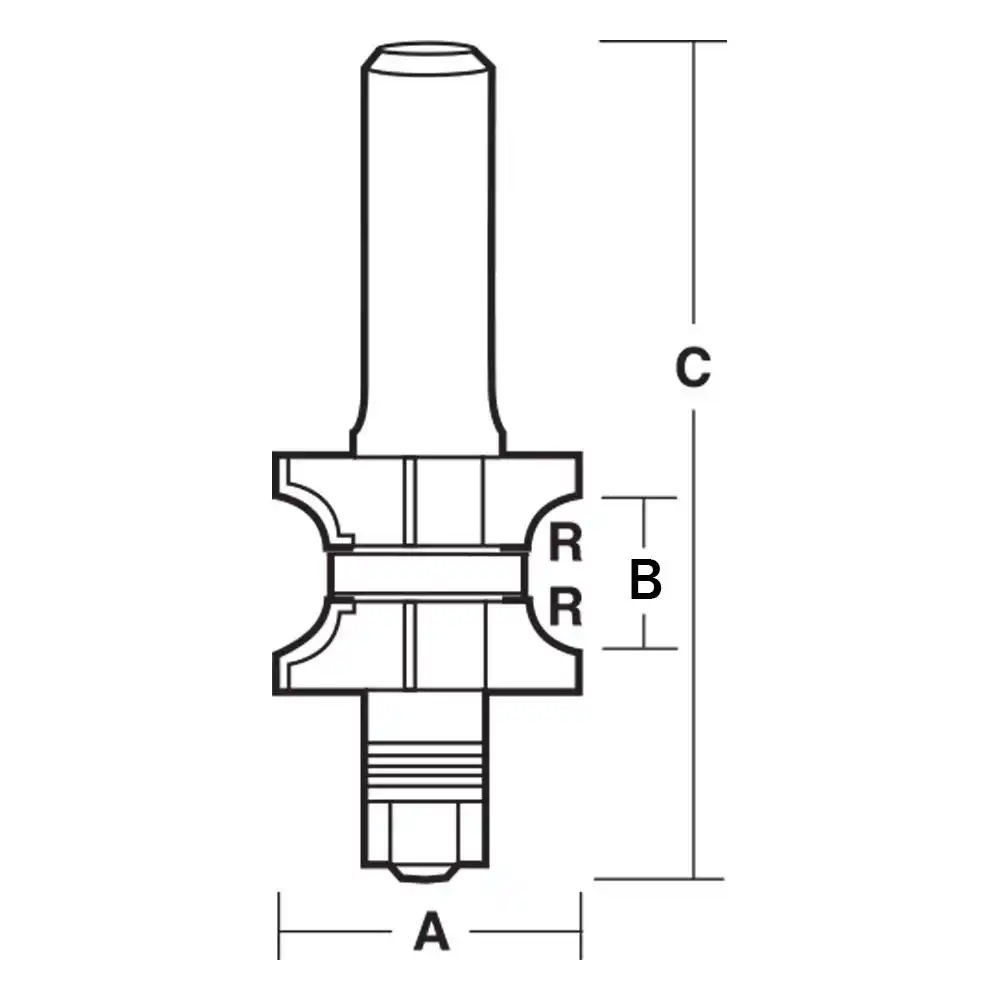

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | R1 Radius mm | R2 Radius mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TEB 15 B 1/2 ★ | 2 | 50.80 | 1-5/16 | 33.34 | — | 94.70 | 6.35 | 16.00 | 1/2 | 12.70 | 9314350007147 |
| TEB 16 B 1/2 | 2 | 50.80 | — | 36.70 | 3-27/32 | 97.63 | 8.00 | 16.00 | 1/2 | 12.70 | 9314350020184 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
