Description
Carbitool TML60 1/2 — Mitre Lock Router Bit available at Alltools Geelong. Shop our full Mitre Lock Router Bit range in Geelong.
Carbitool

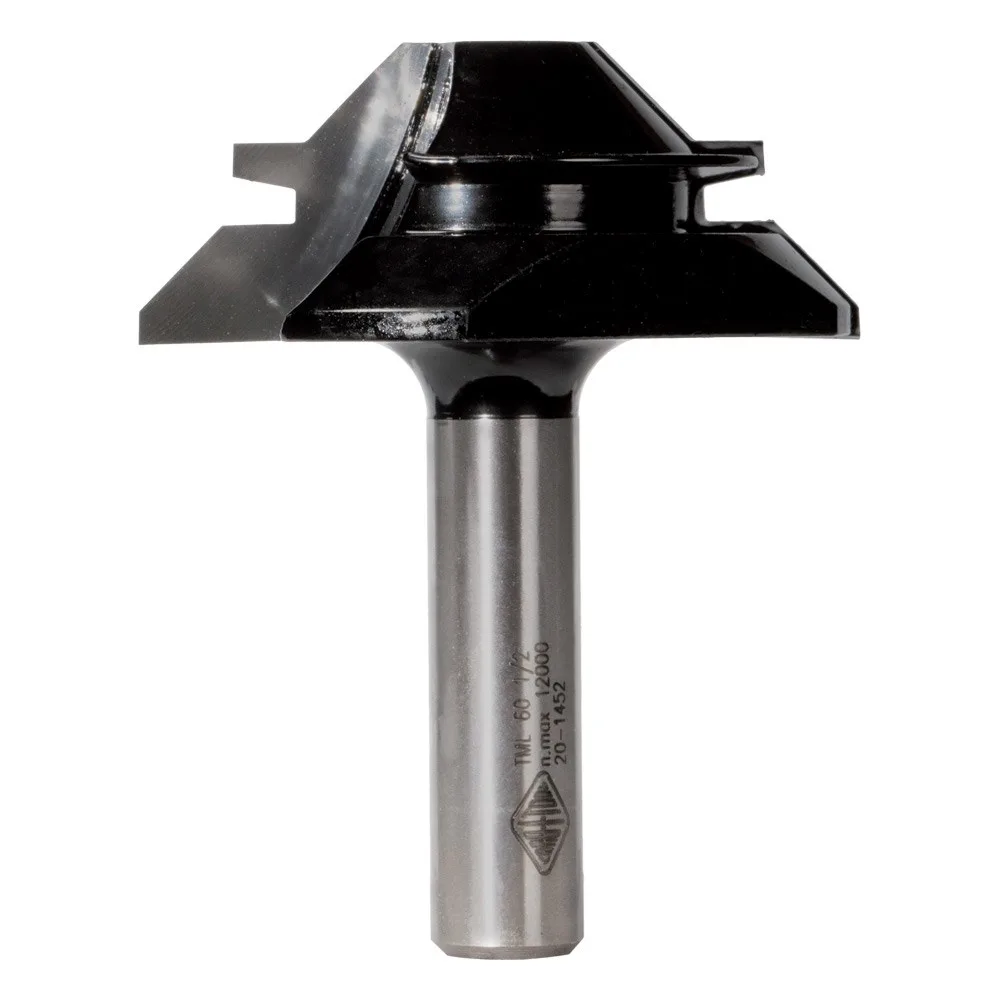

2 Flute Mitre Lock Bit — Carbide Tipped, 8.70–20mm Timber Thickness, 1/2″ Shank
Part No: TML 60 1/2 | Barcode: 9314350007475 | Product Group: R717

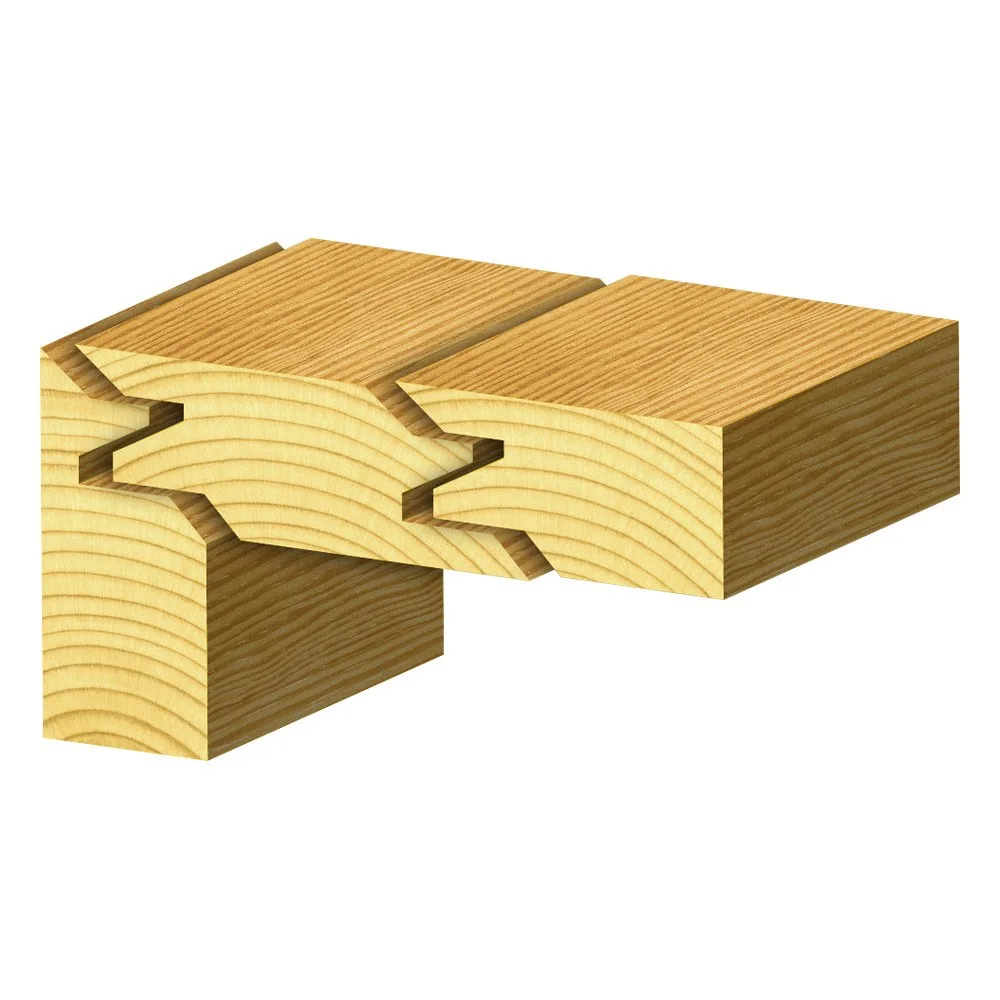

A 2-flute carbide-tipped mitre lock bit that produces interlocking 90° corner joints and reasonably strong straight joints using a single bit. For 90° joins, cut the second piece at 90°; for straight joints, simply invert the second piece.
2 Flute
Carbide Tipped
2-3/8″ Cutting Dia.
1/2″ Shank
90° Corner Joints
8.70–20mm Timber
Suitable For
Box Construction
Cabinet Carcasses
Hardwood
Softwood
MDF
90° Corner Joints
Key Features & Benefits
- Single bit for two joint types — creates both 90° mitre-lock corner joints and straight interlocking edge joints without bit changes.
- Interlocking profile — the mechanical interlock adds strength and self-alignment during glue-up, making assembly easier and reducing the need for clamps.
- Suitable for timber 8.70–20mm thick — covers a broad range of cabinet-making and box-construction stock thicknesses.
- 2-flute carbide-tipped construction — handles hardwood and MDF cleanly; resists heat build-up on long production runs.
When to Use This Bit
Use the TML 60 1/2 for 90° corner joins in box making, drawer boxes, small cabinet carcasses, and display cases where a clean external corner appearance is required. For 90° joins, machine the first piece with the face against the fence, then rotate the second piece 90°. For straight panel joins, simply invert the second piece. Timber thickness must be between 8.70mm and 20mm for correct fit. Always run in a router table. An instructional sheet is available on request.
Pro Tip: Cut a test joint in scrap of the same thickness before committing to finished material. Set the bit height precisely with a height gauge — even 0.2mm error will cause a step in the joint face.

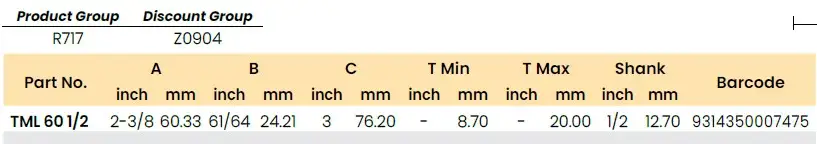

Product Specifications

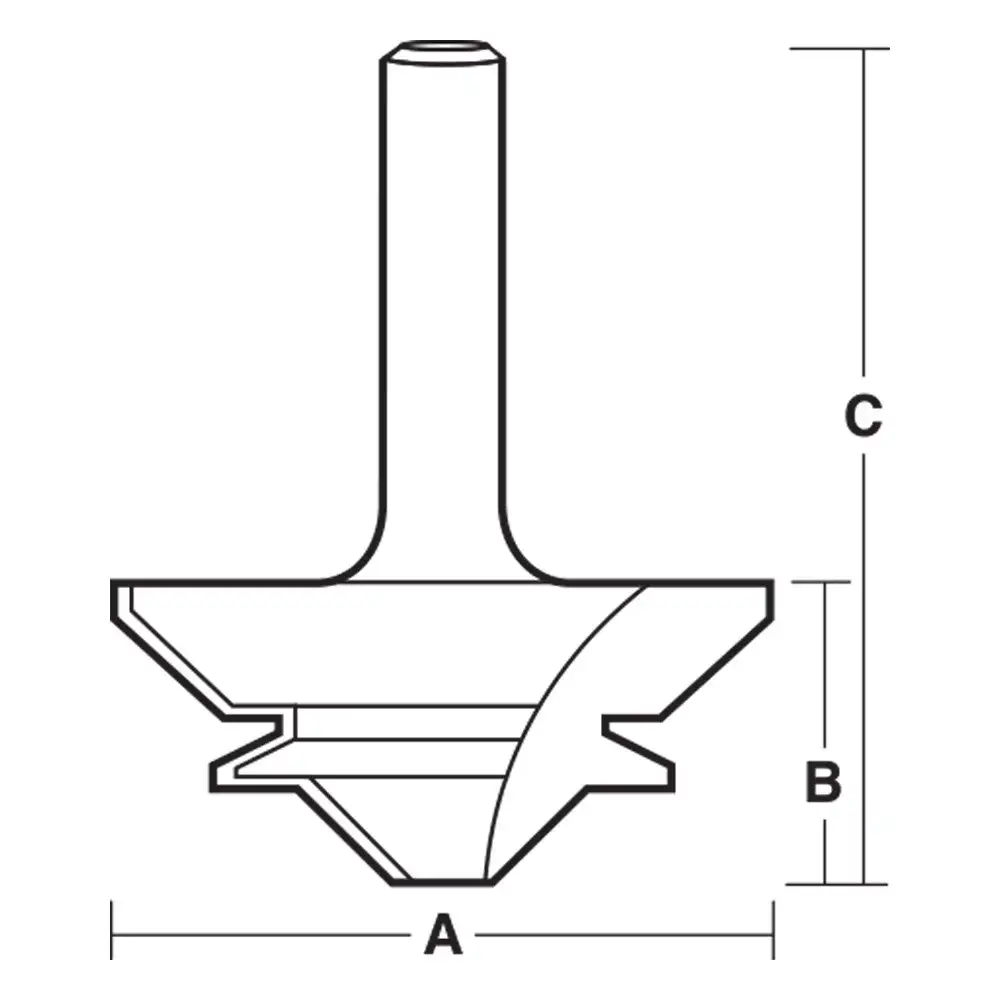

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | T Min mm | T Max mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TML 60 1/2 ★ | 2-3/8 | 60.33 | 61/64 | 24.21 | 3 | 76.20 | 8.70 | 20.00 | 1/2 | 12.70 | 9314350007475 |
★ You are viewing the highlighted variant. T = timber thickness range.
