Description
Carbitool TSHX8224B 1/2 — Inverted Flush Trimming Router Bit available at Alltools Geelong. Shop our full Inverted Flush Trimming Router Bit range in Geelong.
Carbitool

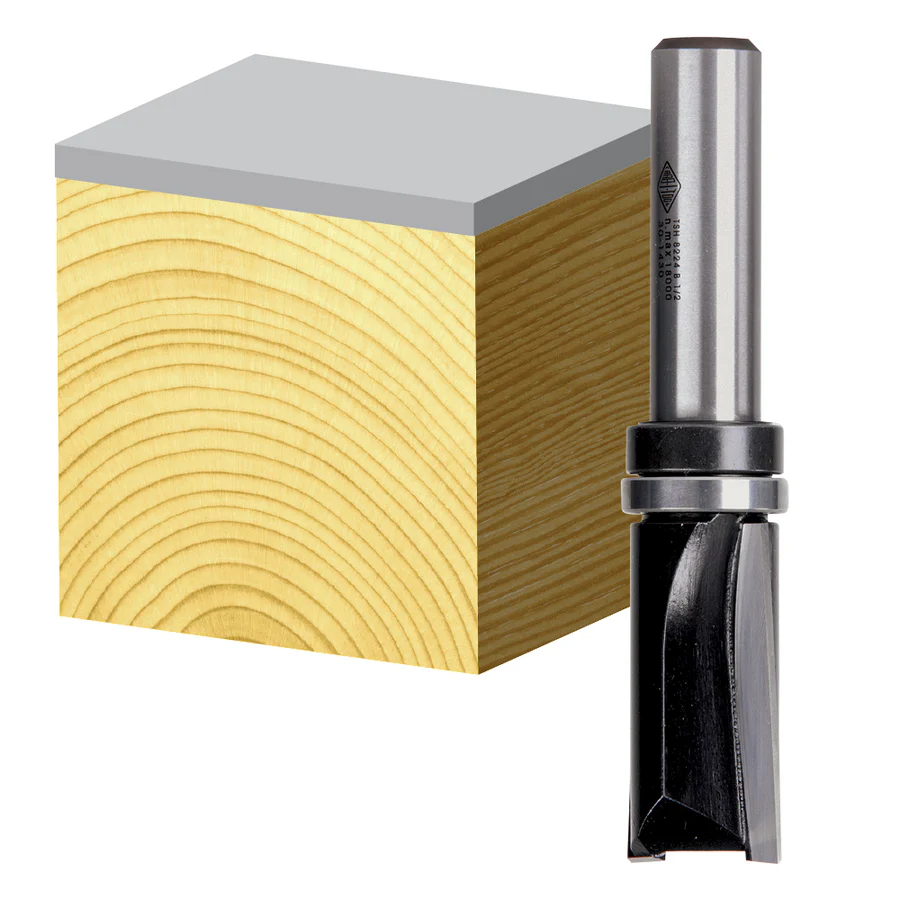

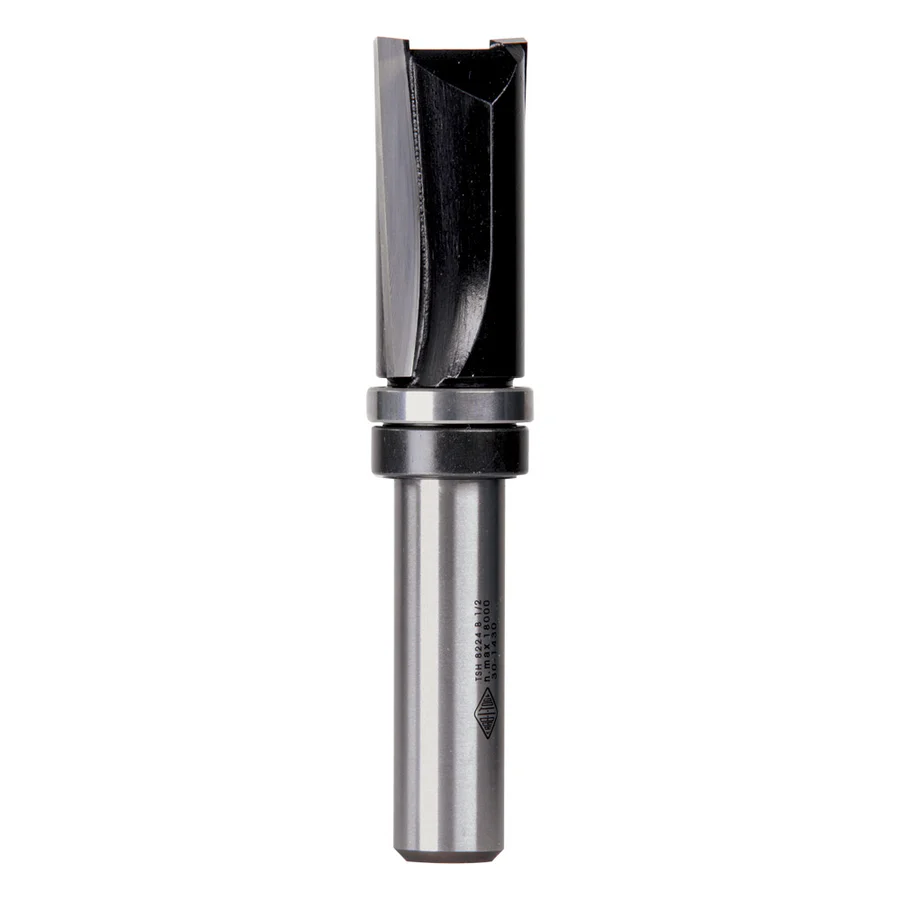

Inverted Flush Trimming Bit with Down Shear — Carbide Tipped, 3/4″ (19.05mm)
Part No: TSHX 8224 B 1/2 | Barcode: 9314350015210 | Product Group: R541
A carbide-tipped inverted flush trimming bit with a down shear cutting angle. Prevents delamination of veneers and laminates while enabling inverted (top-template) copy routing. A cost-effective alternative to down-cut spiral bits for laminate and veneer trimming applications.
Carbide Tipped
Inverted Bearing
Down Shear
No Delamination
3/4″ (19.05mm) Dia.
1/2″ Shank
Key Features & Benefits
- Down shear + inverted bearing — combines clean top-face finish of down shear with inverted bearing position for top-template copy routing without delamination.
- Cost-effective — carbide-tipped construction delivers down-cut spiral performance at lower cost for production laminate trimming.
When to Use This Bit
Use the TSHX 8224 B 1/2 when routing veneers and laminates with a top-mounted template where top-face delamination is a concern. Bearing TB 4 available separately.

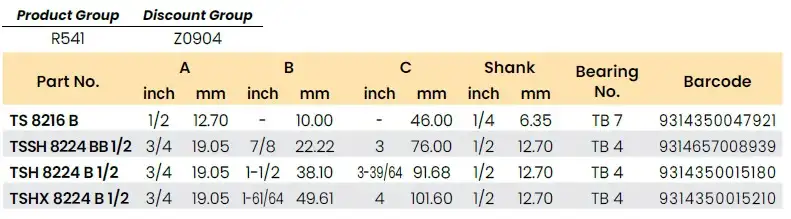

Product Specifications
| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | Shank inch | Shank mm | Bearing | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|
| TS 8216 B | 1/2 | 12.70 | – | 10.00 | – | 46.00 | 1/4 | 6.35 | TB 7 | 9314350047921 |
| TSSH 8224 BB 1/2 | 3/4 | 19.05 | 7/8 | 22.22 | 3 | 76.00 | 1/2 | 12.70 | TB 4 | 9314657008939 |
| TSH 8224 B 1/2 | 3/4 | 19.05 | 1-1/2 | 38.10 | 3-39/64 | 91.68 | 1/2 | 12.70 | TB 4 | 9314350015180 |
| TSHX 8224 B 1/2 ★ | 3/4 | 19.05 | 1-61/64 | 49.61 | 4 | 101.60 | 1/2 | 12.70 | TB 4 | 9314350015210 |
★ You are viewing the highlighted variant.
