HAFCO-WOODMASTER

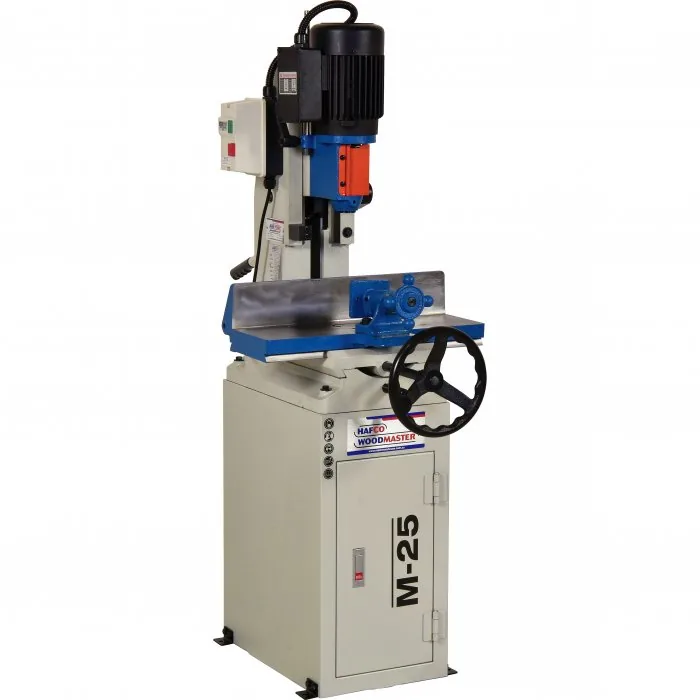

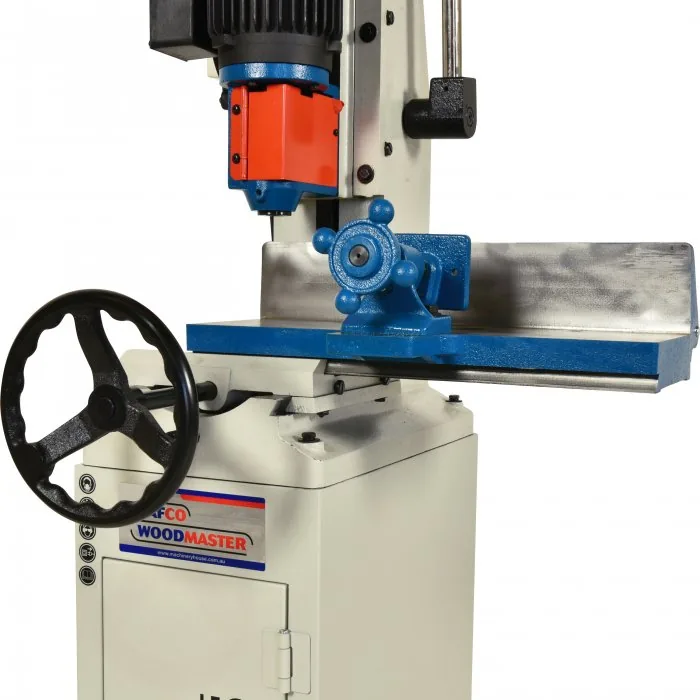

Chisel Morticer — M-25, 160mm timber width capacity
Part No: W345 | Barcode: 9344195030116 | Model: M-25
HAFCO-WOODMASTER M-25 Chisel Morticer (160mm timber width capacity). This heavy-duty chisel morticer handles up to 25mm in softwood, featuring a cast iron frame and a fabricated steel stand. A single handwheel controls both longitudinal and lateral table movements, eliminating table “skewing,” a common issue in…
Model M-25
160mm timber width capacity
Timber Capacity: 160 mm
Vertical Head Stroke: 125 mm
Motor Power: 0.75 / 1
Voltage: 240 V
Key Features & Benefits
- Morticer capacity: 25mm chisel in softwood & 19mm chisel in hardwood
- 160mm timber width capacity
- 125mm head stroke
- Heavy cast iron construction

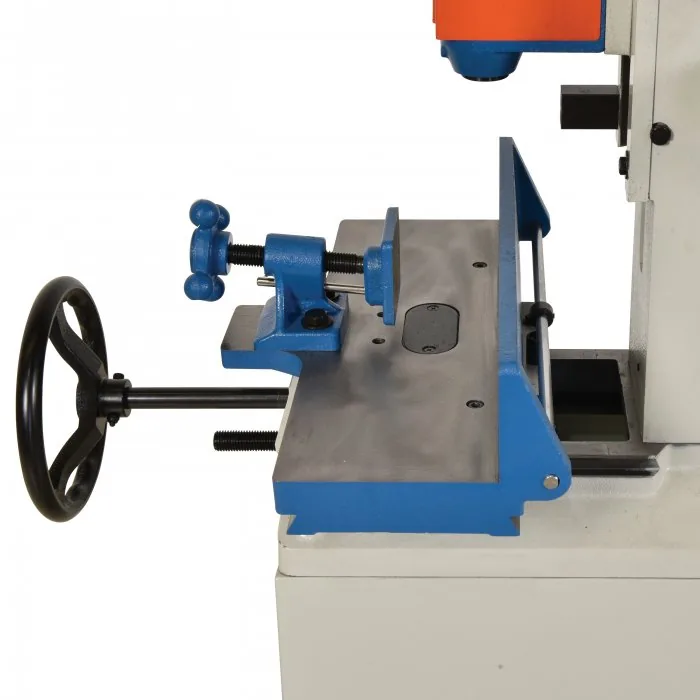

- 3-position job clamp & depth stop

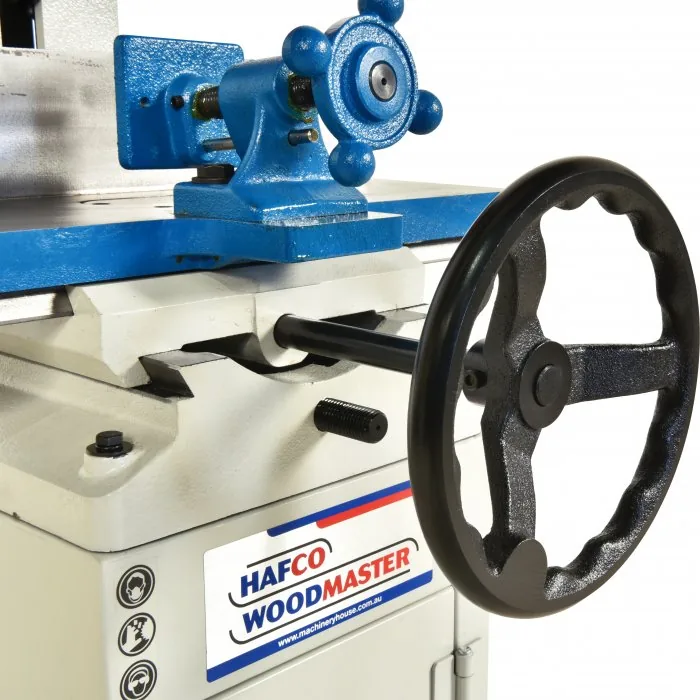

- Long and cross hand wheel movement
- Gast strut supports head for smooth movement

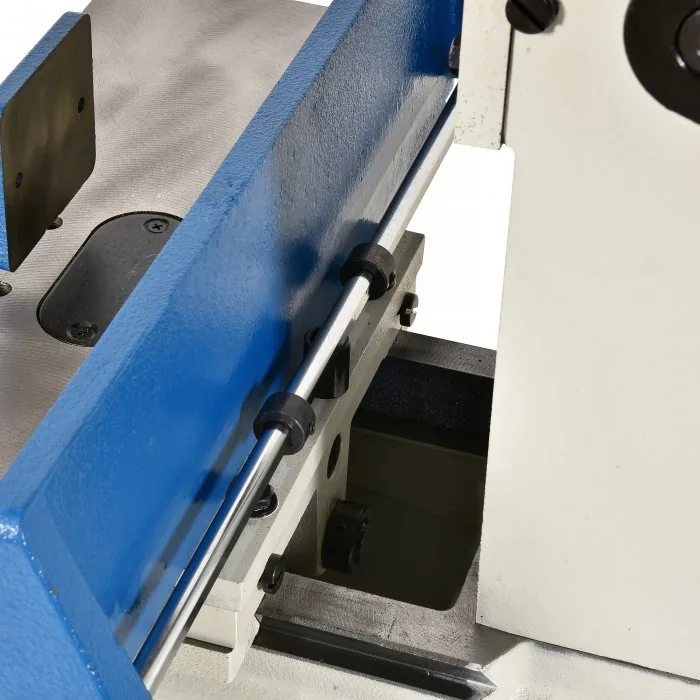

- Adjustable table length stop mounted to rear of table
- 255 x 180mm table movement

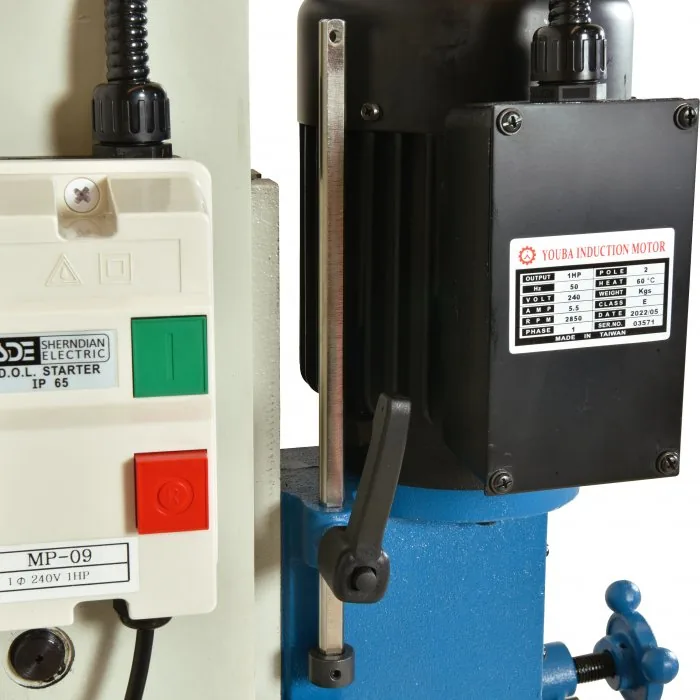

- Magnetic safety switch
- Overall height 1700mm
- 0.75kW / 1hp 240V motor
- Quality Taiwanese Manufacturer
About This Product
This heavy-duty chisel morticer handles up to 25mm in softwood, featuring a cast iron frame and a fabricated steel stand. A single handwheel controls both longitudinal and lateral table movements, eliminating table “skewing,” a common issue in other models. The material clamp adjusts for various workpiece widths, while the multi-position down-feed lever ensures comfortable operation with optimal leverage. A gas strut in the rear column enables smooth headstock travel and allows “parking” at any position. The large cast iron table includes a tall rear fence and an easily adjustable depth stop for consistent accuracy. Designed for busy workshops, this reliable machine delivers years of precise, trouble-free performance. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W345) for collection in store.
In the Box

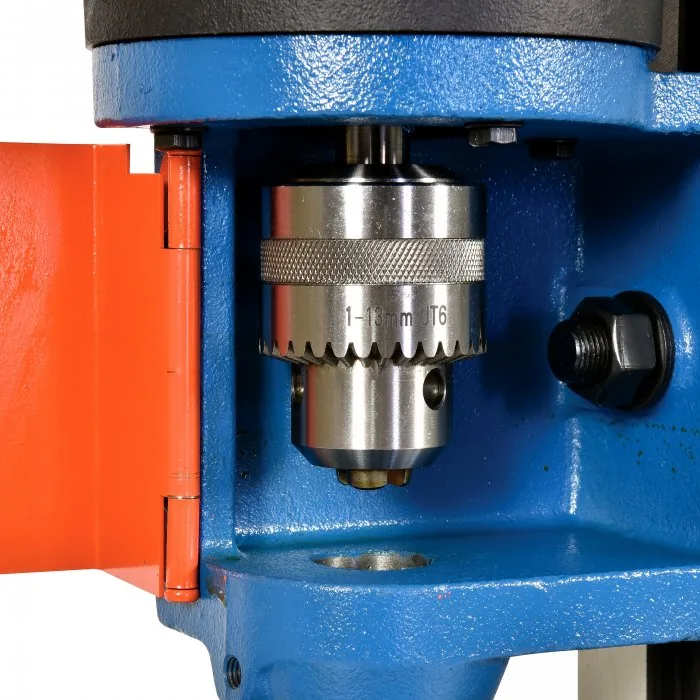

- 1 x collar reducing bushes: Ø28.5 – Ø19mm (OD -I D)
- 1 x collar reducing bushes: Ø30.2 – Ø15.9mm (OD – ID)

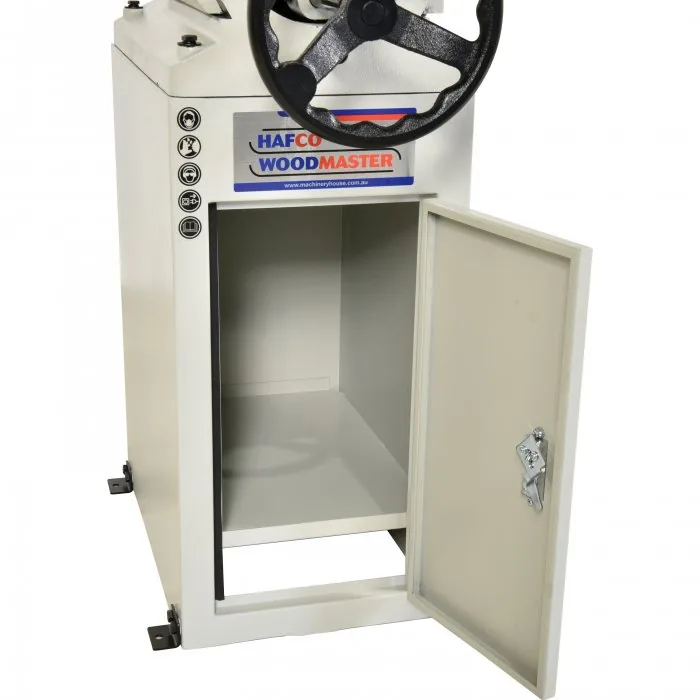

- Stand with storage cabinet
Product Specifications
| Specification | Detail |
|---|---|
| Timber Capacity (mm) | 160 |
| Table Movement (mm) | 255 x 180 |
| Vertical Head Stroke (mm) | 125 |
| Collar Reducing Bush (ID) (mm) | Ø19 & Ø15.9 |
| Motor Power (kW / hp) | 0.75 / 1 |
| Voltage (V) | 240 |
| Floor Space (W x D x H) (mm) | 940 x 750 x 1720 |
| Nett Weight (kg) | 160 |
