Description
HAFCO-WOODMASTER

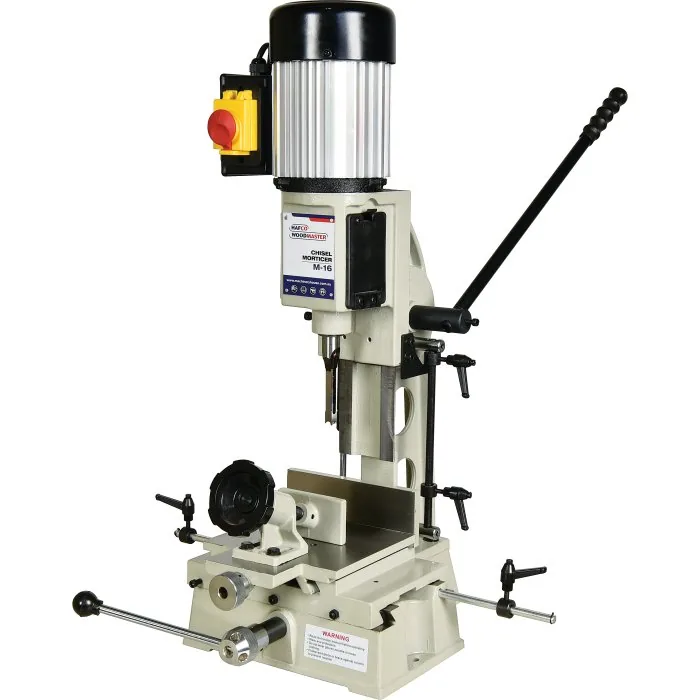

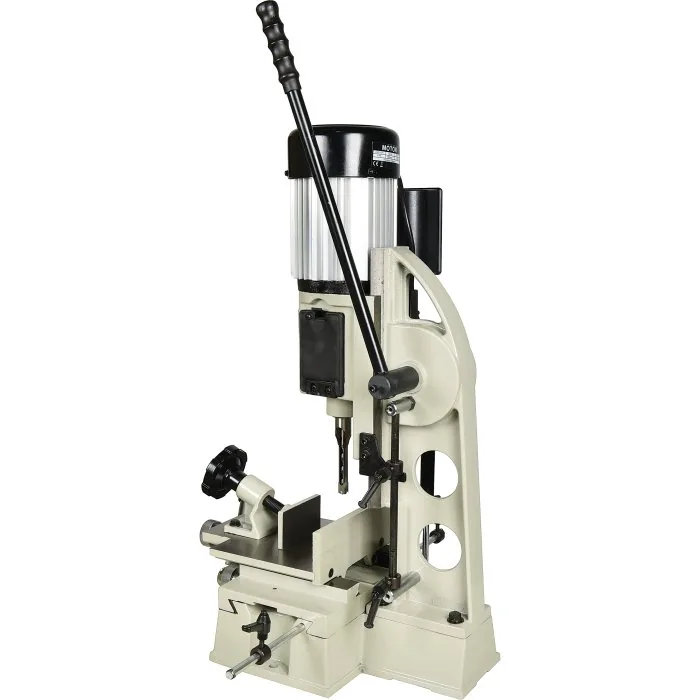

Chisel Morticer — M-16, 125mm timber width capacity
Part No: W347 | Barcode: 9344195008597 | Model: M-16
HAFCO-WOODMASTER M-16 Chisel Morticer (125mm timber width capacity). Heavy cast iron construction
Model M-16
125mm timber width capacity
Timber Capacity: 125 mm
Vertical Head Stroke: 120 mm
Motor Power: 0.37 / 1/2
Voltage: 240 V
Key Features & Benefits
- 16mm chisel capacity
- 125mm timber width capacity

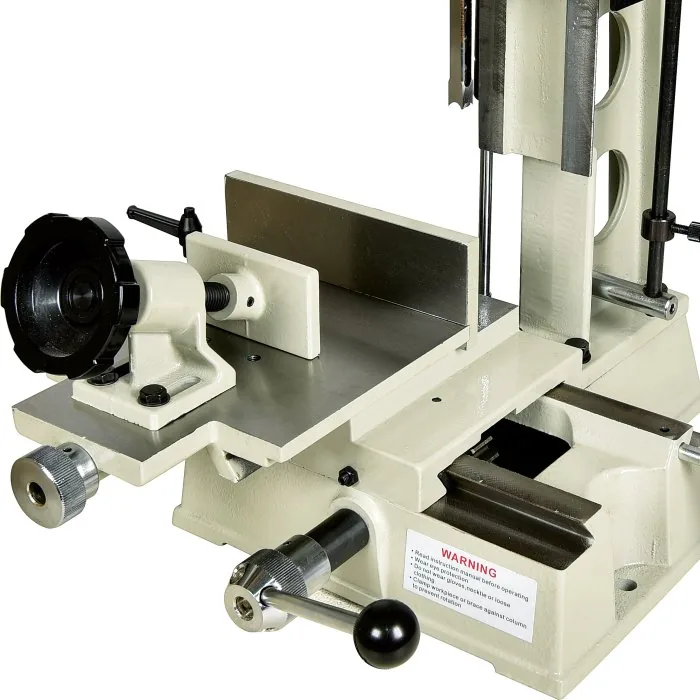

- Quick action hand wheel material clamp
- 120mm vertical head stroke
- 165mm lateral (left to right) stroke
- 76mm maximum mortice depth

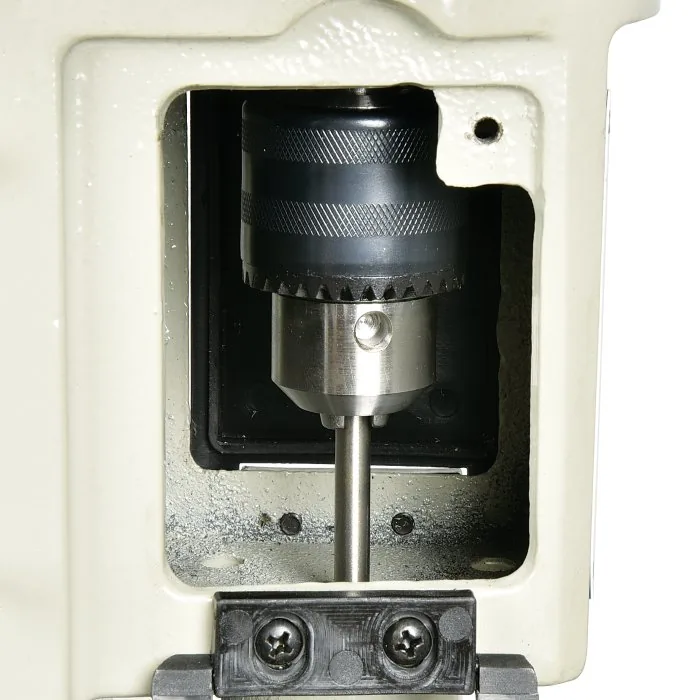

- 1-13mm drill chuck capacity
- 1400rpm spindle speed
- 370W 240V motor

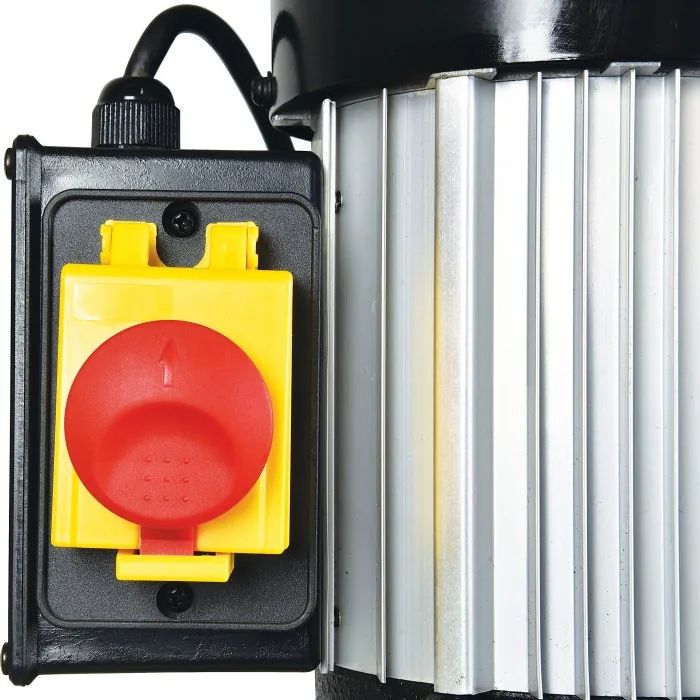

- Magnetic switch with emergency stop
About This Product
Heavy cast iron construction This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W347) for collection in store.
In the Box
- 1 x Chisel (Ø3/8″ x 19mm collar)
- 1 x Collar reducing bush Ø25mm OD – Ø19mm ID
Product Specifications
| Specification | Detail |
|---|---|
| Timber Capacity (mm) | 125 |
| Table Movement (mm) | 160 x 46 |
| Vertical Head Stroke (mm) | 120 |
| Collar Reducing Bush (ID) (mm) | Ø19 |
| Motor Power (kW / hp) | 0.37 / 1/2 |
| Voltage (V) | 240 |
| Floor Space (W x D x H) (mm) | 470 x 500 x 750 |
| Nett Weight (kg) | 46 |
