Master Q

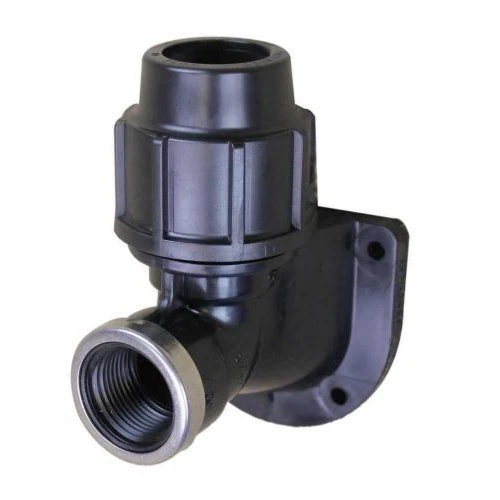

Master Q Wall Plate — 25mm × 3/4" BSP Poly (158001920)
Part No: 158001920 | Barcode: 22273 | System: PE100 SDR11
Master Q 158001920 is a backplate-mounted wall outlet with a 25mm push-fit pipe end and a 3/4″ BSP female thread, used to terminate a 25mm compressed-air drop neatly against a wall or post. The flanged plate screws to the surface and anchors the outlet so the connected tool or hose can be coupled and uncoupled without stressing the pipe.
25mm — 3/4" BSP F
Wall-Mounted Outlet
Backplate Anchored
Push-Fit One End
Threaded Outlet
Suitable For
Wall Tool Outlets
Drop-Point Terminations
Hose Reel Mounts
Bench & Bay Air Points
Key Features & Benefits
- Flanged wall backplate — screws to a wall or post so the outlet is rigidly anchored, not hanging on the pipe.
- 25mm push-fit + 3/4" BSP female — connects the poly drop to a threaded quick-coupler, valve or regulator.
- Neat termination — finishes a wall drop tidily at a tool station or bay.
- Reduces pipe stress — coupling and uncoupling loads go into the wall plate, not the air line.
When to Use This Fitting
Use the 158001920 wall plate to terminate a 25mm air drop at a fixed point — a bench, bay or hose-reel station — where you want the outlet rigidly mounted. Screw in a quick-coupler or valve to finish. See the full Master Q range below.
Authorised Australian Supplier — This product is part of the Master Q compressed-air piping system, sourced from Master Q Australia with full local supplier support and warranty.
Master Q Compressed-Air Poly Piping System
| Part No. | Type | Size / Connection |
|---|---|---|
| 025PE100/10 | Poly Pipe (PE100 SDR11) | 25mm × 6m length |
| R210.025.025 | Straight Coupler | 25mm — 25mm |
| R213.025.025 | 90° Elbow | 25mm — 25mm |
| 727156307 | 45° Elbow | 25mm — 25mm |
| R214.025.000 | Equal Tee | 25mm — 25mm |
| 727206308 | Equal Tee | 32mm — 32mm |
| R221.025.000 | End Cap | 25mm |
| EP3 | End Cap | 32mm |
| C3 | Straight Coupler | 32mm — 32mm |
| M31-2520 | Female Threaded Connector | 25mm — 3/4″ BSP F |
| 727116307 | Female Threaded Elbow | 25mm — 3/4″ BSP F |
| R215.025.012 | Threaded Tee | 25mm — 1/2″ BSP F |
| 158001920 ★ | Wall Plate | 25mm — 3/4″ BSP F |
| PC25 | Pipe Clip | 25mm |
| PCC32 | Pipe Clip | 32mm |
| SV14-10 | Safety Relief Valve | 1/4″ BSP |
★ You are viewing the highlighted item. The Master Q poly piping range push-fits together — mix pipe, couplers, elbows, tees, threaded take-offs and clips to build your compressed-air reticulation.
