Master Q

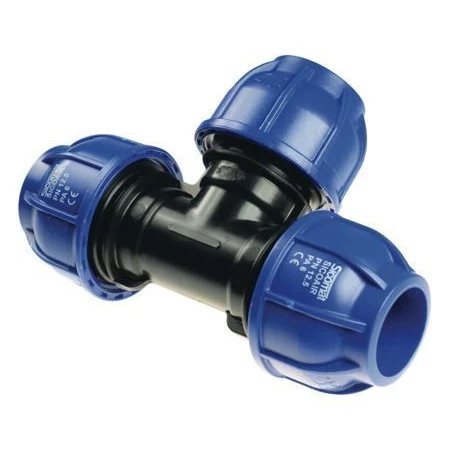

Master Q Equal Tee — 25mm Push-Fit (R214.025.000)
Part No: R214.025.000 | Barcode: 21688 | System: PE100 SDR11
Master Q R214.025.000 is a 25mm push-fit equal tee used to branch a 25mm compressed-air line into a side take-off without reducing pipe size. All three ports are 25mm push-fit and hand-tighten, letting you tap an extra leg or drop point off the main run in the Master Q poly piping system.
25mm — 25mm — 25mm
Equal Branch
Push-Fit Compression
Hand-Tightened
Demountable
Suitable For
Branching the Main Run
Adding Drop Points
Ring Mains
Workshop Reticulation
Key Features & Benefits
- Three equal 25mm ports — branch the line into a full-bore 25mm take-off with no flow reduction.
- Push-fit compression — each port seals onto 25mm pipe with O-ring and collet.
- Branch anywhere — splice a tee into an existing run to add a new leg or tool drop.
- Demountable — loosen and re-seal if the layout changes.
When to Use This Fitting
Use the R214.025.000 equal tee to split a 25mm air main into a branch — feeding a second run, a tool station or a drop point. Where the branch can be smaller, use a threaded tee instead. See the full Master Q range in the table below.
Authorised Australian Supplier — This product is part of the Master Q compressed-air piping system, sourced from Master Q Australia with full local supplier support and warranty.
Master Q Compressed-Air Poly Piping System
| Part No. | Type | Size / Connection |
|---|---|---|
| 025PE100/10 | Poly Pipe (PE100 SDR11) | 25mm × 6m length |
| R210.025.025 | Straight Coupler | 25mm — 25mm |
| R213.025.025 | 90° Elbow | 25mm — 25mm |
| 727156307 | 45° Elbow | 25mm — 25mm |
| R214.025.000 ★ | Equal Tee | 25mm — 25mm |
| 727206308 | Equal Tee | 32mm — 32mm |
| R221.025.000 | End Cap | 25mm |
| EP3 | End Cap | 32mm |
| C3 | Straight Coupler | 32mm — 32mm |
| M31-2520 | Female Threaded Connector | 25mm — 3/4″ BSP F |
| 727116307 | Female Threaded Elbow | 25mm — 3/4″ BSP F |
| R215.025.012 | Threaded Tee | 25mm — 1/2″ BSP F |
| 158001920 | Wall Plate | 25mm — 3/4″ BSP F |
| PC25 | Pipe Clip | 25mm |
| PCC32 | Pipe Clip | 32mm |
| SV14-10 | Safety Relief Valve | 1/4″ BSP |
★ You are viewing the highlighted item. The Master Q poly piping range push-fits together — mix pipe, couplers, elbows, tees, threaded take-offs and clips to build your compressed-air reticulation.
