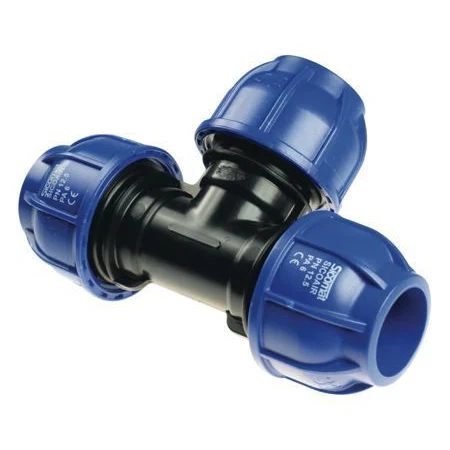

Master Q Equal Tee — 32mm Push-Fit (727206308)
Part No: 727206308 | Barcode: 21689 | System: PE100 SDR11
Master Q 727206308 is a 32mm push-fit equal tee used to branch a 32mm compressed-air main into a full-bore side take-off. All three 32mm ports push-fit and hand-tighten, suiting larger Master Q reticulation loops that carry more air than the 25mm range.
32mm — 32mm — 32mm
Equal Branch
Push-Fit Compression
Larger 32mm Bore
Demountable
Suitable For
Branching 32mm Mains
Higher-Flow Air Loops
Adding Drop Points
Factory Reticulation
Key Features & Benefits
- Three equal 32mm ports — full-bore 32mm branch with no flow reduction — for higher-demand air systems.
- Push-fit compression — seals onto 32mm pipe with O-ring and collet.
- Larger 32mm bore — carries more air than the 25mm range, suiting busier workshops and longer mains.
- Demountable — serviceable and re-positionable.
When to Use This Fitting
Use the 727206308 equal tee to branch a 32mm air main. Where the system steps down to 25mm, use the 25mm tee and a reducer. Combine with the wider Master Q poly system in the table below.
Authorised Australian Supplier — This product is part of the Master Q compressed-air piping system, sourced from Master Q Australia with full local supplier support and warranty.
Master Q Compressed-Air Poly Piping System
| Part No. | Type | Size / Connection |
|---|---|---|
| 025PE100/10 | Poly Pipe (PE100 SDR11) | 25mm × 6m length |
| R210.025.025 | Straight Coupler | 25mm — 25mm |
| R213.025.025 | 90° Elbow | 25mm — 25mm |
| 727156307 | 45° Elbow | 25mm — 25mm |
| R214.025.000 | Equal Tee | 25mm — 25mm |
| 727206308 ★ | Equal Tee | 32mm — 32mm |
| R221.025.000 | End Cap | 25mm |
| EP3 | End Cap | 32mm |
| C3 | Straight Coupler | 32mm — 32mm |
| M31-2520 | Female Threaded Connector | 25mm — 3/4″ BSP F |
| 727116307 | Female Threaded Elbow | 25mm — 3/4″ BSP F |
| R215.025.012 | Threaded Tee | 25mm — 1/2″ BSP F |
| 158001920 | Wall Plate | 25mm — 3/4″ BSP F |
| PC25 | Pipe Clip | 25mm |
| PCC32 | Pipe Clip | 32mm |
| SV14-10 | Safety Relief Valve | 1/4″ BSP |
★ You are viewing the highlighted item. The Master Q poly piping range push-fits together — mix pipe, couplers, elbows, tees, threaded take-offs and clips to build your compressed-air reticulation.
