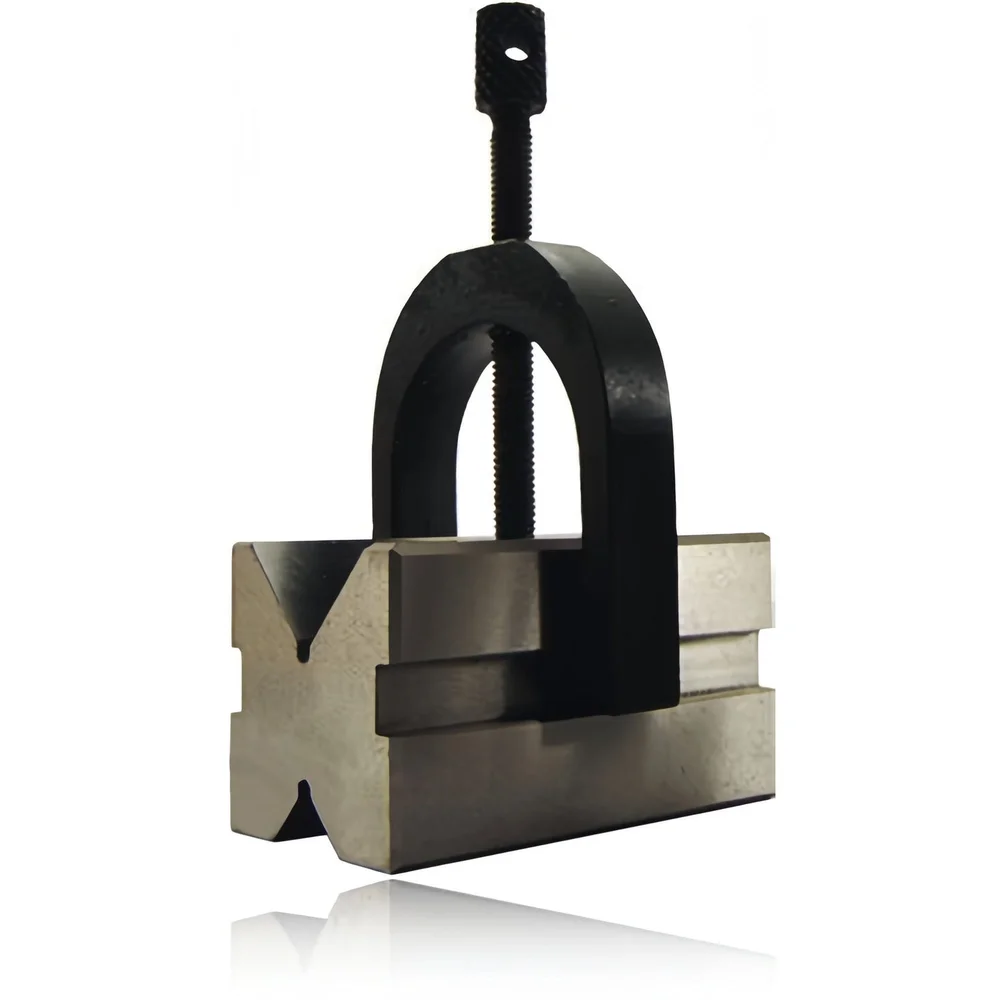

Intech V-Block Set — 2 Piece, 60mm with Clamps
Part No: CMVBCI080 | Barcode: 9333608004264 | Brand: Intech Tools
The Intech CMVBCI080 is a matched pair of precision V-blocks supplied with clamps. The blocks are quality steel, fully hardened and ground, and made as numbered pairs so the V-grooves and outer faces are identical between the two blocks. Use them on a surface plate, drill press table or mill to hold round stock for marking out, cross-drilling, slot milling or inspection.
Set of 2 (Matched Pair)
60mm Capacity
Hardened & Ground
With Clamps
Numbered Pair
Key Features & Benefits
- Matched numbered pair — the two blocks come from the same grinding operation so reference faces and V-angles match within tolerance, which matters when you sit a long shaft across both.
- Fully hardened and ground — through-hardened so the V-faces stay square and don’t ding from clamp pressure or repeated handling.
- Supplied with clamps — bridge clamps slide over the block to lock the workpiece in the V — no extra hardware to source.
- Multi-face datum — outer faces are ground square and parallel, so you can rotate the block on a plate or table without losing reference.
- 60mm capacity — accepts round stock up to roughly 60mm diameter, which covers most general fitting and toolroom work.
When to Use V-Blocks
Use the CMVBCI080 pair whenever you need to hold round stock on a flat surface — marking out a cross-hole on a shaft, drilling a hole through round bar on a drill press, milling a flat or keyway across a journal, or checking concentricity on a surface plate. The matched pair lets you support both ends of a longer shaft with the centreline guaranteed parallel to the reference face.
Pro Tip: Always use the clamp — even for marking out. The slightest knock will rotate an unclamped shaft a few degrees and ruin your scribed line. Tighten the clamp just enough to stop rotation; over-tightening can lift the work out of the V on smaller diameters.
Product Specifications
| Part No. | Capacity | Barcode |
|---|---|---|
| — | 30 x 30 x 50 mm | — |
| — | 40 x 40 x 50 mm | — |
| CMVBCI080 ★ | 50 x 50 x 63 mm (60mm capacity) | 9333608004264 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
