Intech Tools
Intech Knurling Tool — Double Wheel
Part No: KTH1017 | Barcode: 9333608003458 | Brand: Intech Tools

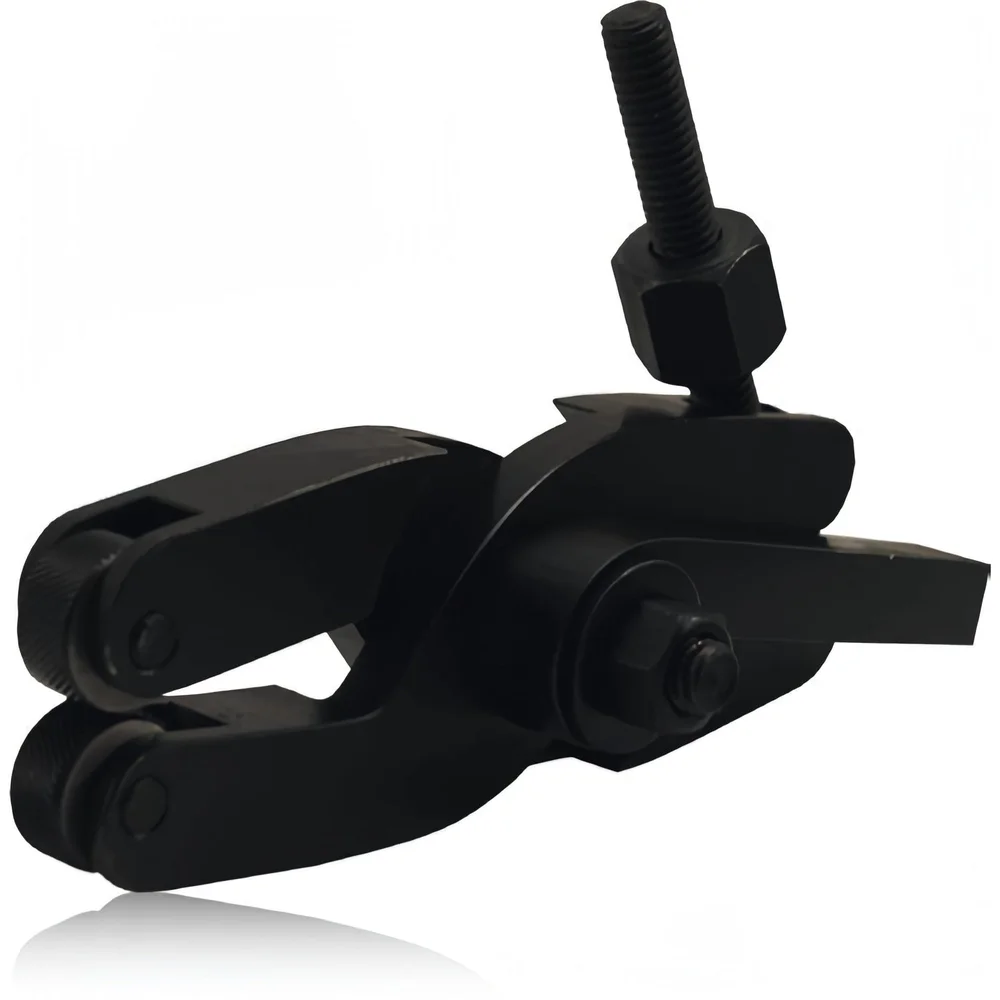

The Intech KTH1017 is a straddle / two-wheel knurling tool with one wheel above and one below the work. The wheels balance the radial load on the spindle, which means you can knurl longer or thinner parts without bowing them and without putting heavy side-load on the headstock bearings. The body is hardened steel and the wheels are user-replaceable when worn or when you want a different pattern.
Double Wheel
Hardened Steel
Replaceable Wheels
For Engineering Lathes
Diamond / Straight Patterns
Key Features & Benefits
- Double Wheel configuration — chosen to match the way you load the spindle and the kind of parts you knurl most.
- Hardened steel body — stays rigid under the heavy radial load knurling generates.
- Replaceable knurl wheels — swap worn wheels or change pattern (diamond, straight, fine, coarse) without buying a new tool.
- Standard shank — mounts in any common lathe tool post.
- Forms knurls cold — the wheels press the pattern into the work; no chip-cutting, no swarf, just a clean grippy texture.
When to Use This Knurling Tool
Use the KTH1017 when you are putting a diamond or straight knurl onto round bar — handles, control knobs, press fits that need extra grip, or any part where you want a textured surface for the operator. Run the lathe slow (60-150 RPM is typical), use plenty of cutting oil, and feed in straight off the cross-slide rather than along the work.
Pro Tip: Calculate your starting diameter first. Knurling raises the surface — typically by about half the pitch of the wheel — so a 25mm finished knurl needs the work turned to roughly 24.7mm before you start. Measure the wheel pitch and back off accordingly, otherwise the diamonds will be flat-topped or the bar will be oversize.
Product Specifications
| Part No. | Type | Barcode |
|---|---|---|
| KTH1015 | 3-Way / Revolving Head | 9333608003465 |
| KTH1017 ★ | Double Wheel | 9333608003458 |
| KTH1019 | Single Wheel | 9333608003441 |
★ You are viewing the highlighted variant. Other types in this series are also available.
