Hafco Metalmaster

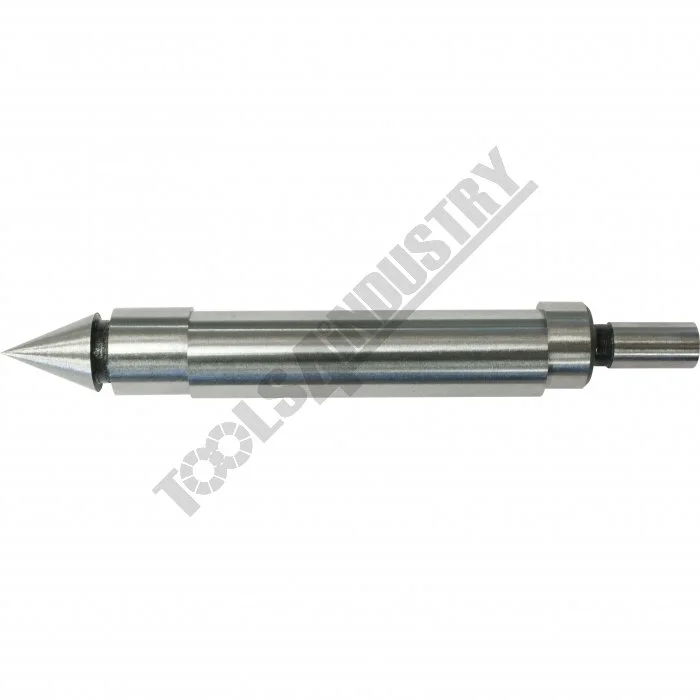

M692 Centre and Edge Finder — 9.52 × 76mm
Part No: M692 | Barcode: 9344195003004 | Brand: Hafco Metalmaster
Hardened tool-steel centre and edge finder for milling machines and lathe-mounted spindles. The precision-ground 5mm tip flicks sideways the moment it touches the work edge, giving 0.005mm pickup accuracy on bore centres, edges, grooves and shoulders.
9.52mm (3/8″) Shank
5mm Tip
76mm Long
0.005mm Accuracy
Hardened Tool Steel
Key Features & Benefits
- 0.005mm pickup accuracy — production-grade edge sensing without dial indicator setup time.
- Dual-end design — 5mm cylindrical tip for edge finding plus pointed end for centre marking.
- Hardened throughout — spring-loaded body and tip resist wear from repeated edge contact.
- 3/8″ (9.52mm) collet shank — fits the standard 3/8″ collet on most milling machines and tool-and-cutter grinders.
- Compact 76mm length — minimal stick-out keeps the spindle stiff during pickup.
When to Use This Finder
Spin the spindle at 800-1200 rpm and slowly traverse the work edge into the offset 5mm tip — the tip will run concentric until it touches, then snap sideways. Move back half the offset (2.5mm) and the spindle is on the edge. Use the pointed end pressed against a centre-punched mark to dial in a hole pattern.
Pro Tip: The most common error with edge finders is running them too slow — below 600 rpm the tip wobbles before it snaps and you’ll end up 0.05mm off. Stay between 800 and 1200 rpm for repeatable 0.005mm pickup.
Authorised Australian Dealer — This product is sourced through Australian distributor Hafco Australia (Hare & Forbes Machineryhouse) and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Spec | Value |
|---|---|
| Order Code ★ | M692 |
| Shank Diameter | ⌀9.52mm (3/8″) |
| Tip Diameter | ⌀5mm |
| Overall Length | 76mm |
| L1 | 21mm |
| L2 | 10mm |
| Accuracy | 0.005mm |
| Net Weight | 0.1 kg |
