Description
Hafco Metalmaster

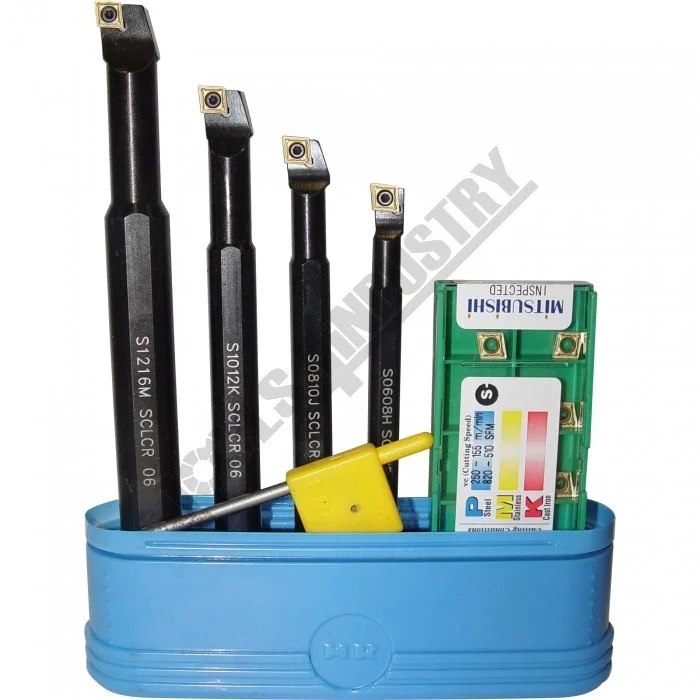

L430 Boring Bar Set — 4 Piece Carbide Insert
Part No: L430 | Barcode: 9344195014994 | Brand: Hafco Metalmaster
Four-bar indexable boring set covering small-bore work through to deeper / larger-diameter internal turning. Includes the 16mm bar that the L431 doesn’t — the right pick for the L689 TU-2506V and bigger lathes.
4 Pieces
8mm Boring Bar
10mm Boring Bar
12mm Boring Bar
16mm Boring Bar
Carbide Insert Type
Aluminium Case
Set Contents
8mm Boring Bar
10mm Boring Bar
12mm Boring Bar
16mm Boring Bar
4 × Carbide Inserts
Aluminium Storage Case
Key Features & Benefits
- Graduated bar diameters — step up bar size as bore depth increases to keep deflection under control.
- SCLCR-style indexable inserts — industry-standard CCMT inserts available off the shelf.
- Coolant-friendly geometry — chip-flute relief clears swarf from blind bores.
- Aluminium fitted case — dedicated cradles stop bars rolling and chipping the inserts.
When to Use This Set
Use the smallest bar that comfortably reaches the bore depth — the larger bars (12mm, 16mm) deflect less and give better surface finish on production work, while the 8mm bar is the only practical choice for bores under 12mm diameter. Bars ship with one carbide insert each; reorder a 10-pack of CCMT inserts to keep the set going.
Authorised Australian Dealer — This product is sourced through Australian distributor Hafco Australia (Hare & Forbes Machineryhouse) and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Order Code | Pieces | Bar Sizes | Insert Type |
|---|---|---|---|
| L431 | 3pc | 8, 10, 12mm | SCLCR / CCMT |
| L430 ★ | 4pc | 8, 10, 12, 16mm | SCLCR / CCMT |
★ You are viewing the highlighted variant. Other Hafco boring-bar sets are also available.
Browse our full range of metal lathes & tooling at Alltools Geelong.
