Carbitool
T503-503 Provincial Design Veining Bit — 1/8″ Cutting Diameter
Part No: T 503-503 | Barcode: 9314350001404 | Product Group: R582 | Discount Group: Z0912
The Carbitool T 503-503 is a solid carbide single-flute provincial design veining bit with a 90° included angle. Purpose-built for recess design veining in fine cabinet surfaces, it is designed for template routing to produce crisp, consistent decorative grooves.
Single Flute
Solid Carbide
1/8″ Cutting Dia
90° Included Angle
1/4″ Shank
Template Routing
Suitable For
Hardwood
Softwood
MDF
Cabinet Panels
Furniture Doors
Key Features & Benefits

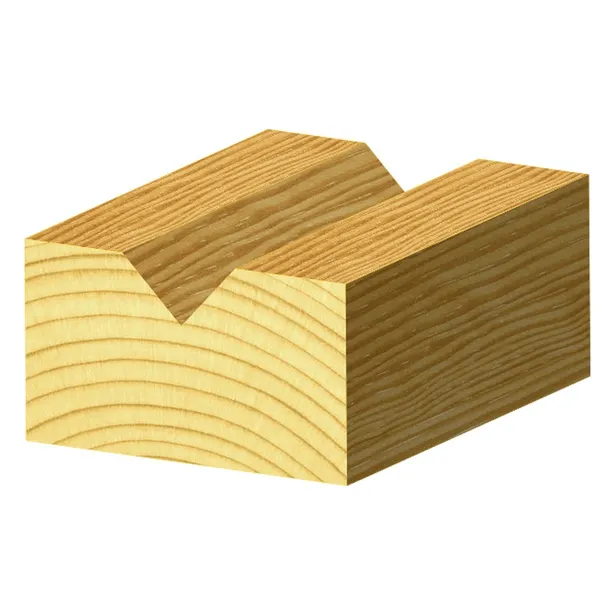

- 90° included angle — produces a sharp, clean V-groove profile suited to the traditional provincial design aesthetic used on cabinet doors and furniture panels.
- Solid carbide construction — maintains edge sharpness far longer than HSS alternatives, critical when running repetitive decorative veining passes across hardwood panels.
- Single flute design — maximises chip clearance in the narrow groove, reducing heat build-up and ensuring a cleaner wall finish.
- Designed for template routing — the fine 1/8″ (3.18mm) tip allows tight radii and intricate patterns to be followed precisely with a guide bushing and template.
- 1/4″ shank — fits standard handheld routers and router tables, making it accessible for both bench and production setups.
When to Use This Bit
Use the T 503-503 for fine decorative veining on cabinet door panels, furniture faces, and architectural timber components. The 1/8″ (3.18mm) cutting diameter is ideal when the design calls for a fine, delicate groove line. If a wider, more pronounced groove is required, step up to the T 503-505 (1/4″ cutting diameter) in the same series. Always use a template or guide bushing with this bit — its narrow tip is not suited to freehand routing.
Pro Tip: Run a light climb cut on the first pass to score the grain edges cleanly, then make a full conventional pass to clear the groove. This minimises tearout in figured hardwoods.

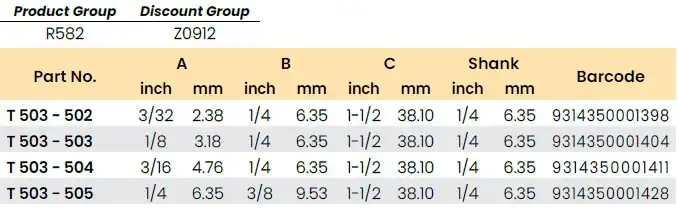

Product Specifications

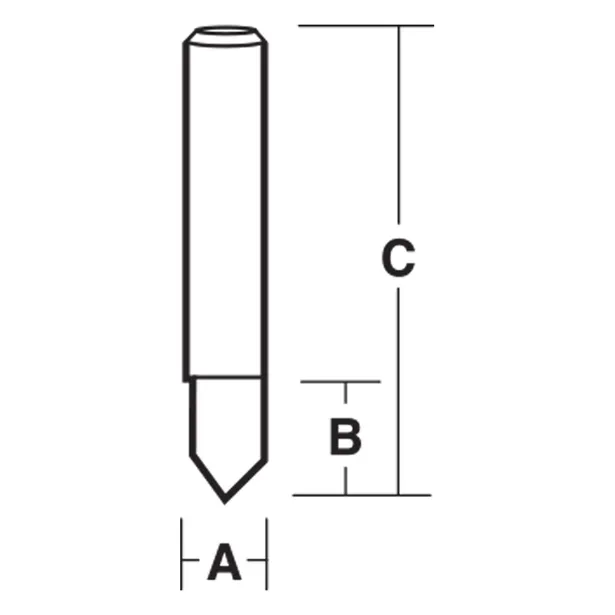

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|
| T 503-502 | 3/32 | 2.38 | 1/4 | 6.35 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350001398 |
| T 503-503 ★ | 1/8 | 3.18 | 1/4 | 6.35 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350001404 |
| T 503-504 | 3/16 | 4.76 | 1/4 | 6.35 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350001411 |
| T 503-505 | 1/4 | 6.35 | 3/8 | 9.53 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350001428 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
