Carbitool
T503-505 Provincial Design Veining Bit — 1/4″ Cutting Diameter
Part No: T 503-505 | Barcode: 9314350001428 | Product Group: R582 | Discount Group: Z0912

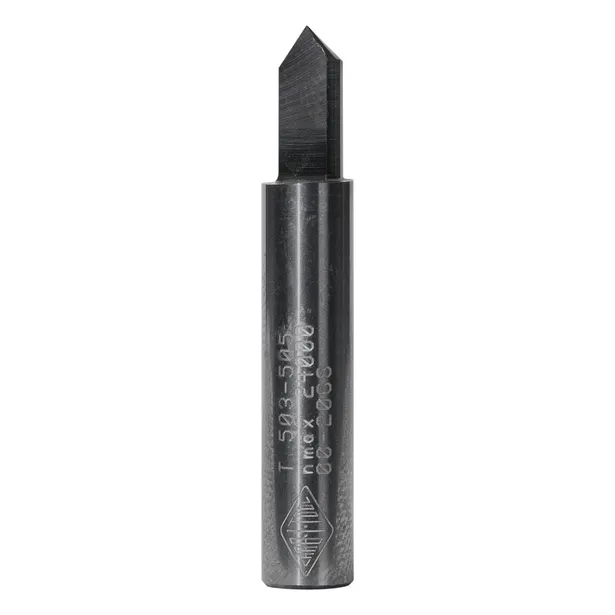

The Carbitool T 503-505 is a solid carbide single-flute provincial design veining bit with a 90° included angle. The largest in the R582 series at 1/4″ (6.35mm) cutting diameter, it produces a wider, more prominent decorative groove in cabinet panels and fine furniture surfaces.
Single Flute
Solid Carbide
1/4″ Cutting Dia
90° Included Angle
1/4″ Shank
Template Routing
Suitable For
Hardwood
Softwood
MDF
Cabinet Panels
Furniture Doors
Key Features & Benefits

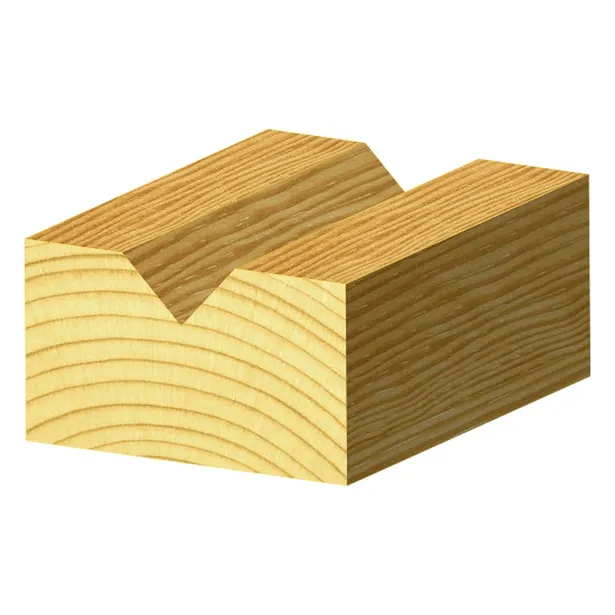

- 90° included angle — produces a sharp V-groove profile characteristic of the traditional provincial design aesthetic on cabinet doors and furniture panels.
- 1/4″ (6.35mm) cutting diameter — the widest in the provincial veining series, ideal when the design calls for a more prominent, clearly visible decorative line.
- Solid carbide construction — retains edge sharpness through long production runs on hardwood and MDF cabinet components.
- Single flute design — maximises chip clearance in the groove channel, keeping the cut clean and reducing heat in the cut zone.
- Designed for template routing — use with a guide bushing and template to reproduce consistent decorative patterns across multiple workpieces.
- 1/4″ shank — compatible with standard handheld routers and router tables.
When to Use This Bit
Reach for the T 503-505 when your provincial veining design calls for a wider, more pronounced groove — a feature that reads clearly on larger panel doors and drawer fronts where a finer groove might be lost in the scale. For a subtler line on smaller components, the T 503-503 (1/8″) offers a finer cut in the same series. Always pair with a guide bushing and MDF or ply template for repeatable results; this bit is not suited to freehand work.
Pro Tip: When veining across end grain sections or tight corners in figured timbers, reduce your feed rate and take two lighter passes rather than one full-depth pass. This preserves the crisp V-profile and prevents corner blowout.

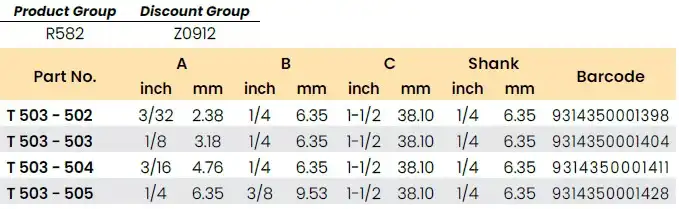

Product Specifications

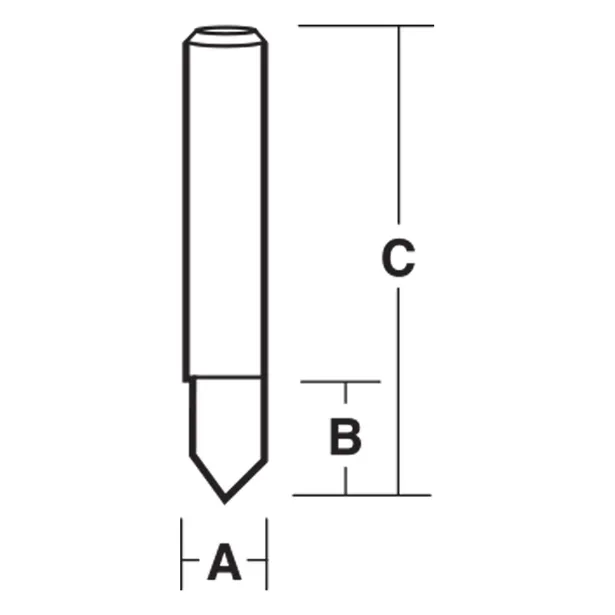

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|
| T 503-502 | 3/32 | 2.38 | 1/4 | 6.35 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350001398 |
| T 503-503 | 1/8 | 3.18 | 1/4 | 6.35 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350001404 |
| T 503-504 | 3/16 | 4.76 | 1/4 | 6.35 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350001411 |
| T 503-505 ★ | 1/4 | 6.35 | 3/8 | 9.53 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350001428 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
