Carbitool

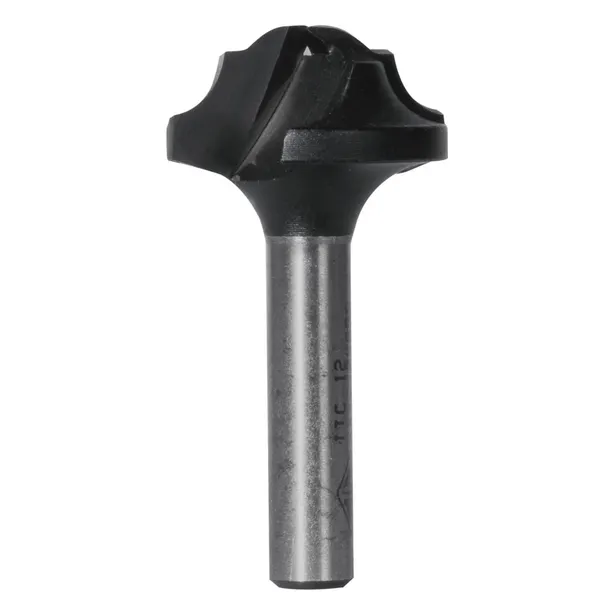

TTC16 1/2 Traditional Classical Router Bit — 2 Flute Carbide Tipped
Part No: TTC 16 1/2 | Barcode: 9314350005082 | Product Group: R599 | Discount Group: Z0904
The Carbitool TTC 16 1/2 is a 2-flute carbide-tipped Traditional Classical router bit with a stepped decorative profile. This is the largest profile in the TTC series (no bearing) with a 6.35mm radius and 1/2″ shank for stable, powerful cuts in router table setups. Suited to substantial moulding work on panel doors, cabinet components, and furniture edges.
2 Flute
Carbide Tipped
1/2″ Shank
Traditional Classical Profile
No Bearing
R6.35mm Radius
Suitable For
Hardwood
Softwood
MDF
Plywood
Veneered Board
Key Features & Benefits
- Large Traditional Classical Profile — the R6.35mm radius produces a full, substantial moulding step suited to wider timber rails, stiles, and architrave-scale work.
- 1/2″ Shank — the heavy 1/2″ shank provides maximum rigidity for this larger cutter, reducing vibration and ensuring a clean, chatter-free finish at the full profile depth.
- 2-Flute Carbide-Tipped Construction — long service life in hardwoods and MDF; carbide tips maintain sharpness significantly longer than HSS.
- No Bearing — Router Table Use — run against a fence for precise, repeatable moulding on long workpieces; ideal for production runs.
When to Use This Bit
The TTC 16 1/2 is the go-to choice when you need a larger, bolder traditional classical moulding profile — suited to heavier timber such as 42mm rails, wider architraves, and mantelpiece components. Run it on a router table with a fence for consistent, clean results. For the equivalent profile with a ball bearing guide (for template work or arch routing), choose the TTC 16 B 1/2.
Pro Tip: With larger profile bits like this one, take at least two passes: a roughing cut at half depth, then a finishing pass at full depth. This reduces load on the bit and gives a much cleaner profile in hardwoods.

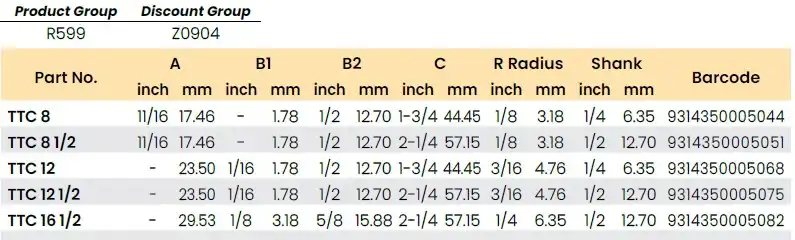

Product Specifications

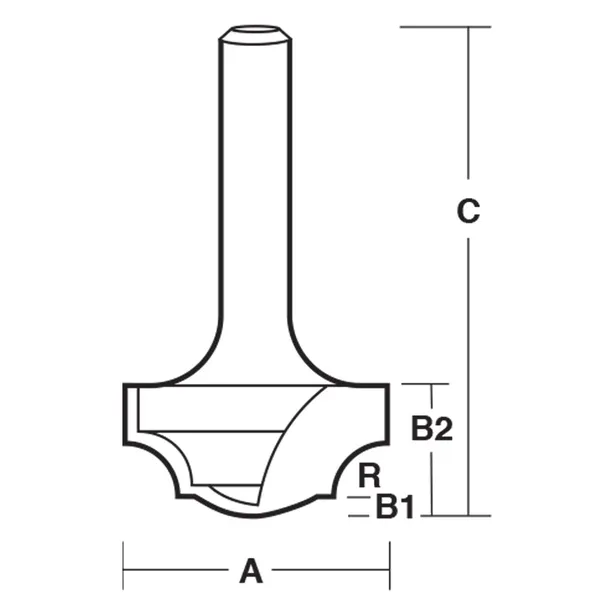

| Part No. | A (Cutting Dia.) inch | A mm | B1 mm | B2 mm | C (Overall Length) inch | C mm | R (Radius) mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|
| TTC 8 | 11/16 | 17.46 | 1.78 | 12.70 | 1-3/4 | 44.45 | 3.18 | 1/4 | 6.35 | 9314350005044 |
| TTC 8 1/2 | 11/16 | 17.46 | 1.78 | 12.70 | 2-1/4 | 57.15 | 3.18 | 1/2 | 12.70 | 9314350005051 |
| TTC 12 | — | 23.50 | 1.78 | 12.70 | 1-3/4 | 44.45 | 4.76 | 1/4 | 6.35 | 9314350005068 |
| TTC 12 1/2 | — | 23.50 | 1.78 | 12.70 | 2-1/4 | 57.15 | 4.76 | 1/2 | 12.70 | 9314350005075 |
| TTC 16 1/2 ★ | — | 29.53 | 3.18 | 15.88 | 2-1/4 | 57.15 | 6.35 | 1/2 | 12.70 | 9314350005082 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
