Carbitool
TTC 16 B Traditional Classical Router Bit with Ball Bearing — 1-1/2″ Diameter
Part No: TTC 16 B | Barcode: 9314350001886 | Product Group: R634 | Discount Group: Z0904

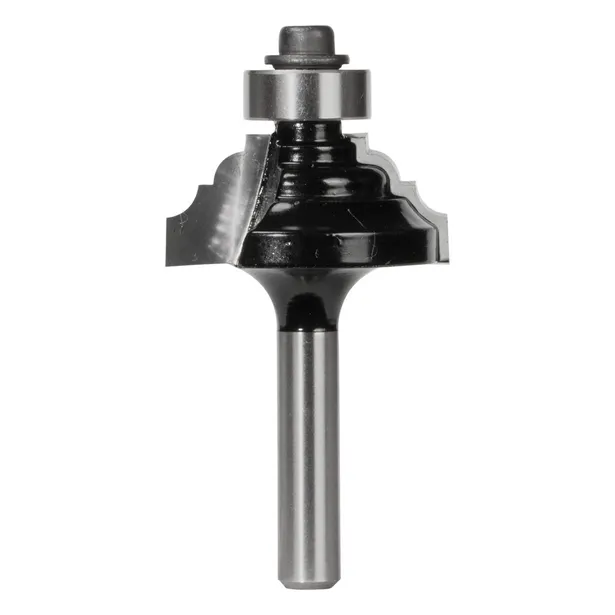

The Carbitool TTC 16 B is a 2-flute carbide-tipped Traditional Classical router bit with ball bearing, featuring the largest profile in the bearing series at 1-1/2″ cutting diameter and R6.35mm radius. Produces a bold, full-scale traditional moulding for heavier panel doors, architraves, and furniture components. 1/4″ shank.
2 Flute
Carbide Tipped
Ball Bearing Guide
1/4″ Shank
1-1/2″ Cutting Diameter
R6.35mm Radius
Suitable For
Hardwood
Softwood
MDF
Plywood
Veneered Board
Key Features & Benefits

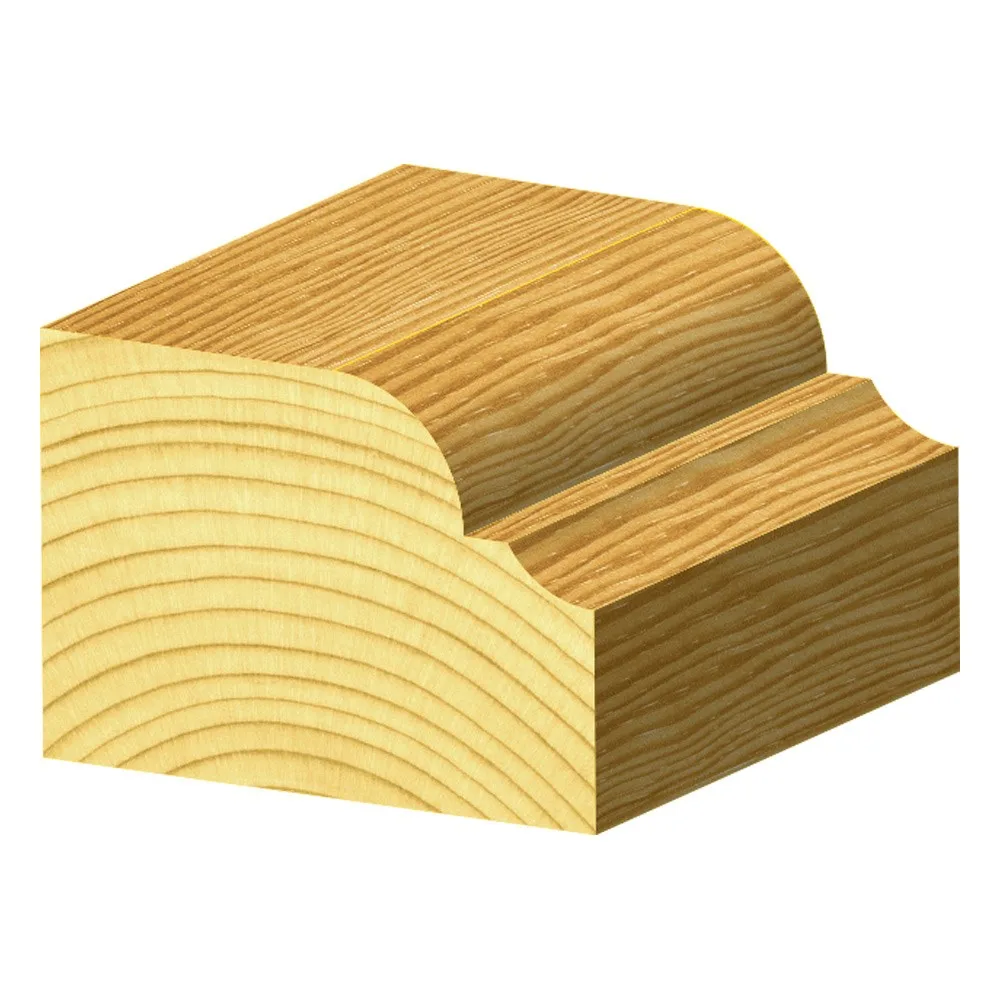

- Large-Scale Traditional Classical Profile — the R6.35mm radius produces a bold, prominent moulding suited to wider stiles, substantial architraves, and furniture pieces where a full profile is needed.
- Ball Bearing Guide (TB11) — rides the workpiece edge for freehand edge routing including curved or arched panel shapes.
- Bearing Swappable for Profile Variation — swap to TB9 to expose the bottom corner for a top-and-bottom bead profile; TB11 gives the clean classical form.
- 2-Flute Carbide-Tipped — handles demanding cuts in hardwood and MDF without tip wear.
When to Use This Bit
Choose the TTC 16 B when you need a bold, full-scale traditional classical profile — particularly on wider cabinet or furniture components (70mm+ stiles and rails) where the larger radius looks proportionally correct. The 1/4″ shank suits standard router setups; for heavier work or deeper cuts in hardwood, consider the TTC 16 B 1/2 instead.
Pro Tip: Larger profile bits produce more lateral cutting force. Ensure your workpiece is firmly clamped or against a backer fence to prevent movement mid-cut, and take multiple passes for best results in dense hardwoods.

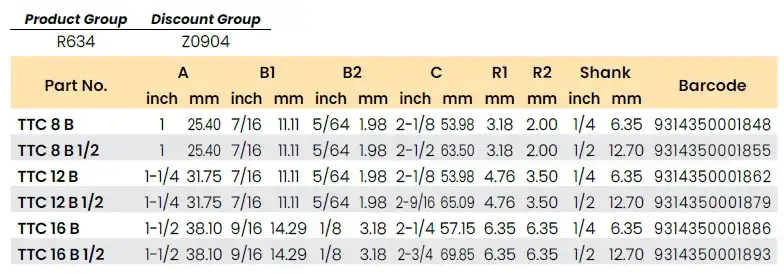

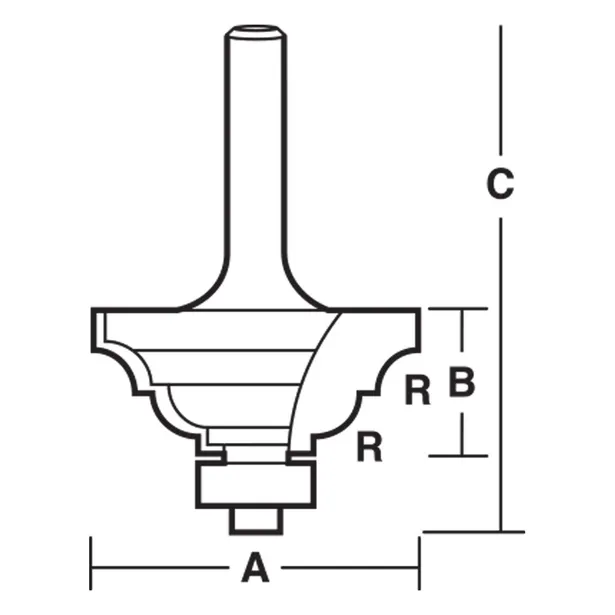

| Part No. | A inch | A mm | B1 inch | B1 mm | B2 inch | B2 mm | C inch | C mm | R1 mm | R2 mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TTC 8 B | 1 | 25.40 | 7/16 | 11.11 | 5/64 | 1.98 | 2-1/8 | 53.98 | 3.18 | 2.00 | 1/4 | 6.35 | 9314350001848 |
| TTC 8 B 1/2 | 1 | 25.40 | 7/16 | 11.11 | 5/64 | 1.98 | 2-1/2 | 63.50 | 3.18 | 2.00 | 1/2 | 12.70 | 9314350001855 |
| TTC 12 B | 1-1/4 | 31.75 | 7/16 | 11.11 | 5/64 | 1.98 | 2-1/8 | 53.98 | 4.76 | 3.50 | 1/4 | 6.35 | 9314350001862 |
| TTC 12 B 1/2 | 1-1/4 | 31.75 | 7/16 | 11.11 | 5/64 | 1.98 | 2-9/16 | 65.09 | 4.76 | 3.50 | 1/2 | 12.70 | 9314350001869 |
| TTC 16 B ★ | 1-1/2 | 38.10 | 9/16 | 14.29 | 1/8 | 3.18 | 2-1/4 | 57.15 | 6.35 | 6.35 | 1/4 | 6.35 | 9314350001886 |
| TTC 16 B 1/2 | 1-1/2 | 38.10 | 9/16 | 14.29 | 1/8 | 3.18 | 2-3/4 | 69.85 | 6.35 | 6.35 | 1/2 | 12.70 | 9314350001893 |
★ You are viewing the highlighted variant. Other sizes in this series are also available. Replacement bearing TB11.
