Carbitool
TTC 8 B Traditional Classical Router Bit with Ball Bearing — 1″ Diameter
Part No: TTC 8 B | Barcode: 9314350001848 | Product Group: R634 | Discount Group: Z0904

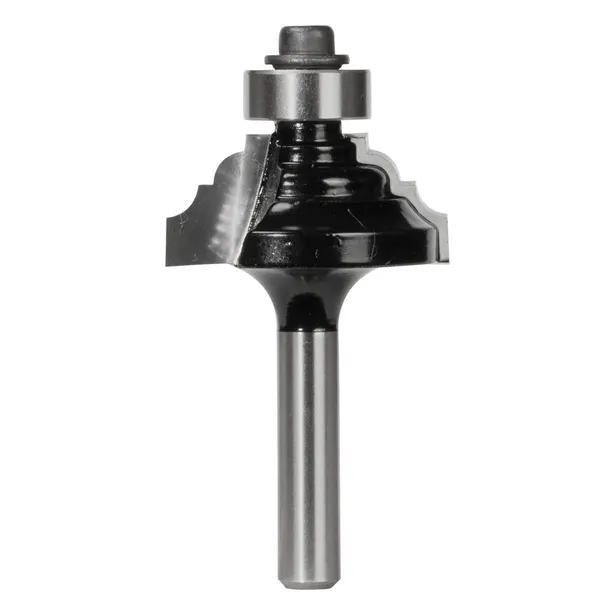

The Carbitool TTC 8 B is a 2-flute carbide-tipped Traditional Classical router bit with an integrated TB11 ball bearing guide. The bearing allows freehand edge routing and arch-shaped panel door work without a fence. Features a R3.18mm top radius producing the signature traditional stepped moulding profile. 1/4″ shank.
2 Flute
Carbide Tipped
Ball Bearing Guide
1/4″ Shank
1″ Cutting Diameter
R3.18mm Radius
Suitable For
Hardwood
Softwood
MDF
Plywood
Veneered Board
Key Features & Benefits
- Ball Bearing Guide (TB11) — rides along the workpiece edge or template, allowing safe freehand edge routing and curved profile work such as arched panel door rails.

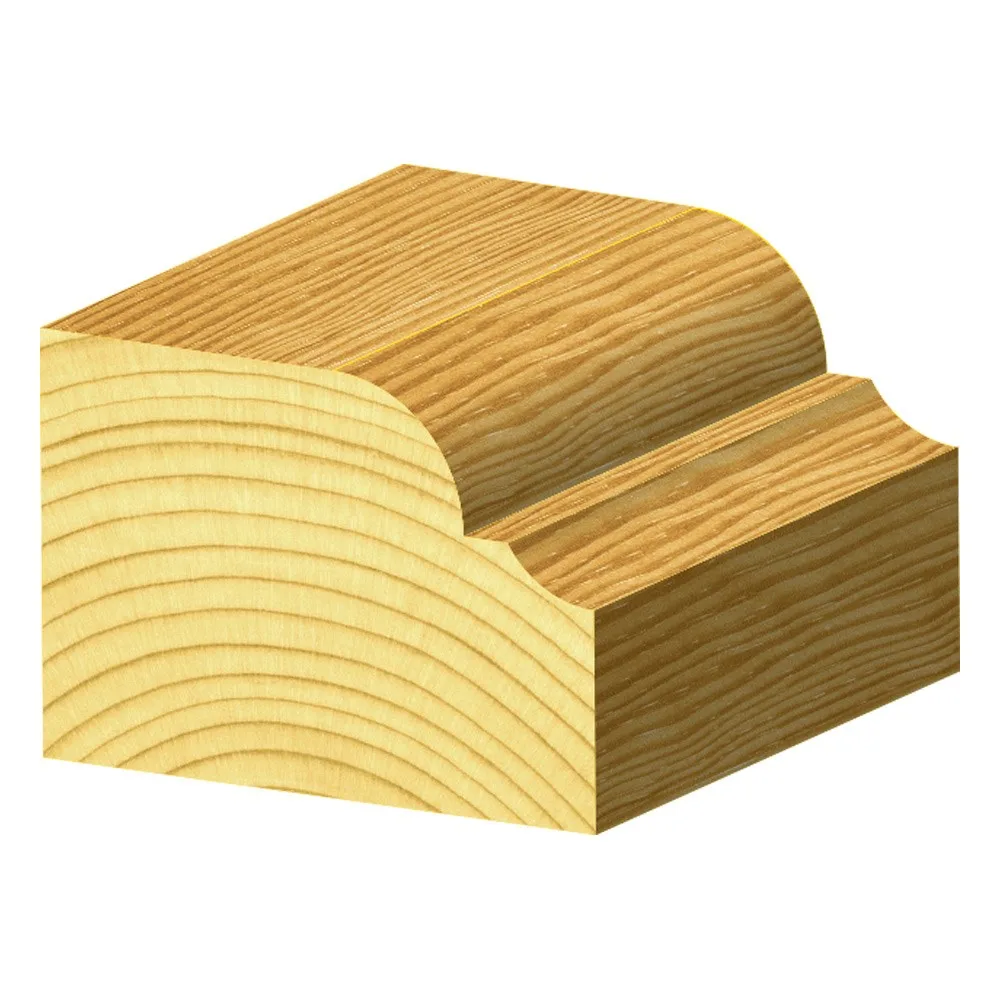

- Traditional Classical Profile — the stepped form with large top radius and small bottom detail is the defining profile of traditional style cabinetry and panel doors.
- Profile Versatility — use the TB9 bearing to expose the bottom corner and produce a top-and-bottom bead; use TB11 to exclude the bottom bead for a cleaner classical profile.
- 2-Flute Carbide-Tipped — durable and sharp; handles long runs in hardwood without the tip wear associated with HSS bits.
When to Use This Bit
Use the TTC 8 B when routing traditional classical mouldings on curved or arched panel door rails where a fence cannot be used. The ball bearing rides the workpiece edge, keeping the profile consistent even on complex shapes. For straight moulding runs where a fence can be used, the TTC 8 (no bearing) is a more economical option. For heavier stock requiring a 1/2″ shank, choose TTC 8 B 1/2.
Pro Tip: Swap the included TB11 bearing for a smaller TB9 bearing to expose the bottom corner of the cutter — this creates a top-and-bottom bead variation of the same profile, giving you two distinct looks from one bit.

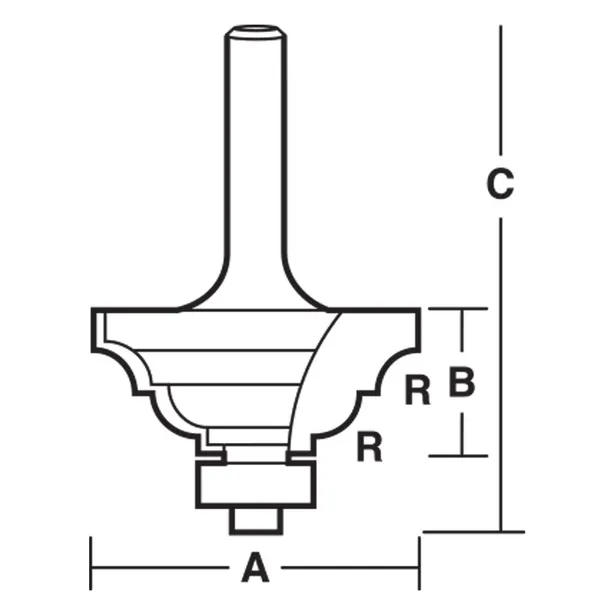

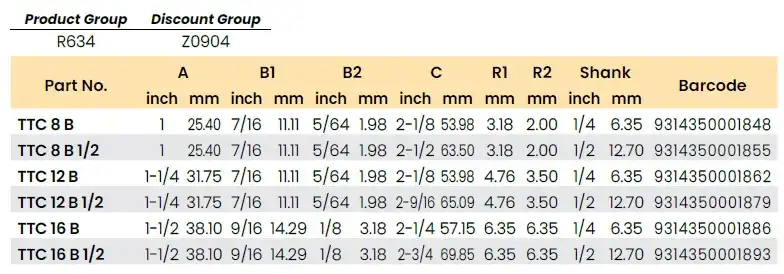

| Part No. | A (Cutting Dia.) inch | A mm | B1 inch | B1 mm | B2 inch | B2 mm | C (Overall Length) inch | C mm | R1 mm | R2 mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TTC 8 B ★ | 1 | 25.40 | 7/16 | 11.11 | 5/64 | 1.98 | 2-1/8 | 53.98 | 3.18 | 2.00 | 1/4 | 6.35 | 9314350001848 |
| TTC 8 B 1/2 | 1 | 25.40 | 7/16 | 11.11 | 5/64 | 1.98 | 2-1/2 | 63.50 | 3.18 | 2.00 | 1/2 | 12.70 | 9314350001855 |
| TTC 12 B | 1-1/4 | 31.75 | 7/16 | 11.11 | 5/64 | 1.98 | 2-1/8 | 53.98 | 4.76 | 3.50 | 1/4 | 6.35 | 9314350001862 |
| TTC 12 B 1/2 | 1-1/4 | 31.75 | 7/16 | 11.11 | 5/64 | 1.98 | 2-9/16 | 65.09 | 4.76 | 3.50 | 1/2 | 12.70 | 9314350001869 |
| TTC 16 B | 1-1/2 | 38.10 | 9/16 | 14.29 | 1/8 | 3.18 | 2-1/4 | 57.15 | 6.35 | 6.35 | 1/4 | 6.35 | 9314350001886 |
| TTC 16 B 1/2 | 1-1/2 | 38.10 | 9/16 | 14.29 | 1/8 | 3.18 | 2-3/4 | 69.85 | 6.35 | 6.35 | 1/2 | 12.70 | 9314350001893 |
★ You are viewing the highlighted variant. Other sizes in this series are also available. Replacement bearing TB11 — see bearings section.
