Carbitool

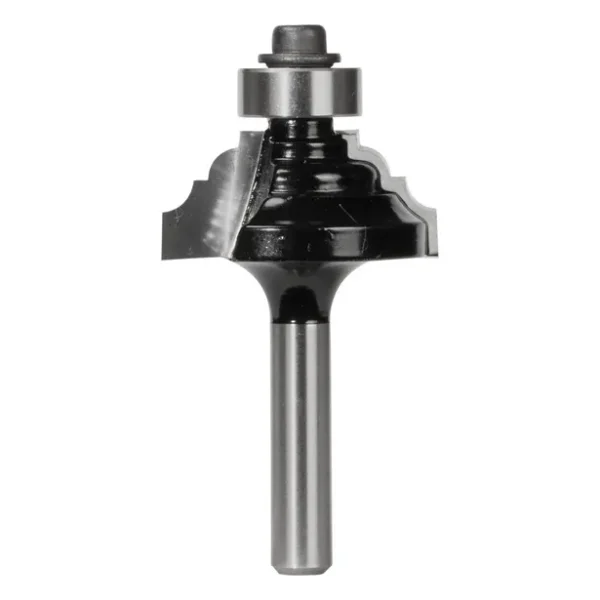

TTC 12 B Traditional Classical Router Bit with Ball Bearing — 1-1/4″ Diameter
Part No: TTC 12 B | Barcode: 9314350001862 | Product Group: R634 | Discount Group: Z0904
The Carbitool TTC 12 B is a 2-flute carbide-tipped Traditional Classical router bit with a TB11 ball bearing guide. The 1-1/4″ cutting diameter and R4.76mm radius produce a medium-scale stepped classical moulding, ideal for panel door stiles, rails, and furniture face frames. 1/4″ shank.
2 Flute
Carbide Tipped
Ball Bearing Guide
1/4″ Shank
1-1/4″ Cutting Diameter
R4.76mm Radius
Suitable For
Hardwood
Softwood
MDF
Plywood
Veneered Board
Key Features & Benefits
- Ball Bearing Guide (TB11) — follows the workpiece edge or template for accurate freehand edge routing, including arched panel door shapes.

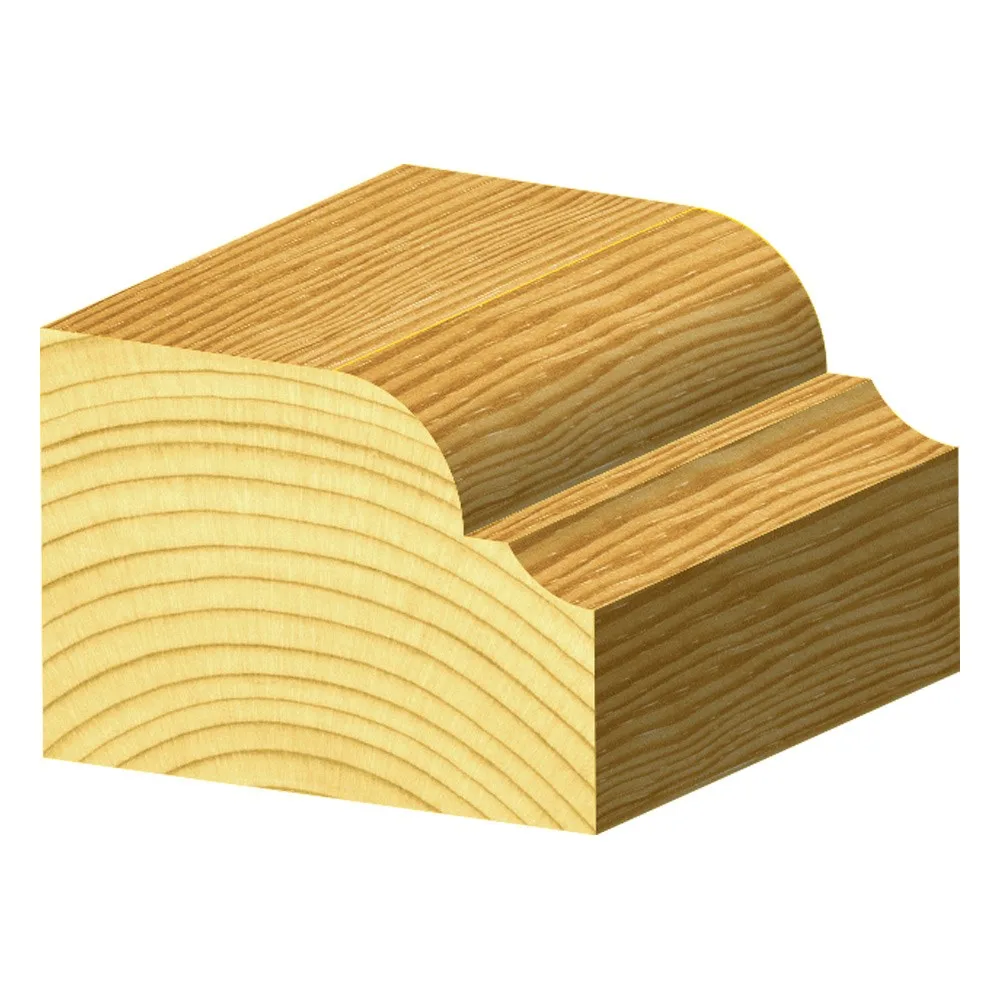

- Medium-Scale Classical Profile — the R4.76mm radius gives a well-proportioned traditional moulding suited to standard cabinet rails and stiles up to about 70mm wide.
- Bearing Swappable — fit a TB9 bearing to expose the bottom corner and add a lower bead; TB11 gives the clean single-bead classical profile.
- 2-Flute Carbide-Tipped — long service life across hardwood, softwood, and MDF.
When to Use This Bit
The TTC 12 B suits standard panel door and cabinet moulding work where the workpiece is too curved or irregular for a fence. At 1-1/4″ diameter it handles the medium-scale profile found on most domestic cabinetry. For larger profiles on heavier stock, step up to the TTC 16 B (1/4″ shank) or TTC 12 B 1/2 (1/2″ shank). For fence-only straight-line work, the TTC 12 (no bearing) is a cost-effective alternative.
Pro Tip: When routing panel door arches, clamp a hardboard template to your workpiece and let the bearing ride the template edge — this gives perfectly consistent profiles on every door regardless of the arch shape.

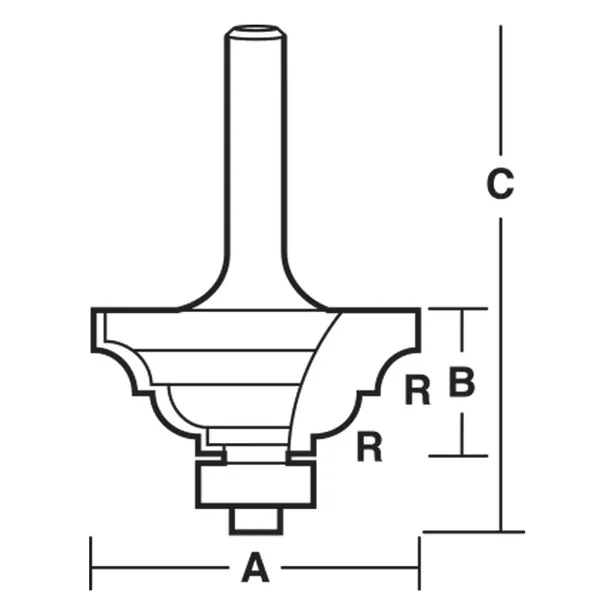

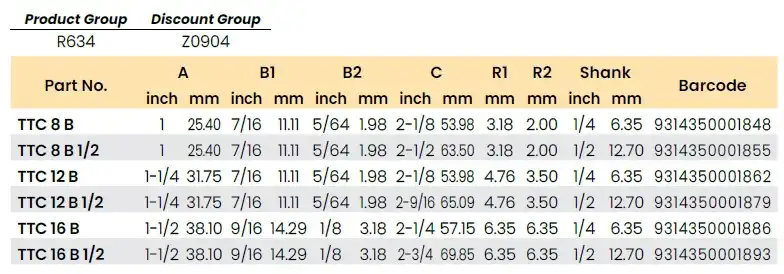

| Part No. | A inch | A mm | B1 inch | B1 mm | B2 inch | B2 mm | C inch | C mm | R1 mm | R2 mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TTC 8 B | 1 | 25.40 | 7/16 | 11.11 | 5/64 | 1.98 | 2-1/8 | 53.98 | 3.18 | 2.00 | 1/4 | 6.35 | 9314350001848 |
| TTC 8 B 1/2 | 1 | 25.40 | 7/16 | 11.11 | 5/64 | 1.98 | 2-1/2 | 63.50 | 3.18 | 2.00 | 1/2 | 12.70 | 9314350001855 |
| TTC 12 B ★ | 1-1/4 | 31.75 | 7/16 | 11.11 | 5/64 | 1.98 | 2-1/8 | 53.98 | 4.76 | 3.50 | 1/4 | 6.35 | 9314350001862 |
| TTC 12 B 1/2 | 1-1/4 | 31.75 | 7/16 | 11.11 | 5/64 | 1.98 | 2-9/16 | 65.09 | 4.76 | 3.50 | 1/2 | 12.70 | 9314350001869 |
| TTC 16 B | 1-1/2 | 38.10 | 9/16 | 14.29 | 1/8 | 3.18 | 2-1/4 | 57.15 | 6.35 | 6.35 | 1/4 | 6.35 | 9314350001886 |
| TTC 16 B 1/2 | 1-1/2 | 38.10 | 9/16 | 14.29 | 1/8 | 3.18 | 2-3/4 | 69.85 | 6.35 | 6.35 | 1/2 | 12.70 | 9314350001893 |
★ You are viewing the highlighted variant. Other sizes in this series are also available. Replacement bearing TB11.
