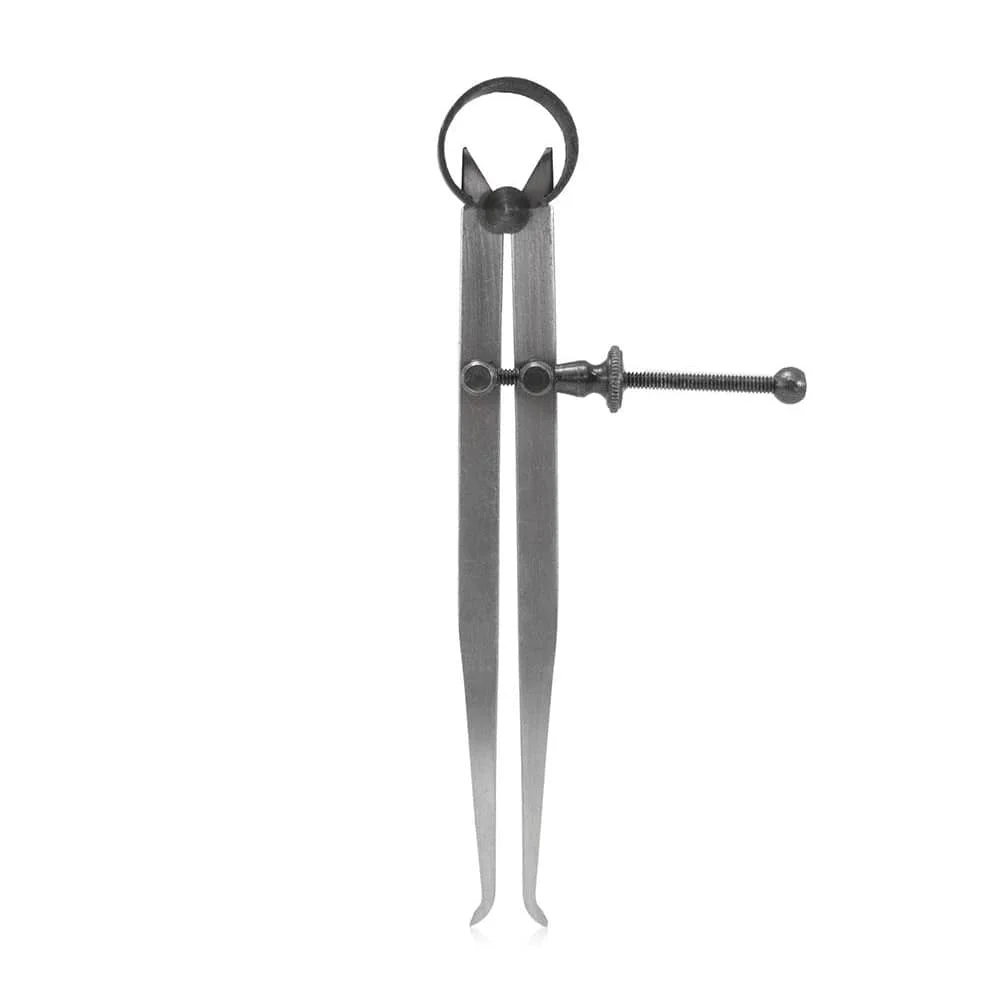

Intech Inside Spring Caliper — 150mm (6″)
Part No: PRSCI150 | Barcode: 9333608005117 | Series: Intech Spring Calipers — Inside
Intech’s PRSCI inside spring caliper is purpose-built for measuring internal diameters — bores, cylinders, tube IDs and tapped holes. The legs bow outwards to contact the inside wall, and the spring joint holds the setting cleanly as you transfer the dimension to a rule or micrometer outside the hole.
150mm Legs
Fabricated Steel
Spring Joint
Screw Adjustment
Bowed Inside Legs
Compatible Work
Bores & Cylinders
Tube ID
Tapped Holes
Housings & Castings
General Engineering
Key Features & Benefits
- Bowed inside legs — shaped to reach into and around the inside wall of a bore so contact points sit true at the diameter, not on the shoulder.
- Spring-joint precision setting — the spring returns the legs to the set width when released, so you can re-check multiple bores against the same reference without re-setting.
- Large fulcrum bearing surface — prevents sideways deflection when you rock the caliper through the bore looking for the true diameter at max width.
- Fabricated-steel construction — strong, rigid legs that won’t flex as you probe deep into engine blocks or hydraulic cylinders.
- Fine adjustment screw — dial in the exact dimension to tenths of a millimetre and transfer cleanly to a micrometer for reading.
When to Use the PRSCI150
Reach for the PRSCI150 150mm inside caliper when you need to measure or transfer an internal diameter — cylinder bores, valve seats, hydraulic bores, tube IDs, or large tapped holes. The 150mm size is the general workshop inside caliper — enough reach for most engine and fabrication bores. For tight small bores use the 100mm; for larger castings step up to 250mm or 300mm.
Pro Tip: To find the true diameter in a bore, gently rock the caliper side-to-side and in-and-out until it just drags rather than slides freely — that’s the maximum width of the bore at the contact plane. Then transfer to a micrometer for the reading. Pressing too hard spreads the legs and gives a false over-size reading.
Product Specifications
| Part No. | Leg Length | Imperial | Barcode |
|---|---|---|---|
| PRSCI100 | 100mm | 4″ | 9333608005100 |
| PRSCI150 ★ | 150mm | 6″ | 9333608005117 |
| PRSCI250 | 250mm | 10″ | 9333608005131 |
| PRSCI300 | 300mm | 12″ | 9333608005148 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
